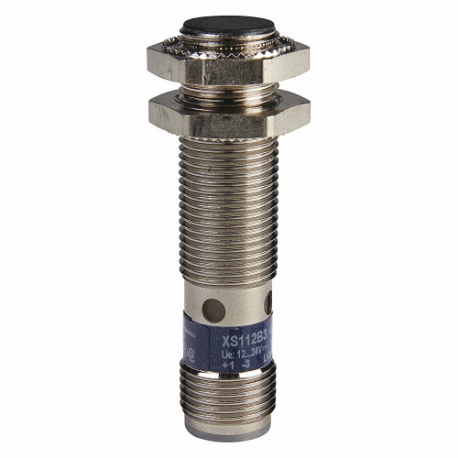

TELEMECANIQUE SENSORS XS112B3PAM12 Sensor Inductive
Item: CU6EUTModel: XS112B3PAM12Cross Ref: 48L937
7 In Stock
Ships within 2 days via
5.00% off
€134.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Inductive Sensor |
| Ac Supply Voltage | Not Rated |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Dc Supply Voltage Rating | 12-24V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Features | Overload Protection, Reverse Polarity Protection, Short Circuit Protection |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65, IP67 |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 4 mm |
| Min. Operating Temp. | -13°F |
| No. Of Pins | 4 |
| No. Of Wires | 3 |
| Output Circuit | PNP |
| Output Circuit Contact Form | No |
| Output Circuit Type | PNP |
| Overall Height | 50 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Dia. | 17 mm |
| Series | XS1 Series |
| Supply Voltage | 12-24V DC |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | No. Of Wires | Ip Rating | Sensor Dia. | Overall Height | Min. Operating Temp. | Max. Operating Temp. | Electrical Installation Type | Output Circuit Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XS108BLNAL2 | 3 | IP67 | 8 mm | 42 mm | -13°F | 158°F | Prewired Cable | No | €87.25 | |
| XS108BLNAM12 | 3 | IP67 | 8 mm | 61 mm | -13°F | 158°F | Direct Connector | No | €160.82 | |
| XS108BLPAL2 | 3 | IP67 | 8 mm | 42 mm | -13°F | 158°F | Prewired Cable | No | €92.69 | |
| XS108BLPAL5 | 3 | IP67 | 8 mm | 42 mm | -13°F | 158°F | Prewired Cable | No | €108.22 | |
| XS108BLPAM12 | 3 | IP67 | 8 mm | 62 mm | -13°F | 158°F | Direct Connector | No | €92.18 | |
| XS108BLPAM8 | 3 | IP67 | 8 mm | 50 mm | -13°F | 158°F | Direct Connector | No | €95.24 | |
| XS112BLNAL2 | 3 | IP67 | 12 mm | 44 mm | -13°F | 158°F | Prewired Cable | No | €89.69 |
