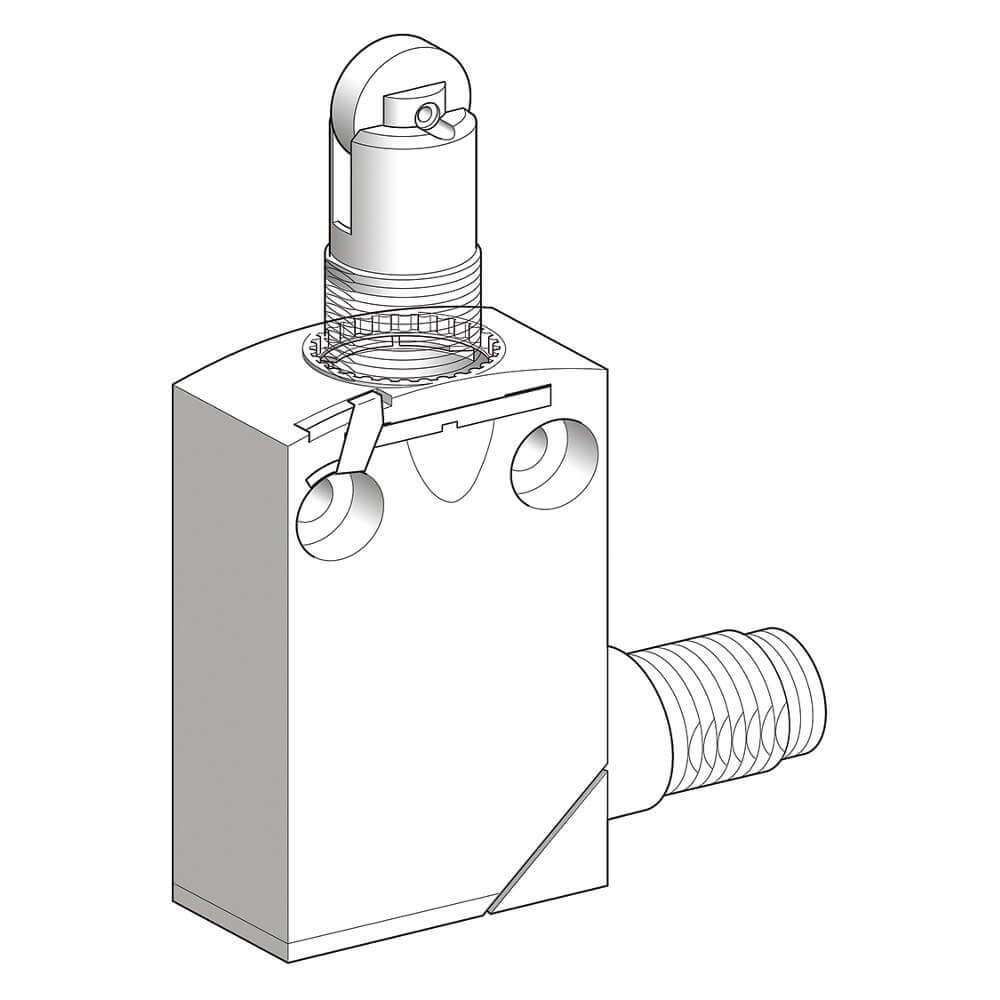

TELEMECANIQUE SENSORS XCMD21F2M12 Compact Limit Switch Enabled Top Actuator
Get it by Thursday, Dec 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compact Limit Switch |
| Ac Contact Rating | 3A @ 240V |
| Actuator Length | 1.42" |
| Actuator Location | Top |
| Actuator Style | Roller Plunger |
| Actuator Type | Roller plunger |
| Amps | 3A |
| Arm Material | Metal |
| Body Configuration | Plug In |
| Body Depth | 0.63" |
| Body Height | 2.05" |
| Body Material Type | Non-Metallic |
| Body Width | 1.18" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | SPDT |
| Dc Contact Rating | 3A @ 240V |
| Depth | 0.63" |
| Directional Movement | Linear |
| Display Qty | 1 |
| Electrical Connection | M12 4-Pin Connector |
| Height | 1.97" |
| Ip Rating | IP66, IP67, IP68 |
| Manufacturer Warranty Length | 18 Months |
| Mounting Hole Diameter - New | 4.2" |
| Mounting Hole Horizontal Center To Center Distance | 20 mm |
| Mounting Style | Stem, Surface |
| Movement | Horizontal |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P |
| Number Of Mounting Holes | 2 |
| Operating Force | 1.6 lbs. |
| Operating Force - Max. | 7N |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operating Torque - Maximum | 1.6 lbs.-in. |
| Overall Depth | 0.63" |
| Overall Height | 1.97" |
| Overall Width | 1.18" |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Roller Dia. | 0.42" |
| Roller Material | Steel |
| Roller Width | 0.14" |
| Series | XCMD Series |
| Travel Length | 0.31" |
| Width | 1.18" |
| Wiring Entry | M12 Connector, 4 Pin |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 8.8 |
| Ship width (cm) | 5.3 |
| HS code | 8536509055 |
| Country of Origin | ID |
