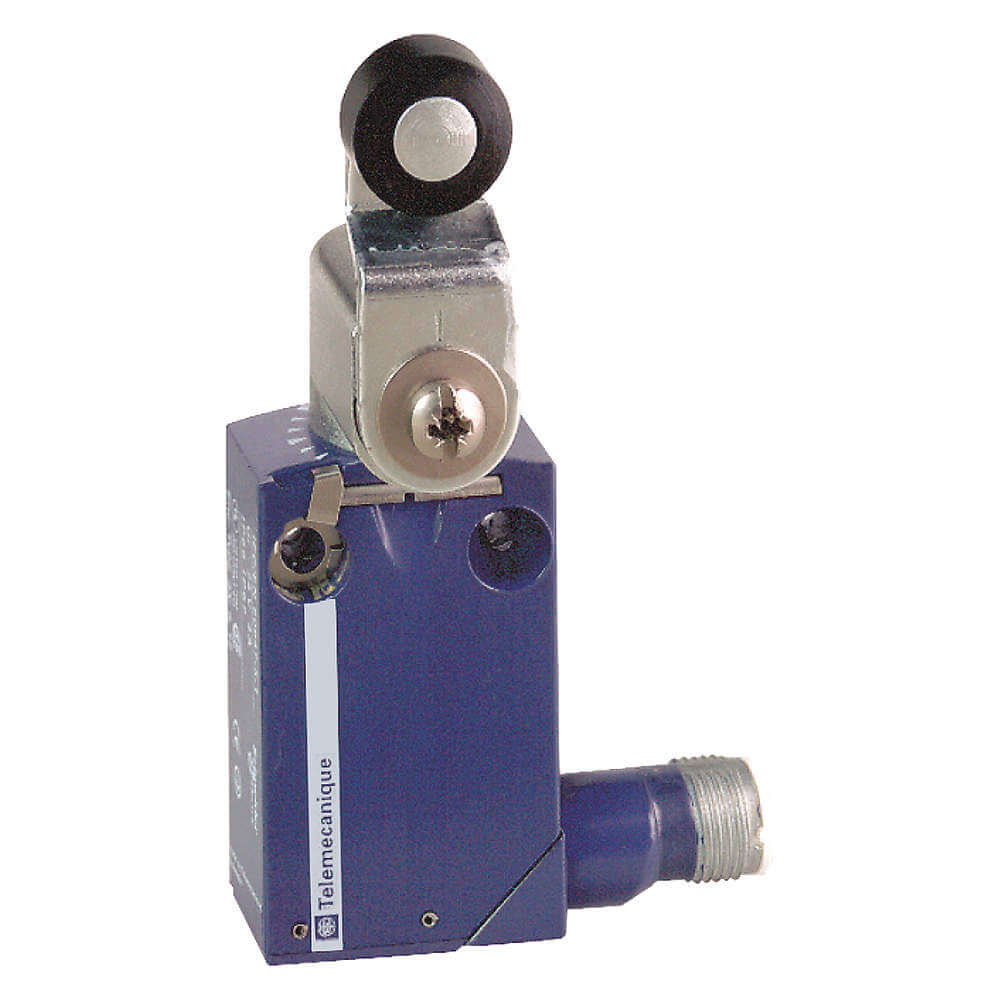

TELEMECANIQUE SENSORS XCMD2115M12 Compact Limit Switch Side Actuator 1no/1nc
Get it by Wednesday, Aug 19
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compact Limit Switch, Enabled |
| Ac Contact Rating | 3A @ 240V |
| Actuator Length | 1 9/25" |
| Actuator Location | Side |
| Actuator Style | Roller Lever Plunger |
| Actuator Type | Roller Lever |
| Amps | 3A |
| Arm Material | Metal |
| Body Configuration | Plug In |
| Body Depth | 0.63" |
| Body Height | 1.97" |
| Body Material | Zamac |
| Body Width | 1.18" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | SPDT |
| Dc Contact Rating | 3A @ 240V |
| Depth | 0.63" |
| Directional Movement | CCW/CW |
| Electrical Connection | 4-pin M12 Connector |
| Environments & Applications | Submersible |
| Height | 1.97" |
| Ip Rating | IP66, IP67, IP68 |
| Max. Operating Temp. | 158°F |
| Max. Operating Torque | 0.9 lbs.-in. |
| Min. Operating Temp. | -13°F |
| Mounting Hole Dia. | 0.17" |
| Mounting Hole Horizontal Center To Center Distance | 20 mm |
| Mounting Style | Surface |
| Movement | CW/CCW |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P |
| No. Of Mounting Holes | 2 |
| Operating Temp. | -13°F to +158°F |
| Overall Depth | 0.63" |
| Overall Height | 1.97" |
| Overall Width | 1.18" |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Roller Dia. | 0.63" |
| Roller Material | Thermoplastic |
| Roller Width | 0.23" |
| Series | XCMD Series |
| Total Travel | 90° |
| Travel Length | 90° |
| Width | 1.18" |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 5.3 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 9.5 |
| HS code | 8536509055 |
| Country of Origin | ID |
Product Variants
| Product | Model | Electrical Connection | Actuator Style | Boot Sealed Actuator | Mounting Style | Body Height | Travel Length | Amps | Directional Movement | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XCMD2102L2 | Removable Cable Connector | Roller Plunger | No Boot Included | Surface | 1.97" | 0.31" | 6A | Linear | €137.58 | |
 |
XCMD2106L1 | Removable Cable Connector | Cat Whisker, Wobble Stick | No Boot Included | Surface | 1.97" | 90° | 6A | Omnidirectional | €124.25 | |
 |
XCMD2110L5 | Removable Cable Connector | Plunger | No Boot Included | Surface | 1.97" | 1/5" | 6A | Linear | €158.98 | |
 |
XCMD21F2M12 | M12 4-Pin Connector | Roller Plunger | No Boot Included | Stem, Surface | 2.05" | 0.31" | 3A | Linear | - | RFQ
|
 |
XCMD21F0L2 | Removable Cable Connector | Plunger | No Boot Included | Stem, Surface | 2.05" | 1/5" | 6A | Linear | €146.95 | |
 |
XCMD2101L1 | Removable Cable Connector | No Lever, Rotary Head | No Boot Included | Surface | 1.97" | 90° | 6A | CCW/CW | - | RFQ
|
 |
XCMD2102L1 | Removable Cable Connector | Roller Plunger | No Boot Included | Surface | 1.97" | 0.31" | 6A | Linear | €116.86 |
