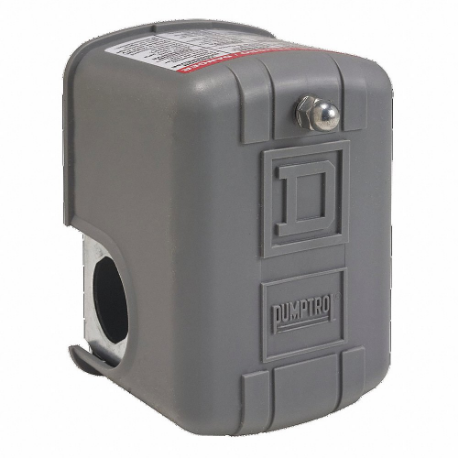

TELEMECANIQUE SENSORS 9013FSG52J33P Pressure Switch, 1/4 Inch Fnps/ Port, 50/70 Psi, 15 To 30 Psi, 10 To 80 Psi, Dpst, Std
Item: CU4GFCModel: 9013FSG52J33PCross Ref: 2PXZ6
7 In Stock
Ships within 2 days via
5.00% off
€65.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Switch |
| Ac Contact Rating | 10A @ 575V |
| Actuator Style | Diaphragm |
| Contact Form | 2NC |
| Display Qty | 1 |
| Factory Off Setting | 70 psi |
| Factory On Setting | 50 psi |
| Features | Pumptrol |
| Hp @ 1 Ph-240v | 2 hp |
| Hp @ 1 Phase-120v | 1 1/2 hp |
| Hp @ 1 Phase-240v | 2 hp |
| Hp @ 3 Phase-240v | 3 hp |
| Hp @ 3 Phase-480v | 1 hp |
| Max. Differential Pressure | 70 psi |
| Max. Media Temp. | 257°F |
| Max. Operating Temp. | 257°F |
| Max. Pressure | 80 psi |
| Min. Differential Pressure | 50 psi |
| Min. Media Temp. | -33°F |
| Min. Operating Temp. | -33°F |
| Min. Pressure | 5 psi |
| Nema Enclosure Rating | 1 |
| No. Of Pressure Connection Ports | 1 |
| Overall Depth | 3.76" |
| Overall Height | 3.71" |
| Overall Width | 2.78" |
| Pressure Connection Type | FNPS |
| Pressure Switch | 10 psi to 80 psi |
| Pressure Switch Action | Standard |
| Pressure Switch Differential | 15 psi to 30 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Factory On/off Setting | 50/70 psi |
| Pressure Switch Unloader | No |
| Product Type | Water Pump Switch |
| Series | 9013FS Series |
| Switch Function Configuration | Not Available |
| Temp. | -22°F to +257°F |
| Unloader | No Unloader Included |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Model | Overall Width | Overall Height | Temp. | Max. Pressure | Pressure Connection Type | Max. Differential Pressure | Min. Media Temp. | Min. Differential Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9013FSG2J20M1 | 3.1" | 2 4/5" | -22°F to +257°F | 65 psi | FNPS | 40 psi | -33°F | 20 psi | €70.70 | |
| 9013FSG2J20U | - | - | -22°F to +257°F | - | - | - | - | - | €52.20 | |
| 9013FSG2J21 | 2.78" | 2 4/5" | -22°F to +257°F | 65 psi | FNPS | 50 psi | -33°F | 30 psi | €55.24 | |
| 9013FSG2J21M1 | 3.1" | 2 4/5" | -22°F to +257°F | 65 psi | FNPS | 50 psi | -33°F | 30 psi | €79.75 | |
| 9013FSG2J21M4 | - | - | -22°F to +257°F | - | - | - | - | - | €78.00 | |
| 9013FSG2J24 | 2.78" | 2 4/5" | -22°F to +257°F | 65 psi | FNPS | 60 psi | -33°F | 40 psi | €60.05 | |
| 9013FSG2J24M4 | 3.1" | 2 4/5" | -22°F to +257°F | 65 psi | FNPS | 60 psi | -33°F | 40 psi | €116.98 |
