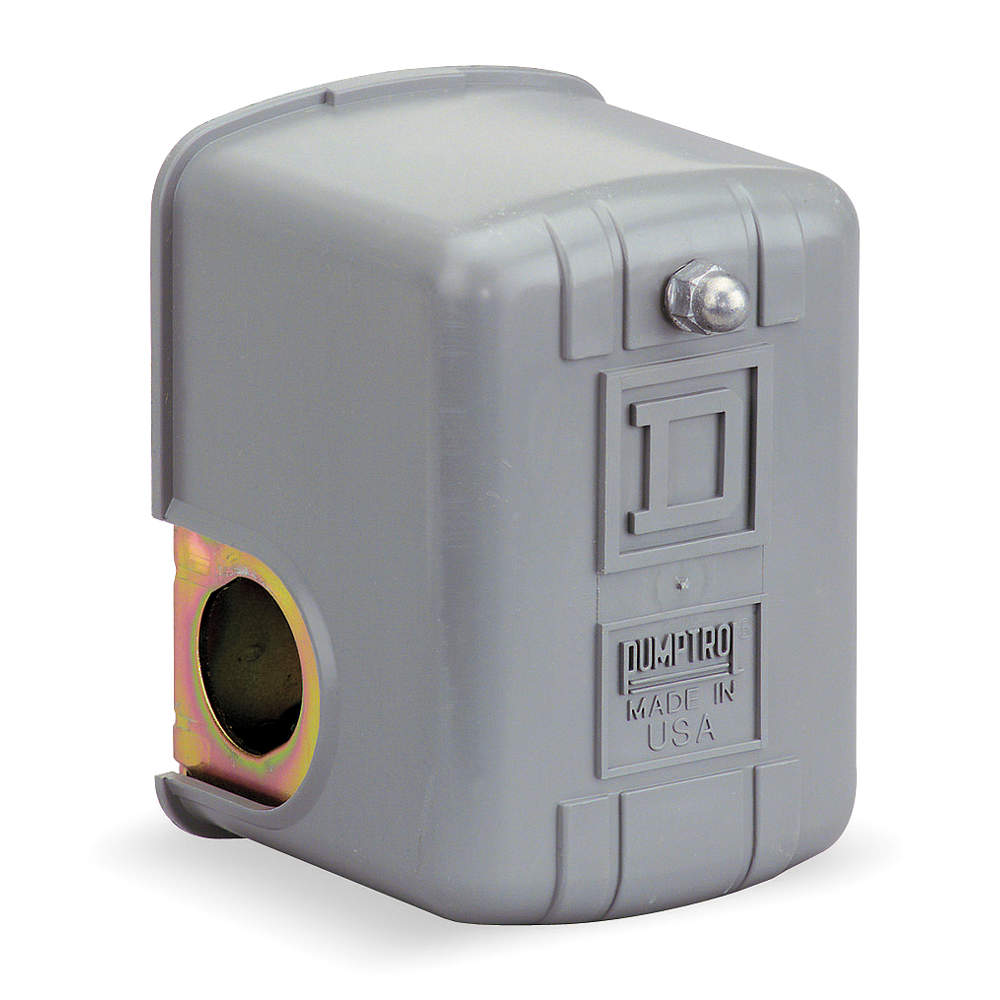

TELEMECANIQUE SENSORS 9013FSG2J24 Water Pump Switch, Adjustable Differential, 40 to 60 PSI, 1 HP

Square D 9013FSG2J24 pressure switch is used in water supply & distribution plants and the HVAC, agriculture and oil & gas industries for pressure sensing & controlling compressors, moulding presses, injection moulders and jet, submersible & reciprocating pumps.

Features:

• Square D 9013FSG2J24 pressure switch features screw clamp terminals for improved electrical connections and a 0.25-inch NPSF internal thread for enhanced fluid connections.
• This Schneider Electric switch is equipped with a diaphragm actuator that can be operated from any position.
• It comes with an adjustable differential scale to regulate the internal settings.
• This Pumptrol switch features a polypropylene enclosure for enhanced resistance to corrosive environments.
• It offers an electromechanical design to monitor and control pressure conditions for both industrial and end-user applications.
• This pressure switch can withstand power up to 3 horsepower at 240V in 3-phase configurations.

Frequently Asked Questions:

Q. How do I clean and maintain Square D 9013FSG2J24 pressure switch?

A.

• Power off the connected device to the pressure switch.
• Wear appropriate personal protective equipment (PPE).
• Inspect the pressure switch regularly for dirt, debris, or corrosion.
• Clean the exterior using a soft, dry cloth or brush.
• For thorough cleaning, dampen a cloth with mild soap and water, and wipe gently.
• Check pressure ports for blockages and use compressed air or a brush to clean.
• Inspect and clean exposed contacts using a brush or compressed air.
• Check seals and gaskets for wear or damage; replace if needed.

Q. How do I choose a pressure switch for my applications?

A.

• Define the pressure switch's role in your system.
• Identify required pressure levels.
• Ensure compatibility with fluid.
• Match voltage and current requirements.
• Consider operating conditions.
• Choose adjustable or fixed settings.
• Select suitable contact configuration.

Q. What safety precautions should I take while using this pressure switch?

A.

• Always disconnect power before handling or servicing the pressure switch.
• Allow only trained individuals to install, adjust or maintain the switch.
• Use the pressure switch within its specified temperature and humidity range.
• Ensure proper ventilation to prevent overheating of the switch.
• Verify that the pressure switch is suitable for the specific fluid or gas it will be exposed to.
• Do not exceed the maximum pressure ratings of the switch to prevent damage.
• Follow proper electrical wiring practices to avoid shocks or short circuits.
• Maintain the integrity of seals and gaskets to prevent leaks.
• Periodically check for wear, corrosion or damage and address issues promptly.
