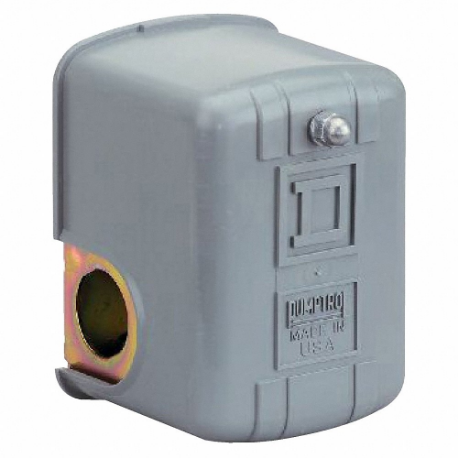

TELEMECANIQUE SENSORS 9013FSG2J24Q8 Pressure Switch, 575V AC, 1Hp, Port, 1/4 Inch Fnps, 30/50 Psi, 15 To 30 Psi, Dpst
Item: CU4GDZModel: 9013FSG2J24Q8Cross Ref: 48L715
7 In Stock
Ships within 2 days via
10.00% off
€83.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Switch |
| Actuator Style | Diaphragm |
| Contact Form | 2NC |
| Differential Pressure - Maximum | 60 psi |
| Differential Pressure - Minimum | 40 psi |
| Display Qty | 1 |
| Factory Off Setting | 60 psi |
| Factory On Setting | 40 psi |
| Features | Pumptrol |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 480v Ac | 1 hp |
| Hp @ 1 Phase - 120v | 1 1/2 hp |
| Hp @ 1 Phase - 240v | 2 hp |
| Hp @ 3 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 480v | 1 hp |
| Hp @ Single Phase - 120v Ac | 1 1/2 hp |
| Manufacturer Warranty Length | 18 Months |
| Media Temperature - Maximum | 257°F |
| Media Temperature - Minimum | -33°F |
| Nema Enclosure Rating | 1 |
| Number Of Ports | 1 |
| Number Of Pressure Connection Ports | 1 |
| Operating Temperature - Maximum | 257°F |
| Operating Temperature - Minimum | -33°F |
| Overall Depth | 3.76" |
| Overall Height | 2 4/5" |
| Overall Width | 2.78" |
| Pressure - Maximum | 65 psi |
| Pressure - Min. | 5 psi |
| Pressure Connection Type | FNPS |
| Pressure Switch Action Type | Standard |
| Pressure Switch Differential | 15 psi to 30 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Factory On/off Setting | 3 psi, 5 psi |
| Pressure Switch Port Size | 1/4" |
| Pressure Switch Port Type | FNPS |
| Pressure Switch Range | 20 psi to 65 psi |
| Pressure Switch Unloader | No |
| Product Type | Water Pump Switch |
| Series | 9013FS Series |
| Temp. Range | -33°F to +257°F |
| Unloader | No Unloader Included |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 9.55 |
| Ship width (cm) | 7.06 |
| Country of Origin | MX |
