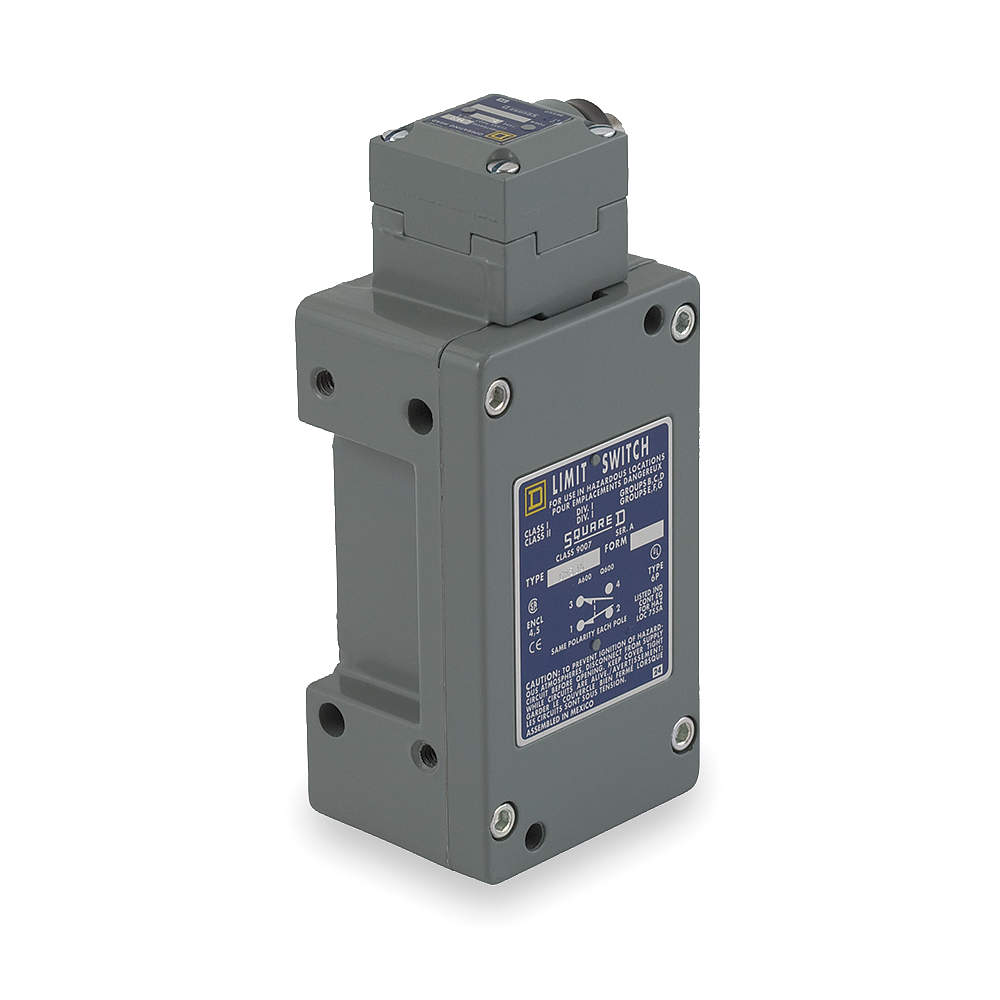

TELEMECANIQUE SENSORS 9007CR53G Heavy Duty Limit Switch Side Actuator 1no/1nc
Item: AF9JXCModel: 9007CR53GCross Ref: 2UYJ5
7 In Stock
Ships within 2 days via
5.00% off
€577.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heavy Duty Limit Switch |
| Ac Contact Rating | 10A @ 600V |
| Actuator Length | 0.61" |
| Actuator Location | Side |
| Actuator Style | Plunger |
| Body Depth | 2.08" |
| Body Height | 4.25" |
| Body Material | Aluminum |
| Body Material Type | Metallic |
| Body Width | 2.72" |
| Boot Sealed Actuator | No Boot Included |
| Certification | UL Class I Groups B, C, D And Class II Groups E, F, G |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 10A @ 600V |
| Depth | 2.08" |
| Directional Movement | Linear |
| Electrical Connection | Screw Clamp Terminals |
| Hazardous Location Specification | Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G |
| Height | 6.1" |
| Ip Rating | IP67 |
| Max. Operating Force | 4 lbf. |
| Max. Operating Temp. | 185°F |
| Min. Operating Temp. | -20°F |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Mounting Style | Surface |
| Movement | Horizontal |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 7, NEMA 9 |
| No. Of Mounting Holes | 2 |
| Operating Force | 3 lbs. |
| Operating Temp. | 0°F to +185°F |
| Overall Depth | 2.48" |
| Overall Height | 6.1" |
| Overall Width | 2 18/25" |
| Pre-travel | 0.08" |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | 9007CR Series |
| Travel Length | 1/4" |
| Width | 2 18/25" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 8.89 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Variants
| Product | Model | Actuator Style | Electrical Connection | Contact Form | Movement | Operating Force | Travel Length | Body Height | Body Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007CR53B2 | No Lever, Rotary Head | Screw Clamp Terminals | 1NO/1NC | CCW/CW | 4 lbs.-in. | - | 4 1/4" | 2 18/25" | €678.97 | |
 |
9007CR53D | Roller Plunger | Screw Clamp Terminals | 1NO/1NC | Horizontal | 4 lbs. | 1/4" | 4.25" | 2.72" | €665.00 | |
 |
9007CR61B2 | No Lever, Rotary Head | Screw Clamp Terminals | 2NO/2NC | CCW/CW | 4 lbs.-in. | - | 4 1/4" | 2 18/25" | €684.22 | |
|
9007CR53C | No Lever, Rotary Head | Screw Clamp Terminals | 1NO/1NC | CW/Maintained | 3 lbs.-in. | 90° | 4.25" | 2.72" | €656.95 | |
|
9007CR61C | No Lever, Rotary Head | Screw Clamp Terminals | 2NO/2NC | CW, Maintained | 3 lbs.-in. | 90° | 4.25" | 2.72" | €705.21 | |
|
9007CR53N2 | No Lever, Rotary Head | Screw Terminal | - | CW/CCW, Low Torque | - | 90° | - | - | €641.28 | |
 |
9007CR53F | Roller Plunger | Screw Clamp Terminals | 1NO/1NC | Vertical | 4 lbs. | 1/4" | 4.25" | 2.72" | €664.34 |
