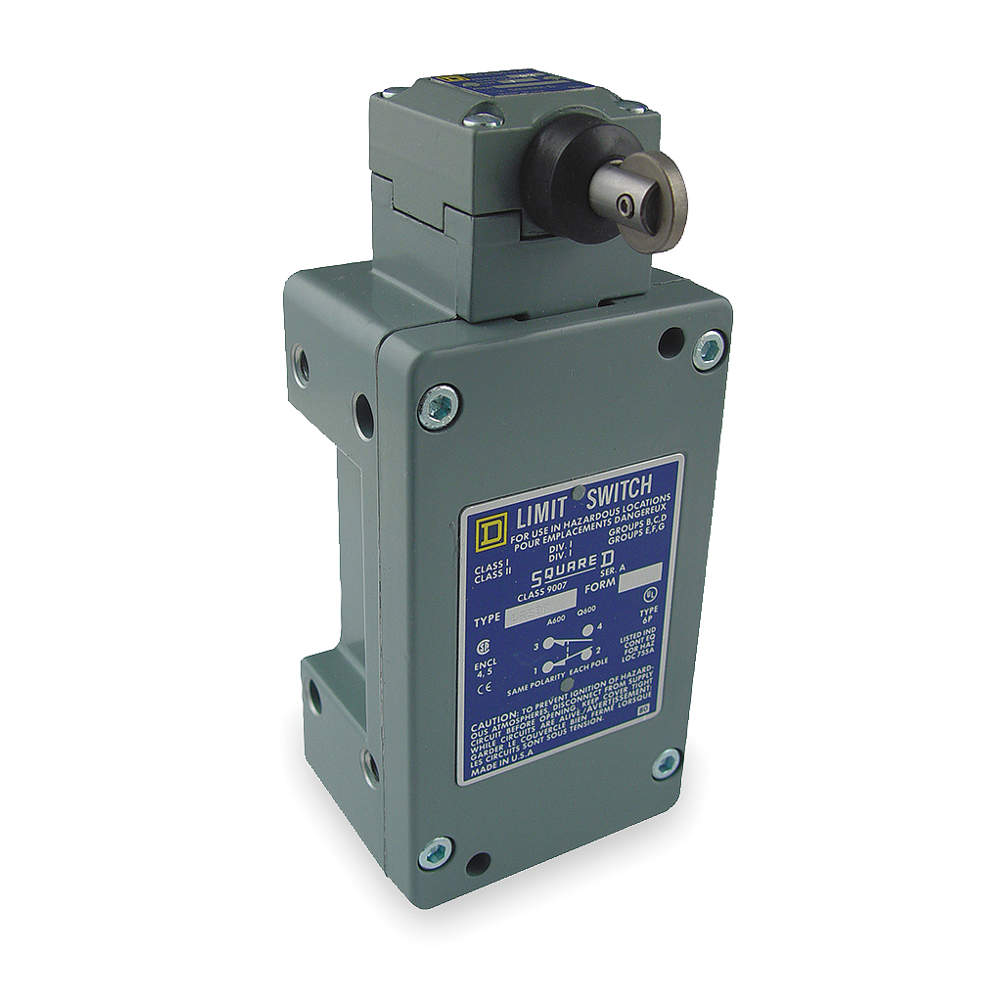

TELEMECANIQUE SENSORS 9007CR53F Heavy Duty Limit Switch Side Actuator 1no/1nc
Item: AF9JXAModel: 9007CR53FCross Ref: 2UYJ3
7 In Stock
Ships within 2 days via
5.00% off
€631.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heavy Duty Limit Switch |
| Ac Contact Rating | 10A @ 600V |
| Actuator Length | 1.08" |
| Actuator Location | Side |
| Actuator Style | Roller Plunger |
| Actuator Type | Roller plunger |
| Body Depth | 2.08" |
| Body Height | 4.25" |
| Body Material | Aluminum |
| Body Material Type | Metallic |
| Body Width | 2.72" |
| Boot Sealed Actuator | No Boot Included |
| Certification | UL Class I Groups B, C, D And Class II Groups E, F, G |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 10A @ 600V |
| Depth | 2.08" |
| Directional Movement | Linear |
| Display Qty | 1 |
| Electrical Connection | Screw Clamp Terminals |
| Hazardous Location Specification | Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G |
| Height | 6.1" |
| Ip Rating | IP67 |
| Max. Operating Force | 3 lbf. |
| Max. Operating Temp. | 185°F |
| Min. Operating Temp. | -20°F |
| Mounting Hole Dia.-new | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Mounting Style | Surface |
| Movement | Vertical |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 7, NEMA 9 |
| No. Of Mounting Holes | 2 |
| Operating Force | 4 lbs. |
| Operating Temp. | 0°F to +185°F |
| Overall Depth | 2.95" |
| Overall Height | 6.1" |
| Overall Width | 2 18/25" |
| Pre-travel | 0.08" |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Roller Dia. | 0.63" |
| Roller Material | Steel |
| Roller Width | 0.12" |
| Series | 9007CR Series |
| Travel Length | 1/4" |
| Width | 2 18/25" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 8.89 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Variants
| Product | Model | Electrical Connection | Body Width | Actuator Style | Actuator Location | Operating Temp. | Movement | Operating Force | Boot Sealed Actuator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007CR53B2 | Screw Clamp Terminals | 2 18/25" | No Lever, Rotary Head | Side | -20°F to +185°F | CCW/CW | 4 lbs.-in. | No | €678.97 | |
 |
9007CR53D | Screw Clamp Terminals | 2.72" | Roller Plunger | Top | 0°F to +185°F | Horizontal | 4 lbs. | No Boot Included | €665.00 | |
 |
9007CR61B2 | Screw Clamp Terminals | 2 18/25" | No Lever, Rotary Head | Side | -20°F to +185°F | CCW/CW | 4 lbs.-in. | No | €684.22 | |
|
9007CR53C | Screw Clamp Terminals | 2.72" | No Lever, Rotary Head | Side | -20°F to +185°F | CW/Maintained | 3 lbs.-in. | No Boot Included | €656.95 | |
|
9007CR61C | Screw Clamp Terminals | 2.72" | No Lever, Rotary Head | Side | -20°F to +185°F | CW, Maintained | 3 lbs.-in. | No Boot Included | €705.21 | |
|
9007CR53N2 | Screw Terminal | - | No Lever, Rotary Head | Side | -20°F to +185°F | CW/CCW, Low Torque | - | - | €641.28 | |
 |
9007CR53G | Screw Clamp Terminals | 2.72" | Plunger | Side | 0°F to +185°F | Horizontal | 3 lbs. | No Boot Included | €607.40 |
