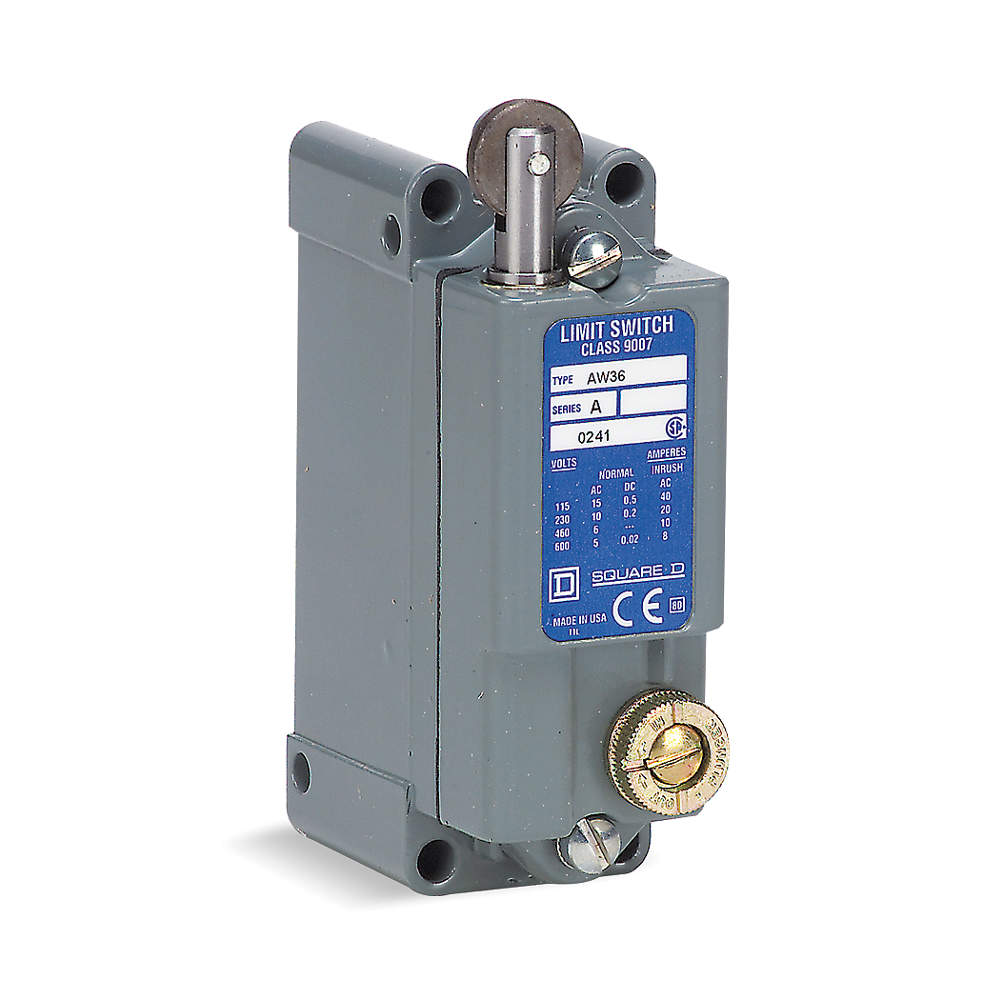

TELEMECANIQUE SENSORS 9007AW36 Heavy Duty Limit Switch Top Actuator 1no/1nc
Item: AF9FWKModel: 9007AW36Cross Ref: 2EF46
7 In Stock
Ships within 2 days via
5.00% off
€534.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heavy Duty Limit Switch |
| Ac Contact Rating | 15A @ 600V |
| Actuator Length | 1/2" |
| Actuator Location | Top |
| Actuator Style | Roller Plunger |
| Actuator Type | Roller plunger |
| Body Configuration | Plug In |
| Body Depth | 1.44" |
| Body Height | 3.68" |
| Body Material | Zinc |
| Body Material Type | Metallic |
| Body Width | 2.53" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | Spdt-Db-1No, 1Nc |
| Dc Contact Rating | 15A @ 600V |
| Depth | 3" |
| Differential Travel | 1.3" |
| Directional Movement | Linear |
| Display Qty | 1 |
| Electrical Connection | Screw Clamp Terminals |
| Height | 3.9" |
| Ip Rating | IP65 |
| Max. Operating Force | 3 lbf. |
| Max. Operating Temp. | 185°F |
| Min. Operating Temp. | 0°F |
| Mounting Hole Dia.-new | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 27 mm |
| Mounting Hole Vertical Center To Center Distance | 89 mm |
| Mounting Style | Surface |
| Movement | Horizontal |
| Nema Enclosure Rating | Nema 1, Nema 2, Nema 4, Nema 12, Nema 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4 |
| No. Of Mounting Holes | 6 |
| Operating Force | 3 lbs. |
| Operating Temp. | 0°F to +185°F |
| Overall Depth | 1.44" |
| Overall Height | 3 17/25" |
| Overall Width | 2.53" |
| Plunger Adjustability | Adjustable |
| Pre-travel | 0.09" |
| Roller Dia. | 0.63" |
| Roller Material | Steel |
| Roller Width | 0.25" |
| Series | 9007AW Series |
| Total Travel | 1/4" |
| Travel Length | 1/4" |
| Width | 1 2/5" |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 4.32 |
| Ship width (cm) | 13.21 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Variants
| Product | Model | Body Width | No. Of Mounting Holes | Depth | Overall Width | Overall Depth | Overall Height | Actuator Style | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007AW12 | 2.39" | 6 | 3" | 2.69" | 1.44" | 3 17/25" | No Lever, Rotary Head | -65°F | €491.30 | |
|
9007AW14 | 3" | 6 | 3" | 3" | 1.44" | 3 17/25" | No Lever, Rotary Head | -65°F | €528.83 | |
|
9007AW16 | 3" | 6 | 3" | 3" | 1.44" | 3 17/25" | No Lever, Rotary Head | -65°F | €503.57 | |
|
9007AW18 | 3" | 6 | 3" | 3" | 1.44" | 3 17/25" | No Lever, Rotary Head | -65°F | €572.11 | |
 |
9007AW46 | 2.53" | 6 | 3" | 2.53" | 1.44" | 3 17/25" | Push Rod Plunger | 0°F | €559.93 | |
 |
9007AO12 | - | 2 | 2.4" | 2 7/25" | 1.38" | 3.47" | No Lever, Rotary Head | 0°F | €411.61 | |
 |
9007AO16 | - | 2 | 2.4" | 2.38" | 1.38" | 3.47" | No Lever, Rotary Head | 0°F | €420.46 |
