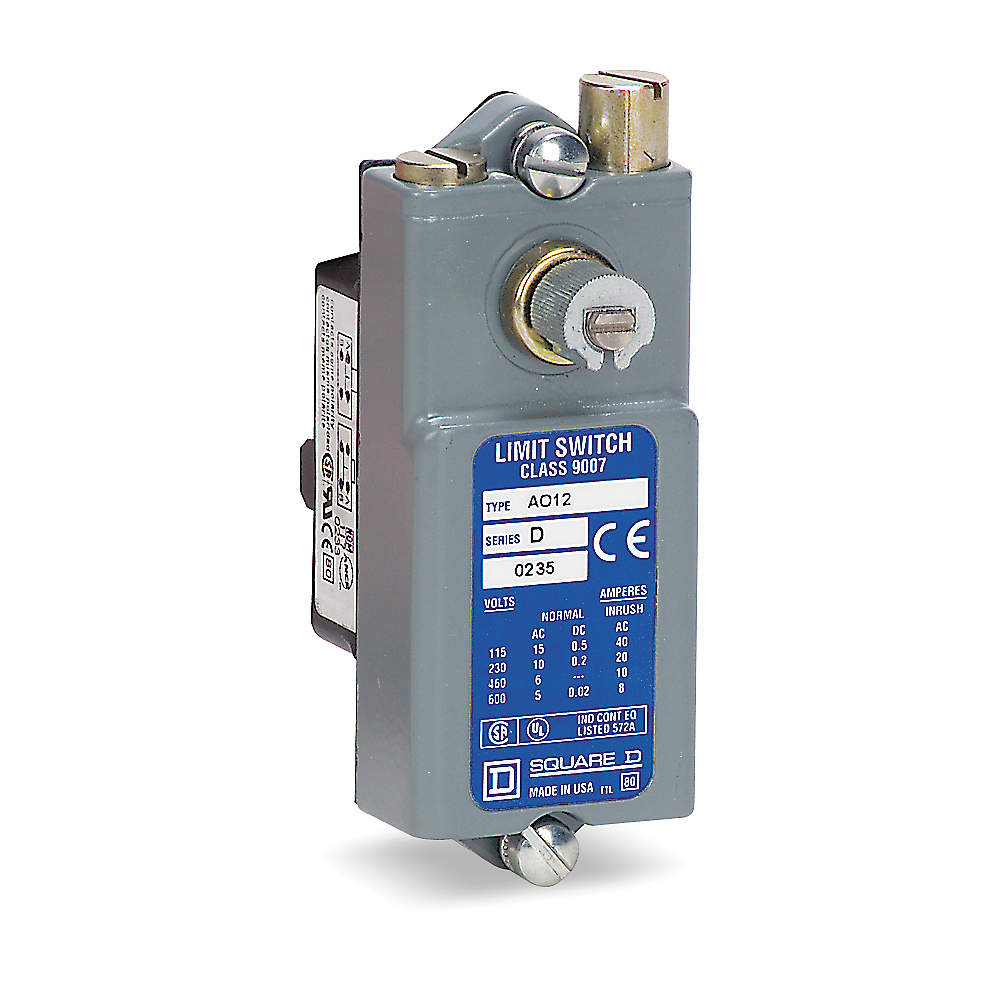

TELEMECANIQUE SENSORS 9007AO12 Heavy Duty Limit Switch Side Actuator 1no/1nc
Item: AF9GQLModel: 9007AO12Cross Ref: 2FL88
7 In Stock
Ships within 2 days via
5.00% off
€391.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heavy Duty Limit Switch |
| Ac Contact Rating | 10A @ 240V, 15A @ 120V, 5A @ 600V, 6A @ 480V |
| Actuator Location | Side |
| Actuator Style | No Lever, Rotary Head |
| Body Configuration | Non Plug In |
| Body Material | Zinc |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 0.1A @ 250V, 0.25A @ 125V |
| Depth | 2.4" |
| Electrical Connection | Screw Clamp Terminals |
| Height | 3.9" |
| Ip Rating | IP20 |
| Max. Operating Temp. | 185°F |
| Min. Operating Temp. | 0°F |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 27 mm |
| Mounting Hole Vertical Center To Center Distance | 89 mm |
| Movement | CW/CCW |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4 |
| No. Of Mounting Holes | 2 |
| Operating Temp. | -65°F to +185°F |
| Overall Depth | 1.38" |
| Overall Height | 3.47" |
| Overall Width | 2 7/25" |
| Series | 9007AW Series |
| Travel Length | 90° |
| Width | 1 2/5" |
| Wiring Entry | Open Style |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 7.11 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Variants
| Product | Model | Actuator Style | Contact Form | Ip Rating | Dc Contact Rating | Movement | Depth | Body Width | Travel Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007AW12 | No Lever, Rotary Head | Spdt-Db-1No, 1Nc | IP65 | 15A @ 600V | CCW/CW | 3" | 2.39" | - | €491.30 | |
|
9007AW14 | No Lever, Rotary Head | Spdt-Db-1No, 1Nc | IP65 | 15A @ 600V | CW/CCW | 3" | 3" | - | €528.83 | |
|
9007AW16 | No Lever, Rotary Head | Spdt-Db-1No, 1Nc | IP65 | 15A @ 600V | CCW/CW | 3" | 3" | - | €503.57 | |
|
9007AW18 | No Lever, Rotary Head | Dpdt-Db-2No, 2Nc | IP65 | 10A @ 600V | CW/CCW | 3" | 3" | - | €572.11 | |
 |
9007AW36 | Roller Plunger | Spdt-Db-1No, 1Nc | IP65 | 15A @ 600V | Horizontal | 3" | 2.53" | 1/4" | €562.58 | |
 |
9007AW46 | Push Rod Plunger | Spdt-Db-1No, 1Nc | IP65 | 15A @ 600V | Vertical | 3" | 2.53" | 1/4" | €559.93 | |
 |
9007AO16 | No Lever, Rotary Head | 1NO/1NC | IP20 | 0.1A @ 250V, 0.25A @ 125V | CCW/CW | 2.4" | - | 90° | €420.46 |
