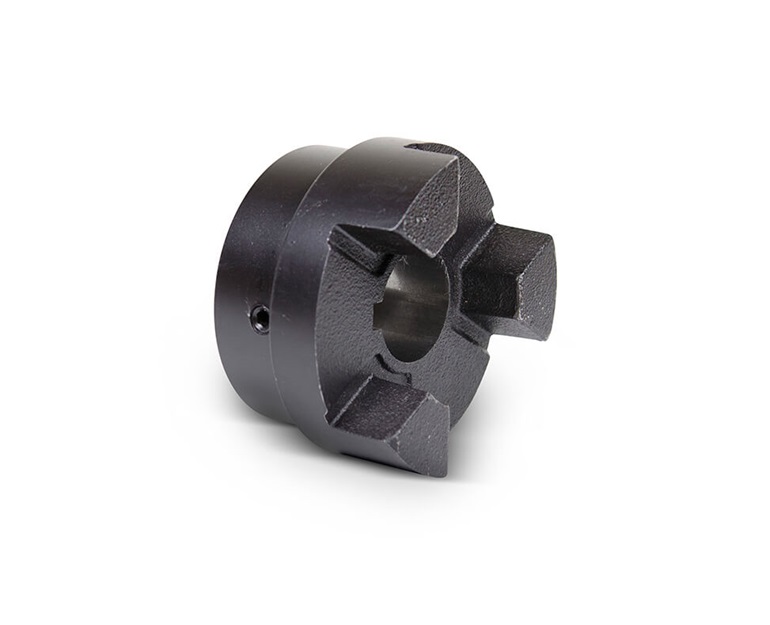

TB WOODS L1902 L-Jaw Hub, Cast Iron, L190 Size, 2 inch Bore Dia., 4.5 inch Outer Dia., 5000 rpm
Item: AK4BFPModel: L1902
7 In Stock
Ships within 2 days via
€143.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jaw Coupling Hub |
| Bore Size | 2" |
| Bore Tolerance | +0.0005" to +0.0015" |
| Bore Type | Finished With Keyway |
| Center | 1" |
| Element Type | Jaw Coupling Hub |
| Hub Material | Cast Iron |
| Jaw Type | Straight |
| Keyway Size | 1/2" x 1/4" |
| Length Through Bore | 1.94" |
| Max. Parallel Misalignment | 0.015" |
| Max. Speed | 5000 RPM |
| Outside Dia. | 4 1/2" |
| Overall Length | 4 22/25" |
| Product Type | L-Jaw Hub |
| Set Screw Thread Class | Class 2B |
| Set Screw Thread Size | 7/16"-14 |
| Set Screw Thread Type | Coarse |
| Setscrew | 7/16-14 UNC - 2B |
| Setscrew Length | 5/8" |
| Size | L190 |
Shipping Info:
| Ship weight (kg) | 3.11 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 12.4 |
| Ship width (cm) | 11.43 |
Product Variants
| Model | Max. Speed | Keyway Size | Max. Parallel Misalignment | Hub Material | Bore Dia. | Outside Dia. | For Shaft Type | Coupling Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AL05012NK | 18000 RPM | No Keyway | 0.015" | Aluminum | 1/2" | 1 2/25" | Round | L050 | €11.78 | |
| AL05014NK | 18000 RPM | No Keyway | 0.015" | Aluminum | 1/4" | 1 2/25" | Round | L050 | €11.78 | |
| AL05038NK | 18000 RPM | No Keyway | 0.015" | Aluminum | 3/8" | 1 2/25" | Round | L050 | €11.78 | |
| AL0505/16NK | 18000 RPM | No Keyway | 0.015" | Aluminum | 0.312" | 1 2/25" | Round | L050 | €11.78 | |
| AL05058NK | 18000 RPM | No Keyway | 0.015" | Aluminum | 5/8" | 1 2/25" | Round | L050 | €11.78 | |
| AL07012NK | 14000 RPM | No Keyway | 0.015" | Aluminum | 1/2" | 1 9/25" | Round | L070 | €17.78 | |
| AL07034 | 14000 RPM | 3/16" x 3/32" | 0.015" | Aluminum | 3/4" | 1 9/25" | - | - | €17.78 |
