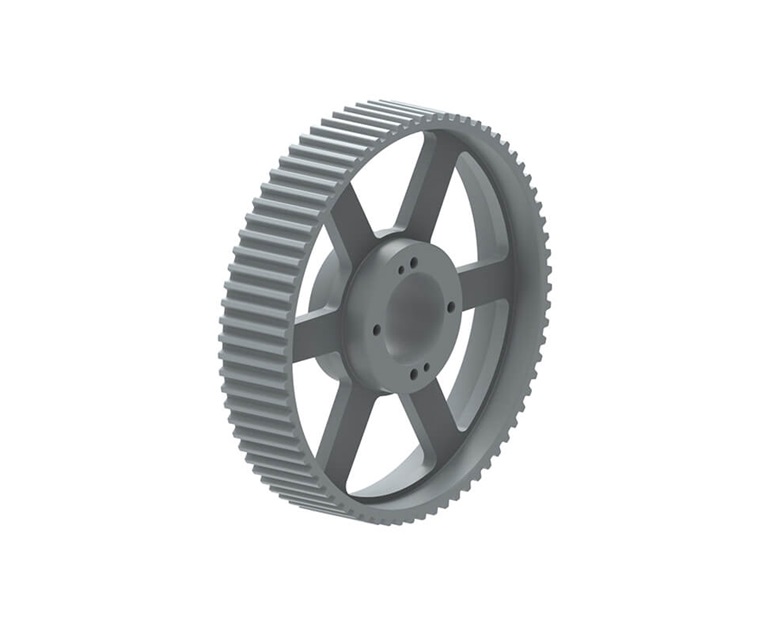

TB WOODS 90XXH500 Timing Belt Sprocket, Cast Iron, 10.5 inch Hub Dia., 5 inch Belt Width
90
Get it by Tuesday, Dec 23
€4,984.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Width | 5" |
| Bore Type | Quick Disconnect Bushing |
| Bushing | M |
| Dimension E | 1 4/25" |
| Dimension L | 6 3/4" |
| Dimension M | 0.22" |
| Face Width | 5.81" |
| Hub Dia. | 10 1/2" |
| Hub Length | 5.19" |
| Hub Location | 0.31" |
| Inside Dia. | 33 11/25" |
| Material | Cast Iron |
| Max. Rpm | 710 RPM |
| Number Of Teeth | 90 |
| Outside Dia. | 35.69" |
| Pitch | 1 1/4" |
| Pitch Dia. | 35.81" |
| Rpm High | 710 RPM |
| Rpm High | 710RPM |
Shipping Info:
| Ship weight (kg) | 141.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 90.65 |
| Ship width (cm) | 90.65 |
Product Variants
| Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Belt Width | Pitch | Pitch Length | Rpm High | Max. Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 80XL037 | 40 | - | - | 0.38" | 1/5" | 8" | - | - | €7.16 | |
| 90XL037 | 45 | - | - | 0.38" | 1/5" | 9" | - | - | €7.31 | |
| 120XL037 | 60 | - | - | 0.38" | 1/5" | 12" | - | - | €7.92 | |
| 150XL037 | 75 | - | - | 0.38" | 1/5" | 15" | - | - | €8.53 | |
| 200XL037 | 100 | - | - | 0.38" | 1/5" | 20" | - | - | €9.75 | |
| 220XL037 | 110 | - | - | 0.38" | 1/5" | 22" | - | - | €10.21 | |
| 210L050 | 56 | - | - | 1/2" | 3/8" | 21" | - | - | €16.75 |
