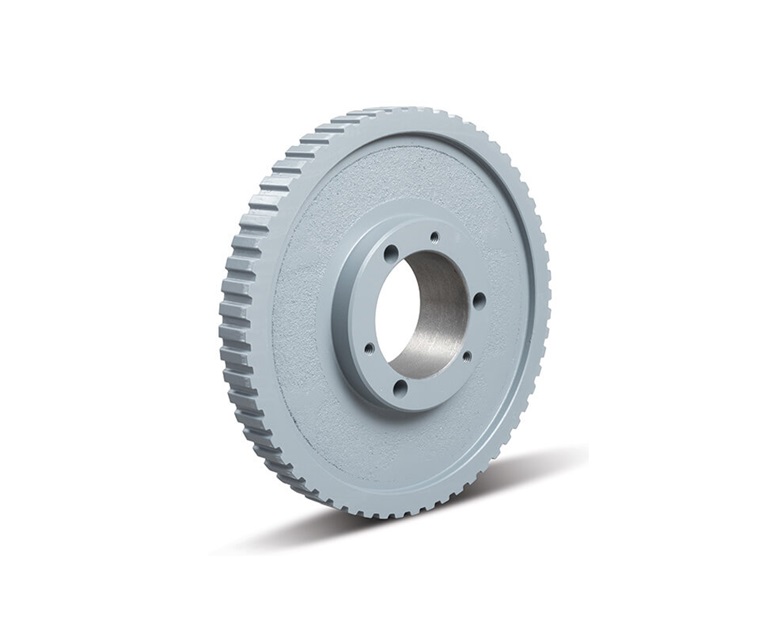

TB WOODS 60L050 Timing Belt Sprocket, Cast Iron, 3.38 inch Hub Dia., 0.5 inch Belt Width
Item: AK6CTZModel: 60L050
7 In Stock
60
Ships within 2 days via
€282.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sprocket |
| Belt Width | 1/2" |
| Bore Type | Quick Disconnect Bushing |
| Bushing | SD |
| Dimension E | 22/25" |
| Dimension L | 1.81" |
| Dimension M | 0.19" |
| Face Width | 1 1/4" |
| Hub Length | 1 1/4" |
| Hub Location | -1/4" |
| Inside Dia. | 6 1/4" |
| Material | Cast Iron |
| Max. Rpm | 3510 RPM |
| Number Of Teeth | 60 |
| Outside Dia. | 7.13" |
| Pitch | 3/8" |
| Pitch Dia. | 7.162" |
| Product Type | Timing |
| Rpm High | 3510 RPM |
| Rpm High | 3,510RPM |
Shipping Info:
| Ship weight (kg) | 2.52 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 18.11 |
| Ship width (cm) | 18.11 |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Belt Width | Pitch | Pitch Length | Rpm High | Max. Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
310XL037 | 155 | - | - | 0.38" | 1/5" | 31" | - | - | €12.34 | |
 |
10L050 | 10 | 1.194" | 1 4/25" | 1/2" | 3/8" | - | 21480 RPM | 21480 RPM | €53.01 | |
|
10XL037 | 10 | 0.637" | 0.62" | 0.38" | 1/5" | - | 40520 RPM | 40520 RPM | €29.36 | |
|
11XL037 | 11 | 0.7" | 17/25" | 0.38" | 1/5" | - | 36770 RPM | 36770 RPM | €31.80 | |
 |
120H100 | 120 | 19.099" | 19.05" | 1" | 1/2" | - | 1320 RPM | 1320 RPM | €620.40 | |
|
120H150 | 120 | 19.099" | 19.05" | 1 1/2" | 1/2" | - | 1320 RPM | 1320 RPM | €699.60 | |
 |
120H200 | 120 | 19.099" | 19.05" | 2" | 1/2" | - | 1320 RPM | 1320 RPM | €805.20 |
