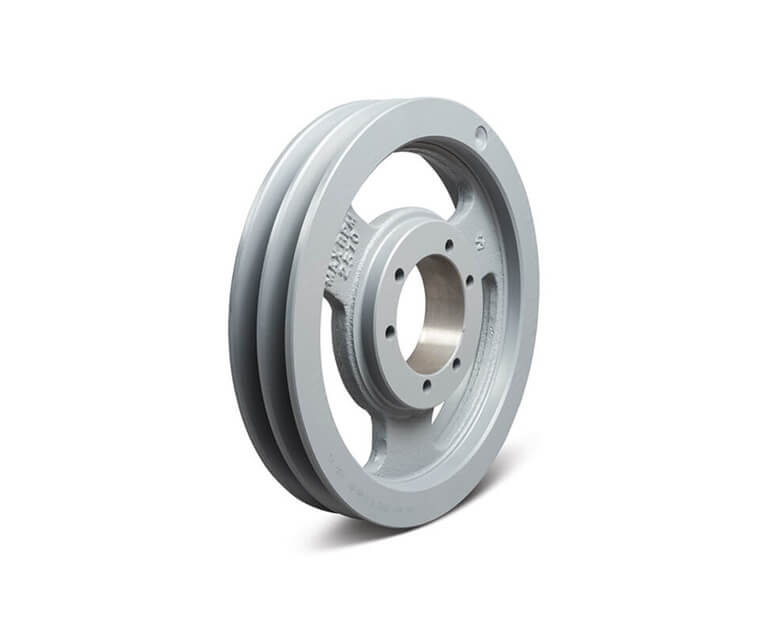

TB WOODS 5V9752 Narrow V-Belt Sheave, Cast Iron, 5V Type Belt, 9.75 inch Datum Dia.
11/25"
9 3/4"
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€366.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| 5v Belt Pitch Dia. | 9 3/4" |
| 5v Belt Pitch Dia. | 9.75" |
| 5vx Pitch Diameter | 9.75" |
| Belt Type | 5V |
| Bore Type | Bushed |
| Bushing | SK |
| Bushing Required | SK |
| Construction | Arm |
| Datum Dia. | 9 3/4" |
| Dimension E | 7/25" |
| Dimension L | 1.88" |
| Dimension L | 1 22/25" |
| Dimension M | 0.09" |
| Face Width | 1.688" |
| For Belt Section | 5V, 5VX |
| For Bushing Size | SK |
| For Bushing Type | Quick Detachable |
| For V-belt Type | Wedge, Cogged, Banded |
| Hub Location | 11/25" |
| Industry Number | 5V9752 |
| Length Through Bore | 1 7/8" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Max. Rpm | 2570 RPM |
| No. Of Grooves | 2 |
| Outside Dia. | 9 3/4" |
| Outside Diameter | 9.75" |
| Overall Length | 1.969" |
| Overall Width | 1 15/16" |
| Pitch Dia. | 9.75" (5V) |
| Product Type | Narrow |
| Pulley Construction | Webbed |
| Pulley Industry Number | 5V975 |
| Pulley Series | Narrow Wedge |
| Set Screw Included | No |
Shipping Info:
| Ship weight (kg) | 5.67 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 31.24 |
| Ship width (cm) | 32 |
| HS code | 8483509040 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Bore Type | Outside Dia. | Industry Number | For Belt Section | For Bushing Size | C Or Cx Belt Pitch Dia. | Datum Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5V1252 | Cast Iron | Quick Disconnect Bushing | 12 1/2" | 5V1252 | - | - | - | 12 1/2" | €450.64 | |
|
5V1602 | Cast Iron | Bushed | 16" | 5V1602 | 5V, 5VX | SF | - | 16" | €581.29 | |
|
5V1872 | Cast Iron | Quick Disconnect Bushing | 18.7" | 5V1872 | - | - | - | 18.7" | €777.83 | |
 |
5V1874 | Cast Iron | Bushed | 18.7" | 5V1874 | 5V, 5VX | E | - | 18.7" | €985.30 | |
 |
5V442 | Cast Iron | Bushed | 4 2/5" | 5V442 | 5V, 5VX | SH | - | 4 2/5" | €201.69 | |
 |
5V443 | Cast Iron | Bushed | 4 2/5" | 5V443 | 5V, 5VX | SDS | - | 4 2/5" | €234.14 | |
 |
5V444 | Cast Iron | Bushed | 4 2/5" | 5V444 | 5V, 5VX | SD | - | 4 2/5" | €232.21 |
