TB WOODS 5V1874 Narrow V-Belt Sheave, Cast Iron, 5V Type Belt, 18.7 inch Datum Dia.
18.7"
Get it by Wednesday, Dec 17
10.00% off
€886.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| 5v Belt Pitch Dia. | 18.7" |
| 5v Belt Pitch Dia. | 18 7/10" |
| 5v Pitch Diameter | 18.7" |
| 5vx Pitch Diameter | 18.7" |
| Belt Type | 5V |
| Bore Type | Bushed |
| Bushing | E |
| Bushing Required | E |
| Construction | Arm |
| Datum Dia. | 18.7" |
| Dimension E | 0.34" |
| Dimension L | 2.63" |
| Dimension M | 0.09" |
| Face Width | 3.063" |
| For Belt Section | 5V, 5VX |
| For Bushing Size | E |
| For Bushing Type | Quick Detachable |
| For V-belt Type | Wedge, Cogged, Banded |
| Hub Location | 1 1/4" |
| Industry Number | 5V1874 |
| Inside Dia. | 16 3/4" |
| Length Through Bore | 2 5/8" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Max. Rpm | 1340 RPM |
| No. Of Grooves | 4 |
| Outside Dia. | 18.7" |
| Overall Length | 3.062" |
| Overall Width | 3 1/16" |
| Pitch Dia. | 18.7" (5V) |
| Pulley Construction | Spoked |
| Pulley Industry Number | 5V1870 |
| Pulley Series | Narrow Wedge |
| Set Screw Included | No |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 48.26 |
| HS code | 8483509040 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Bore Type | Outside Dia. | Industry Number | For Belt Section | For Bushing Size | C Or Cx Belt Pitch Dia. | Datum Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5V1252 | Cast Iron | Quick Disconnect Bushing | 12 1/2" | 5V1252 | - | - | - | 12 1/2" | €450.64 | |
|
5V1602 | Cast Iron | Bushed | 16" | 5V1602 | 5V, 5VX | SF | - | 16" | €581.29 | |
|
5V1872 | Cast Iron | Quick Disconnect Bushing | 18.7" | 5V1872 | - | - | - | 18.7" | €777.83 | |
 |
5V442 | Cast Iron | Bushed | 4 2/5" | 5V442 | 5V, 5VX | SH | - | 4 2/5" | €201.69 | |
 |
5V443 | Cast Iron | Bushed | 4 2/5" | 5V443 | 5V, 5VX | SDS | - | 4 2/5" | €234.14 | |
 |

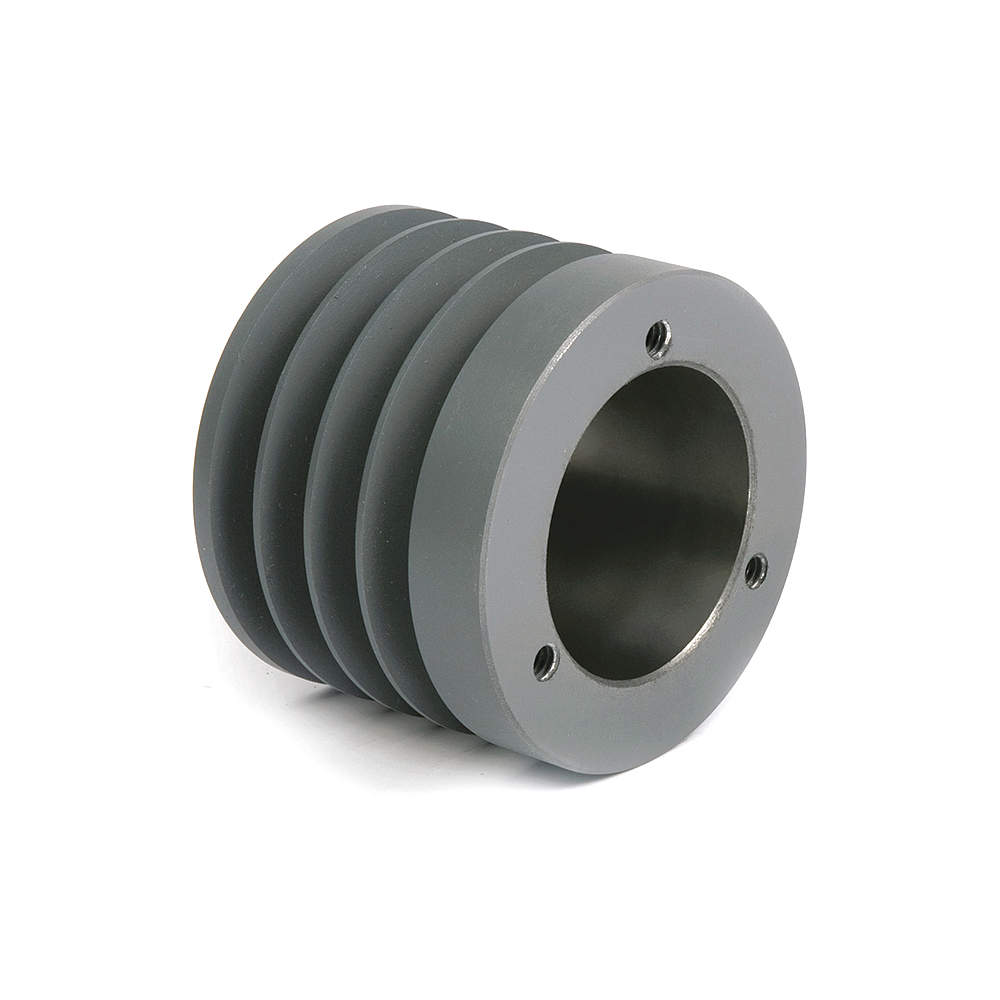

5V444 | Cast Iron | Bushed | 4 2/5" | 5V444 | 5V, 5VX | SD | - | 4 2/5" | €232.21 | |
 |

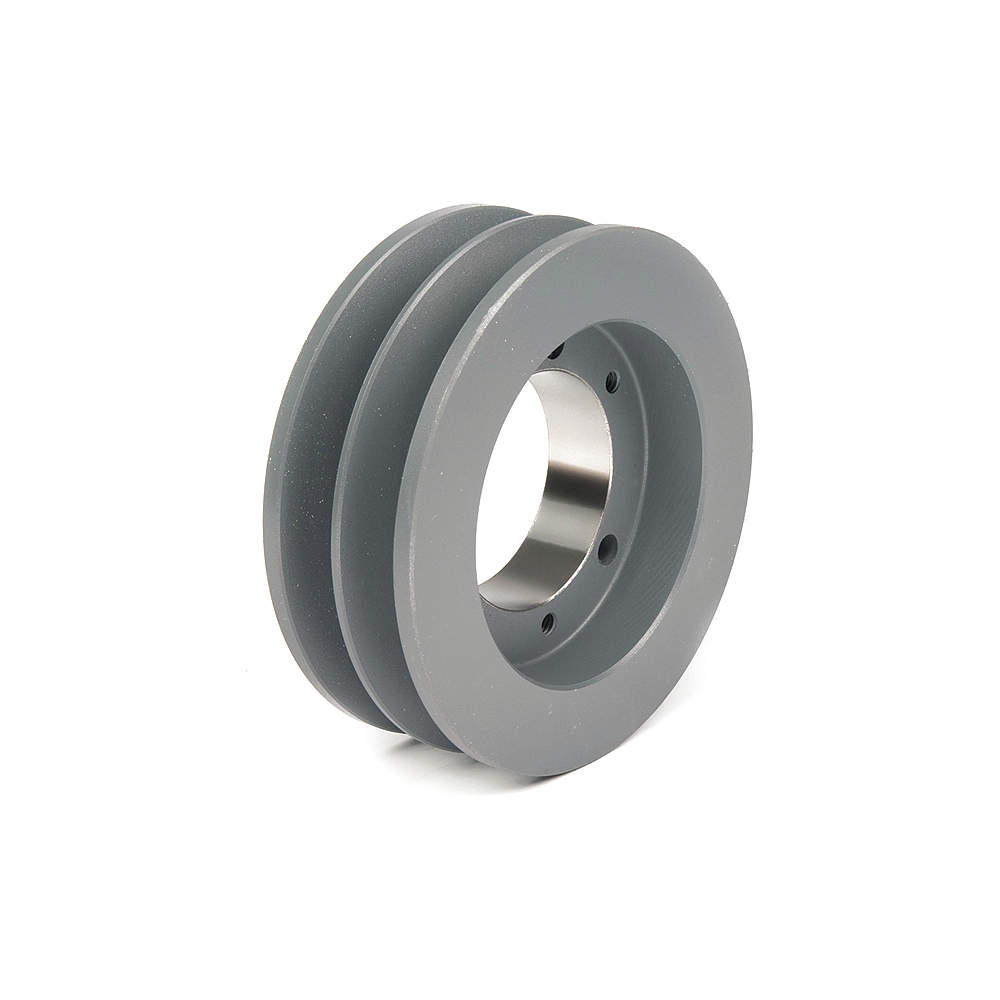

5V4652 | Cast Iron | Bushed | 4.65" | 5V4652 | 5V, 5VX | SDS | - | 4.65" | €211.96 |
