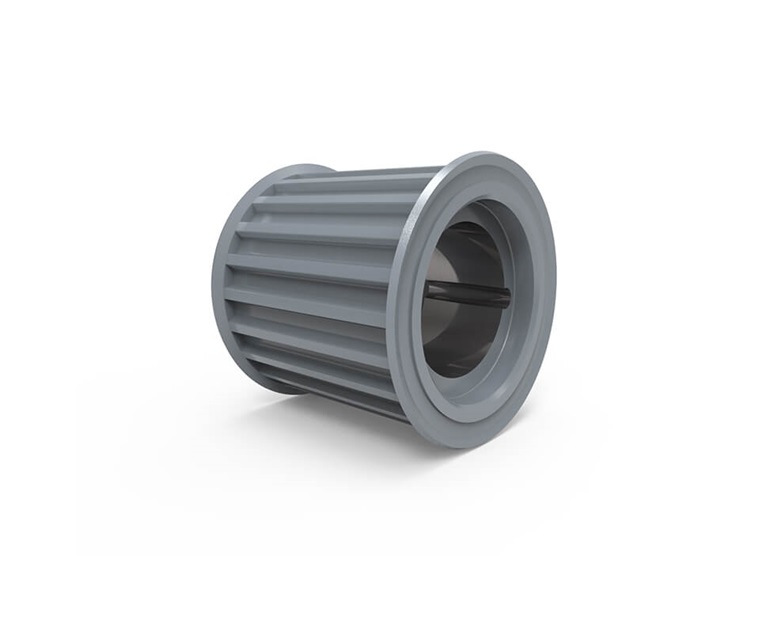

TB WOODS 22H300 Timing Belt Sprocket, Ductile Iron, 3 inch Belt Width, 3.501 inch Pitch Dia.
Item: AK6EQLModel: 22H300
7 In Stock
22
Ships within 2 days via
€304.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sprocket |
| Belt Width | 3" |
| Bore Type | Quick Disconnect Bushing |
| Bushing | SD R |
| Dimension E | 2.19" |
| Dimension L | 1.81" |
| Face Width | 3.38" |
| Hub Length | 1 1/4" |
| Inside Dia. | 2.59" |
| Material | Ductile Cast Iron |
| Max. Rpm | 11080 RPM |
| Number Of Teeth | 22 |
| Outside Dia. | 3.45" |
| Pitch | 1/2" |
| Pitch Dia. | 3.501" |
| Rpm High | 11080 RPM |
Shipping Info:
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.76 |
| Ship width (cm) | 8.76 |
Product Variants
| Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Belt Width | Pitch | Pitch Length | Rpm High | Max. Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 80XL037 | 40 | - | - | 0.38" | 1/5" | 8" | - | - | €7.16 | |
| 90XL037 | 45 | - | - | 0.38" | 1/5" | 9" | - | - | €7.31 | |
| 120XL037 | 60 | - | - | 0.38" | 1/5" | 12" | - | - | €7.92 | |
| 150XL037 | 75 | - | - | 0.38" | 1/5" | 15" | - | - | €8.53 | |
| 200XL037 | 100 | - | - | 0.38" | 1/5" | 20" | - | - | €9.75 | |
| 220XL037 | 110 | - | - | 0.38" | 1/5" | 22" | - | - | €10.21 | |
| 210L050 | 56 | - | - | 1/2" | 3/8" | 21" | - | - | €16.75 |
