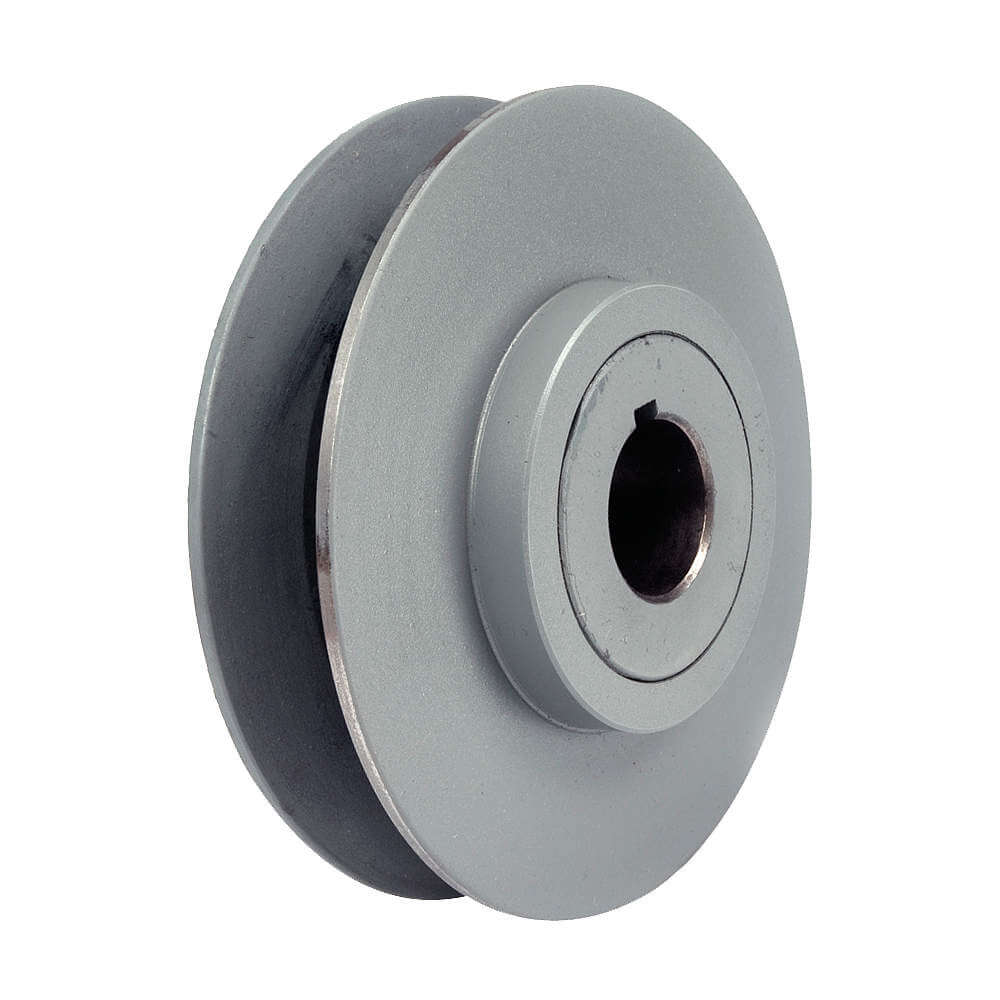

TB WOODS 1VP75138 V-belt Pulley 1-3/8 Variable Pitch 7.5 Outer Diameter Iron
Item: AE6PTGModel: 1VP75138Cross Ref: 5UHW4
7 In Stock
Ships within 2 days via
10.00% off
€247.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Variable Pitch V-Belt Pulley |
| 4l Pitch Diameter (maximum) | 6.7" |
| 4l Pitch Diameter (minimum) | 5.7" |
| 4l, A, Or Ax Belt Pitch Dia. | 5.95" to 6.98" |
| 4la Or A Belt Pitch Dia. | 5.95" to 6.98" |
| 5l Pitch Diameter (maximum) | 7" |
| 5l Pitch Diameter (minimum) | 5 4/5" |
| 5l, B, Or Bx Belt Pitch Dia. | 6.24" to 7.45" |
| 5v Belt Pitch Dia. | 6.18" to 7.39" |
| 5v Pitch Diameter (maximum) | 7.4" |
| 5v Pitch Diameter (minimum) | 6.2" |
| 5vx Pitch Diameter (maximum) | 7 2/5" |
| 5vx Pitch Diameter (minimum) | 6.2" |
| A Pitch Diameter (maximum) | 6.7" |
| A Pitch Diameter (minimum) | 5.7" |
| Ax Pitch Diameter (maximum) | 6.7" |
| Ax Pitch Diameter (minimum) | 5.7" |
| B Pitch Diameter (maximum) | 7" |
| B Pitch Diameter (minimum) | 5.8" |
| Bore Dia. | 1 3/8" |
| Bore Type | Fixed Bore |
| Bushing Required | None |
| Bx Pitch Diameter (maximum) | 7" |
| Bx Pitch Diameter (minimum) | 5.8" |
| Construction | Solid |
| Finish | Annealed |
| Fits Shaft Dia. | 1.375" |
| For Belt Section | 4L, 5L, A, Ax, B, Bx, 5V, 5Vx |
| For V-belt Type | Classical, Wedge, Cogged |
| Includes | Set Screw |
| Industry Number | 1VP75138 |
| Keyway | Yes |
| Keyway Depth | 5/32" |
| Keyway Size | 0.312" |
| Keyway Width | 5/16" |
| Length Through Bore | 1 21/32" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Max. Pitch Dia. | 6.7" (4L, A), 7" (5L, B), 7.4" (5V) |
| Maximum Face Width | 1 1/4" |
| Minimum Face Width | 0.875" |
| Minimum Pitch Diameter | 5.7" (4L, A), 5.8" (5L, B), 6.2" (5V) |
| No. Of Grooves | 1 |
| Number Of Turns To Fully Open | 5 (4L, A), 6 (5L, B), 6 (5V) |
| Outside Dia. | 7 1/2" |
| Outside Diameter | 7.5" |
| Overall Width | 1 11/16" |
| Pulley Construction | Plain |
| Pulley Industry Number | 1VP75 |
| Pulley Series | Series VP |
| Set Screw Included | Yes |
| Weight | 9.2 lbs. |
Shipping Info:
| Ship weight (kg) | 4.14 |
| Ship height (cm) | 20.57 |
| Ship length (cm) | 20.57 |
| Ship width (cm) | 5.33 |
| HS code | 8483509040 |
| Country of Origin | US |
Product Variants
| Model | Industry Number | Outside Dia. | 4l, A, Or Ax Belt Pitch Dia. | 5l, B, Or Bx Belt Pitch Dia. | Bore Dia. | Keyway Size | For V-belt Type | 4la Or A Belt Pitch Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1VP2512 | 1VP2512 | 2.58" | - | - | 1/2" | No Keyway | Classical, Cogged | - | €57.16 | |
| 1VP2558 | 1VP2558 | 2.58" | - | - | 5/8" | 0.187" x 0.093" | Classical, Cogged | - | €57.16 | |
| 1VP3012 | 1VP3012 | 2.83" | - | - | 1/2" | No Keyway | Classical, Cogged | - | €57.19 | |
| 1VP3058 | 1VP3058 | - | - | - | 5/8" | 0.187" x 0.093" | Classical, Cogged | - | €57.19 | |
| 1VP3412 | 1VP3412 | 3.15" | 2.41" to 3.13" | 2.77" to 3.19" | 1/2" | No Keyway | Classical, Cogged | 2.41" to 3.13" | €70.06 | |
| 1VP3434 | 1VP3434 | 3.15" | 2.41" to 3.13" | 2.77" to 3.19" | - | 0.187" x 0.093" | Classical, Cogged | 2.41" to 3.13" | €70.06 | |
| 1VP3458 | 1VP3458 | 3.15" | 2.41" to 3.13" | 2.77" to 3.19" | 5/8" | 0.187" x 0.093" | Classical, Cogged | 2.41" to 3.13" | €70.06 |
