FREE delivery on orders over €150

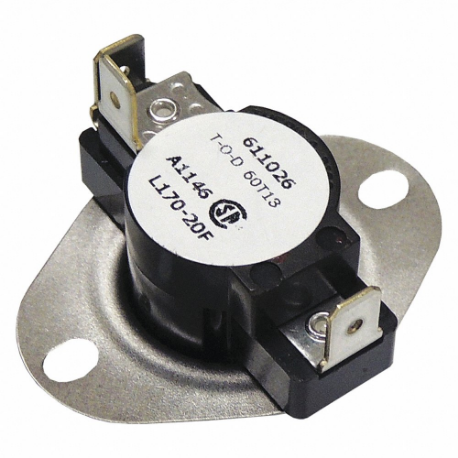

SUPCO LD170 Thermostat, 150 Deg F Switch Closes at F, 170 Deg F Switch Opens at F, 120 to 240
Item: CU4VYYModel: LD170Cross Ref: 407L08
7 In Stock
Ships within 2 days via
5.00% off
€13.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thermostat |
| Application | Limit Control With Fan Bypass |
| Circuit #1 Switch Closes @ (f) | 150°F |
| Circuit #1 Switch Opens @ (f) | 170°F |
| Circuit No. 1-inductive 120v | 14 |
| Circuit No. 1-inductive 240v | 10 |
| Contact Form | SPDT |
| Depth | 1 1/2" |
| Differential | 20°F |
| Element Type | Insertion |
| Height | 1" |
| Inductive Amps @ 120v | 14A |
| Inductive Amps @ 240v | 10A |
| Input Voltage | 240V AC |
| Max. Control Temp. | 170°F |
| Min. Control Temp. | 150°F |
| Mounting | Surface Mount |
| Mounting Base Length | 2" |
| Mounting Base Width | 1 5/8" |
| Overall Depth | 1 1/2" |
| Overall Height | 1" |
| Overall Width | 2" |
| Pilot Duty Contacts (va) | 125 VA |
| Product Type | Thermostat |
| Reset Type | Automatic Reset |
| Resistive Amps @ 120v | 25A |
| Resistive Amps @ 240v | 25A |
| Resistive Rating Circuit #1 @120/240v | 25 |
| Series | LD Series |
| Switch Action | Open And Close On Rise |
| Switch Closing Temp. | 150°F |
| Switch Opening Temp. | 170°F |
| Switch Type | SPDT |
| Temp. | +150°C to +170°C |
| Temp. Differential | 20°F |
| Type | Automatic Reset, Limit |
| Voltage | 120-240V |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 5.08 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Switch Opening Temp. | Switch Closing Temp. | Element Type | Height | Max. Control Temp. | Min. Control Temp. | Color | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CR87-21 | - | - | - | - | - | - | - | - | 60 | €63.63 | |
 |
S20120F7 | - | - | - | - | - | - | - | - | 60 | €59.63 | |
 |
L320 | - | 320°F | 280°F | - | - | - | - | - | 1 | €7.07 | |
 |
CR15B | - | - | - | - | - | - | - | - | 1 | €73.20 | |
 |
SHM290 | - | 290°F | Not Applicable | - | - | 290°F | - | - | 1 | €21.57 | |
 |
BPV78 | - | - | - | - | - | - | - | - | 1 | €33.77 | |
 |
CRPEN | - | - | - | - | - | - | - | - | 1 | €25.73 |
