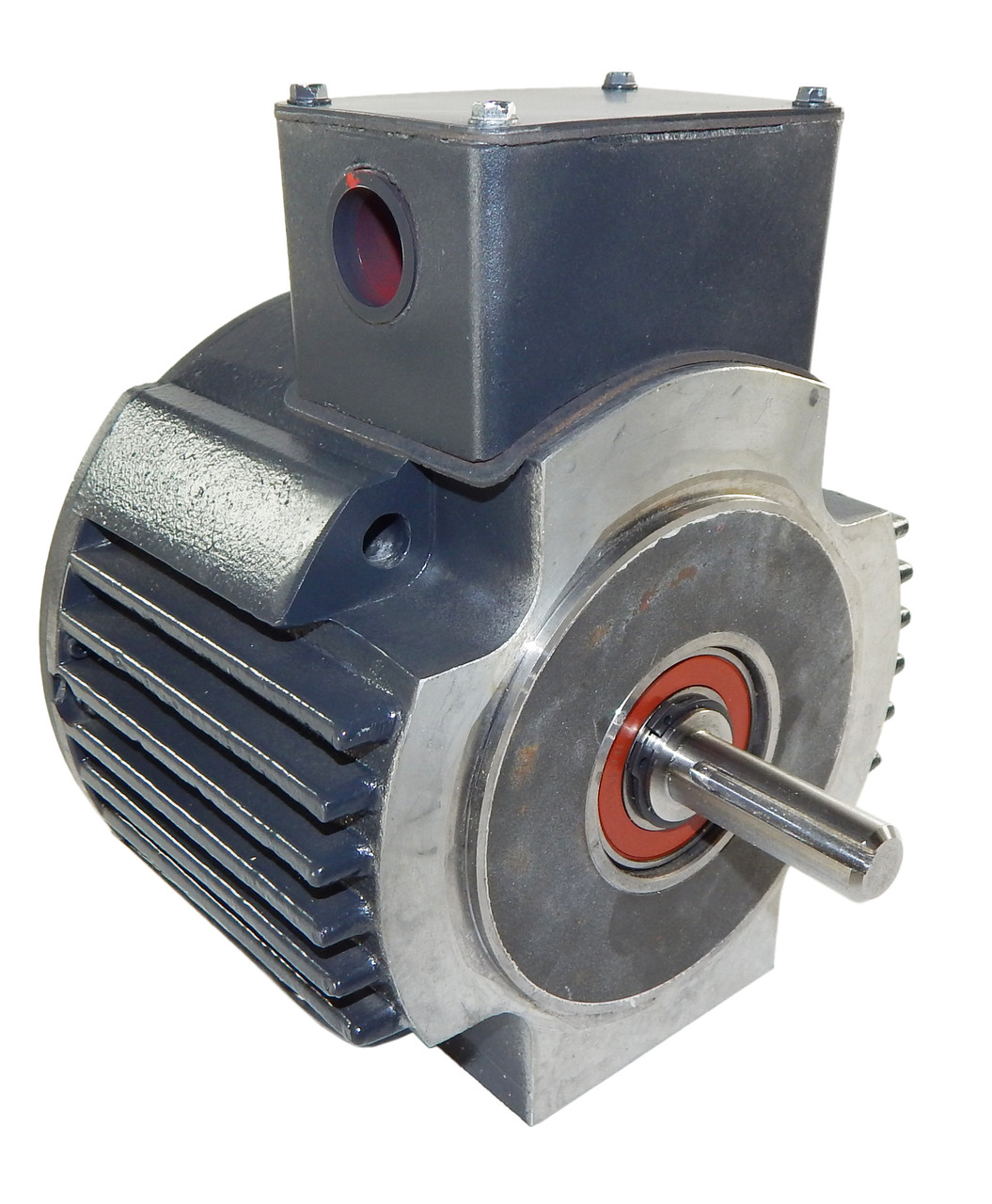

STEARNS BRAKES 235056101APL Clutch Brake, 56C 230VAC
Get it by Tuesday, Sep 1
€3,026.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Clutch/Brake |
| Application | General Purpose |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 230V |
| Dynamic Torque | 10 lbs.-ft. |
| Enclosure Iec | IP54 |
| Frame Size | 56C |
| Function | Clutch Brake |
| Hub Bore Dia. | 5/8" |
| Series | SM-50-1020 Series |
| Static Torque | 16 lbs.-ft. |
| Thermal Capacity | 5000 lbs.-ft./min. |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 21.21 |
| Ship length (cm) | 17.53 |
| Ship width (cm) | 17.53 |
Product Variants
| Model | Static Torque | Hub Bore Dia. | Torque | Voltage | Bore Size | Housing Length | Shaft Extension Length | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 235056101AJL | 16 lbs.-ft. | 5/8" | - | - | - | - | - | - | €2,078.76 | |
| 235056102AJL | - | - | 35 lbs.-ft. | 90V | 5/8" | 4.87" | 1.9" | 56C, 48Y | €2,689.01 | |
| 235140102AJO | - | - | 35 lbs.-ft. | 90V | 7/8" | 4.71" | 1.96" | 143TC/145TC, 182C/184C | €2,561.93 | |
| 235056102ANL | - | - | 35 lbs.-ft. | 115V | 5/8" | 4.87" | 1.9" | 56C, 48Y | €3,001.18 | |
| 235056102DNL | - | - | 35 lbs.-ft. | 115V | 5/8" | 5.9" | 1.9" | 56C, 48Y | €3,590.62 | |
| 235056101ANL | - | - | 16 lbs.-ft. | 115V | 5/8" | 4.87" | 1.9" | 56C, 48Y | €2,284.56 | |
| 235056101AEL | 16 lbs.-ft. | 5/8" | - | - | - | - | - | - | €2,078.76 |
