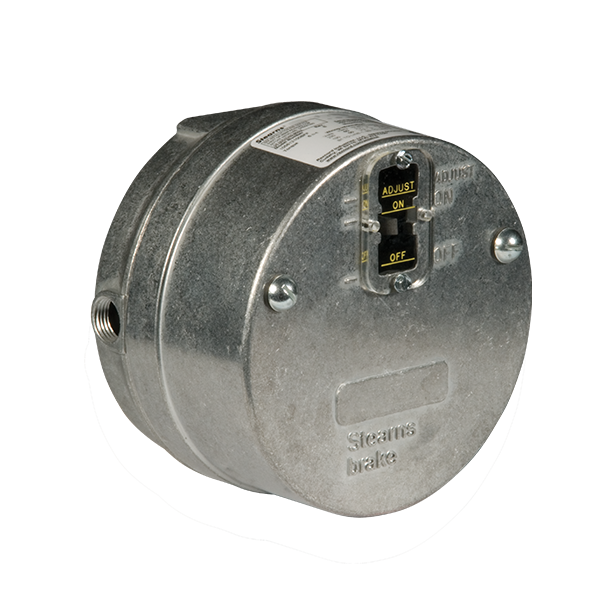

STEARNS BRAKES 105613100BLF Brake, NEMA2 460VAC
Item: AK8MWYModel: 105613100BLF
7 In Stock
10 ft.-lbs.
460/380V
5/8"
Ships within 2 days via
€1,230.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Brake Assembly |
| Ac Coil Voltage | 380/460V AC |
| Application | General Purpose |
| Bore Size | 5/8" |
| Coil Frequency | 50/60 Hz |
| Coil Size | #4 |
| Enclosure Ip Rating | IP23 |
| Enclosure Nema | NEMA 2 |
| End Plate Material | Aluminum |
| Frame | 56C, 140TC |
| Frequency | 60 Hz |
| Housing Length | 4.41" |
| Housing Material | Aluminum |
| Hub Bore Dia. | 5/8" |
| Lead Wire Position | Standard |
| Mount Orientation | Horizontal |
| Outside Dia. | 6.87" |
| Power On/power Off | Power Off |
| Release | Internal Release |
| Series | 56100 Series |
| Static Torque | 10 lbs.-ft. |
| Torque | 10 lbs.-in. |
| Type | Motor Brake-Fan End Mounting |
| Voltage | 460V |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 12.57 |
| Ship length (cm) | 17.45 |
| Ship width (cm) | 17.45 |
Product Variants
| Model | Static Torque | Hub Bore Dia. | Ac Coil Voltage | Enclosure Nema | Coil Voltage Ac | Torque | Voltage | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 105616100BQF | 25 lbs.-ft. | 5/8" | 190/230/380/460V AC | NEMA 2 | - | 25 lbs.-in. | 460/230/208V | 5/8" | €1,746.18 | |
| 105612100BQF | 6 lbs.-ft. | 5/8" | 190/230/380/460V AC | NEMA 2 | 230/460/190/380V AC | - | - | - | €1,034.44 | |
| 105613100DNF | 10 lbs.-ft. | 7/8" | 480/575V AC | NEMA 2 | 575/480V AC | - | - | - | €1,217.78 | |
| 105613100DQF | 10 lbs.-ft. | 7/8" | 190/230/380/460V AC | NEMA 2 | - | 10 lbs.-in. | 460/230/208V | 7/8" | €1,230.54 | |
| 105614100DQF | 15 lbs.-ft. | 7/8" | 190/230/380/460V AC | NEMA 2 | - | 15 lbs.-in. | 460/230/208V | 7/8" | €1,405.78 | |
| 105616100DNF | 25 lbs.-ft. | 7/8" | 480/575V AC | NEMA 2 | 575/480V AC | - | - | - | €1,746.18 | |
| 105616100DQF | 25 lbs.-ft. | 7/8" | 190/230/380/460V AC | NEMA 2 | - | 25 lbs.-in. | 460/230/208V | 7/8" | €1,695.14 |
