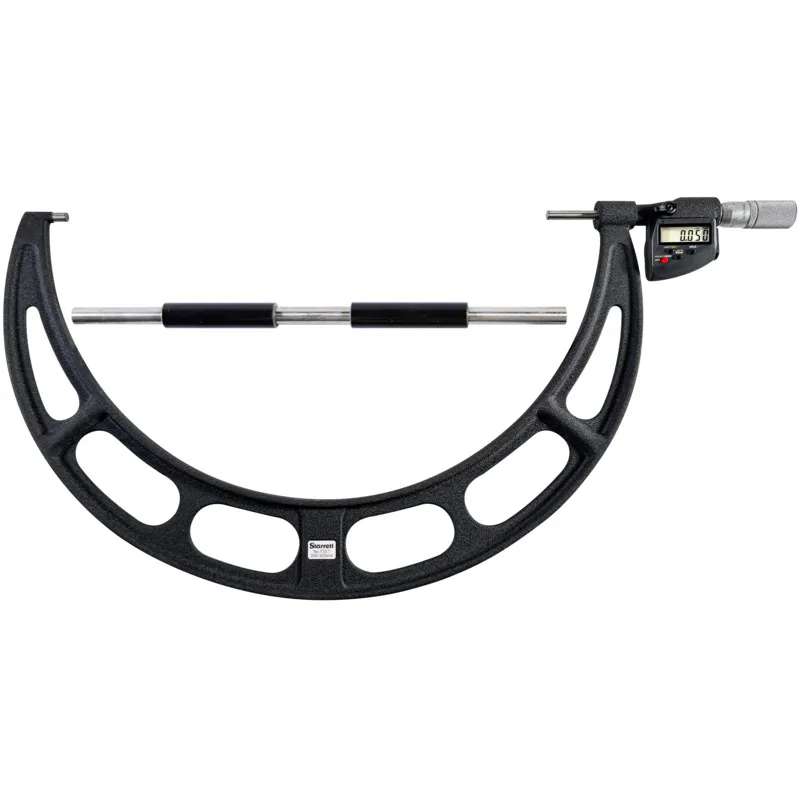

STARRETT 733.1MEXFLZ-325 72173 Digital Outside Micrometer, 11.810 Inch To 12.790 In/300 To 325 mm Range, Ip67
300 mm - 325 mm
Get it by Thursday, Aug 27
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,563.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Digital Outside Micrometer |
| Accuracy | -0.007 mm to +0.007 mm |
| Anvil Material | Carbide |
| Anvil Type | Flat |
| Anvil/spindle Material | Carbide |
| Battery Type | Rechargeable |
| Case Type | Wood |
| Display Type | LCD |
| Included | Output Capability For Data Transmission |
| Ip Rating | IP67 |
| Lock Nut Type | Lever |
| Max. Measurement | 12.79" , 325 mm |
| Mechanical Graduations | 0.5 mm |
| Micrometer Type | Outside |
| Min. Measurement | 300 mm |
| Min. Measurement-inch | 11.81" |
| Output | Cabled Only |
| Power Supply | USB/AC (Power Cable Included), Battery |
| Range | 275 mm to 300 mm |
| Resolution | 0.001 mm |
| Spc Output | Yes |
| Spindle Material | Carbide |
| Spindle Type | Flat |
| Thimble Type | Friction |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 59.69 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Range | Resolution | Spc Output | Case Type | Ip Rating | Max. Measurement | Min. Measurement-inch | Min. Measurement | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
733.1XFLZ-2 | 1" to 2" | 0.00005" | Yes | Plastic | IP67 | - | - | - | €680.89 | |
 |
733.1XFLZ-3 | 2" to 3" | 0.00005" | Yes | Plastic | IP67 | 76 mm | 2" | 50.8 mm | €780.27 | |
 |
733.1XFLZ-4 | 3" to 4" | 0.00005" | Yes | Plastic | IP67 | 101 mm | 3" | 76 mm | €837.37 | |
|
733.1XFLZ-5 | 4" to 5" | 0.001 mm | Yes | Plastic | IP67 | 5" | 4" | 101 mm | €1,054.23 | |
 |
733.1XFLZ-6 | 5" to 6" | 0.00005" | Yes | Plastic | IP67 | 152 mm | 5" | 127 mm | €1,107.93 | |
 |
733.1XFL-1 | 0" to 1" | 0.001 mm | Yes | Plastic | IP67 | 1" | 0" | 0 mm | €582.85 | |
 |
733.1MEXFL-25 | 584 mm to 609 mm | 0.001 mm | Yes | Wood | IP67 | 0.984" | 0" | 0 mm | €615.94 |
