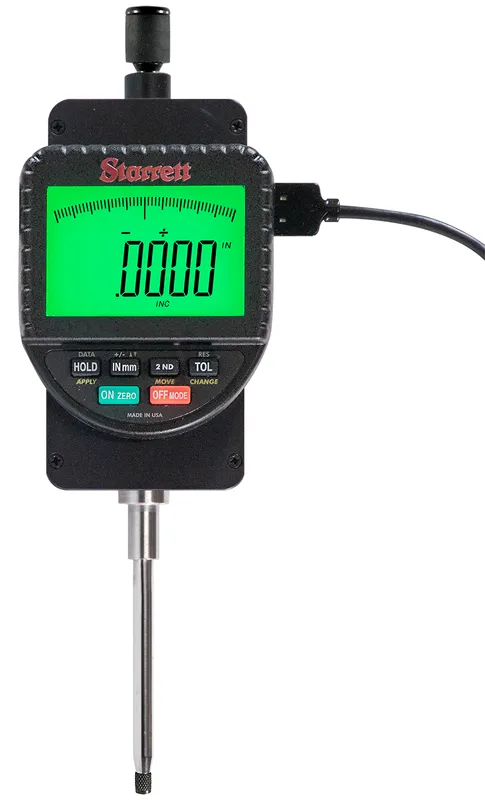

STARRETT 2700-802 72760 Backlit Digital Indicator with Replaceable Back, 0-2 Inch Range, IP54
Item: CU4NNTModel: 2700-802Cross Ref: 53VD67 / 72760
7 In Stock
Ships within 2 days via
10.00% off
€1,302.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indicator |
| Accuracy | -0.001" to +0.001" |
| Battery Included | No |
| Battery Size | Usb/Ac Powered |
| Bezel | Yes |
| Bezel Type | No |
| Compatible Data Output Cable | 2700SCKB |
| Compatible Wireless Transmitter | PT63300-4N |
| Contact Point Dia. | 0.2" |
| Contact Point Shape | Curved |
| Data Output Type | Cable |
| Dial Size | 2 1/2" |
| Dimension Type | Inch, Metric |
| Display Type | Color LCD |
| Included Certification | None |
| Includes | 3/8 In Stem |
| Includes Case | No |
| Ip Rating | IP54 |
| Long Form Calibration Certificate | No |
| Max. Measurement | 2" |
| Max. Measuring Force | 1.471N |
| Maximum Measurement - Mm | 50 mm |
| Minimum Measurement - Inch | 0" |
| Minimum Measurement - Mm | 0 mm |
| Non-magnetic | No |
| Number Of Indicators | 1 |
| Operation Type | Plunger |
| Output | Cabled Only |
| Range | 2" |
| Resolution | 0.0005" |
| Shock Resistant | No |
| Spc Output | Yes |
| Stem Dia. | 3/8" |
| Stem Thread Size | #4-48 |
| Stem Thread Type | Fine |
| Thread Size | #4-48 |
| Variable Resolution | Yes |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 12.7 |
| HS code | 9017308000 |
| Country of Origin | US |
Product Variants
| Product | Model | Range | Accuracy | Contact Point Dia. | Resolution | Includes | Includes Case | Long Form Calibration Certificate | Stem Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2700-803 | 2" | -0.0002" to +0.0002" | 0.2" | 0.0001" | 3/8 In Stem | No | No | 3/8" | €1,460.83 | |
 |
2700-805 | 4" | -0.0002" to +0.0002" | 1/5" | 0.0001" | 3/8 In Stem | No | No | 3/8" | €2,082.47 | |
 |

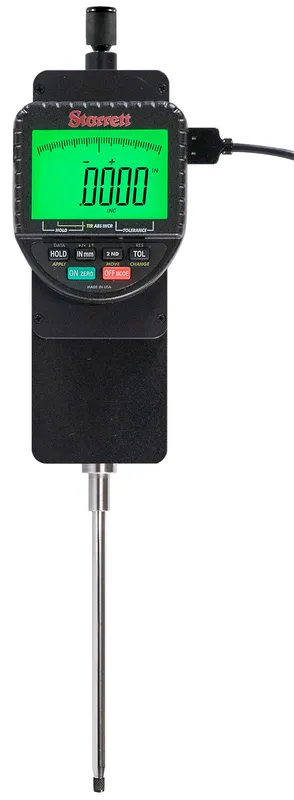

2700-804 | 4" | -0.001" to +0.001" | 0.2" | 0.0005" | 3/8 In Stem | No | No | 3/8" | €1,902.33 | |
 |
2700-801 | 1" | -0.0001" to +0.0001" | 0.2" | 0.00005" | 3/8 In Stem | No | No | 3/8" | €914.40 | |
 |

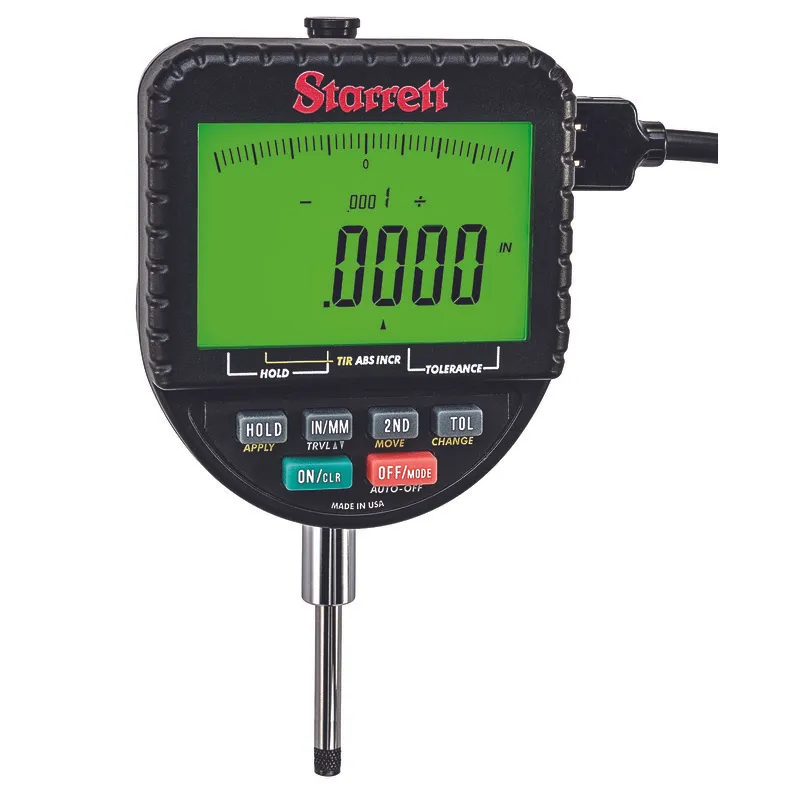

2700-800 | 1" | -0.0002" to +0.0002" | 0.2" | 0.0001" | 3/8 In Stem | No | No | 3/8" | €904.74 |
