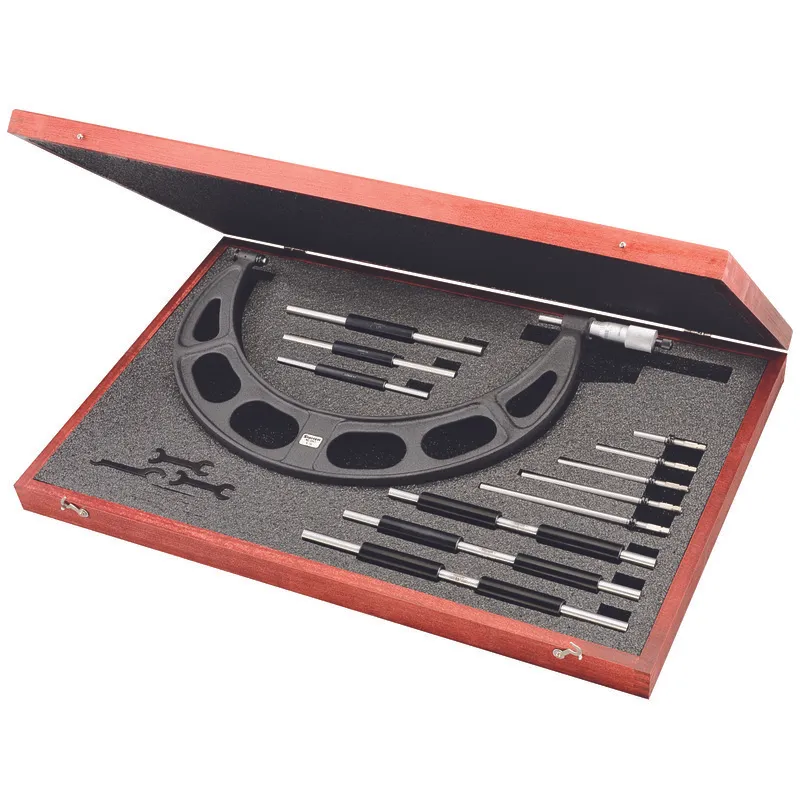

STARRETT 224.1GRLZ 72704 Mechanical Interchangeable-Anvil Outside Micrometer, Mechanical, Inch to 12 Inch Range
Get it by Friday, Aug 21
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,906.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Outside Micrometer |
| Accuracy | -0.0001" to +0.0001" |
| Anvil Material | Steel |
| Anvil Shape | Flat |
| Anvil Size | 0.3" |
| Anvil Type | Flat |
| Anvil/spindle Material | Steel |
| Case Included | Yes |
| Case Type | Wood Case |
| Dimensions Type | Inch |
| Electronic Or Mechanical | Mechanical |
| Features | Combination Ratchet And Speeder For Uniform Pressure And Quick Adjustment, Micro-Lapped Measuring Faces, Quick And Easy Sleeve Adjustment, Resists Rust |
| Frame Material | Cast Iron |
| Graduations | 0.001" |
| Included | 10 In Anvil, 11 In Anvil, 6 In Anvil, 7 In Anvil, 8 In Anvil, 9 In Anvil |
| Lock Nut Type | Knurled Ring Type |
| Long Form Calibration Certificate | Yes |
| Max. Measurement | 12" |
| Micrometer Type | Interchangeable Anvil Micrometer |
| Min. Measurement | 6" |
| Min. Measurement-inch | 6" |
| Operation Type | Mechanical |
| Range | 6" to 12" |
| Resolution | 0.001" |
| Rotating Spindle | Yes |
| Spc Output | No |
| Spindle Dia. | 0.3" |
| Spindle Material | Steel |
| Spindle Size | 0.3" |
| Spindle Type | Flat |
| Thimble Graduations | English |
| Thimble Type | Ratchet |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 75.69 |
| Ship length (cm) | 45.72 |
| Ship width (cm) | 8.38 |
| HS code | 9017304000 |
| Country of Origin | US |
Product Variants
| Product | Model | Range | Spindle Dia. | Accuracy | Max. Measurement | Resolution | Dimensions Type | Long Form Calibration Certificate | Lock Nut Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
224AARLZ | 0" to 4" | 0.3" | -0.0001" to +0.0001" | 4" | 0.001" | Inch | No | Ring | €1,172.96 | |
 |
224ARLZ | 2" to 6" | 0.3" | -0.0001" to +0.0001" | 6" | 0.001" | Inch | No | Ring | €1,056.88 | |
 |
224.1DRLZ | 12" to 16" | 0.3" | -0.0001" to +0.0001" | 16" | 0.001" | Inch | Yes | Knurled Ring Type | €1,780.40 | |
 |
224.1MGRLZ | 150 mm to 300 mm | 7.6 mm | -0.002 mm to +0.002 mm | 300 mm | 0.01 mm | Metric | Yes | Knurled Ring Type | €2,034.77 | |
 |
224.1ERLZ | 16" to 20" | 0.3" | -0.0001" to +0.0001" | 20" | 0.001" | Inch | Yes | Knurled Ring Type | €2,230.53 | |
 |
224.1JRLZ | 20" to 24" | 0.3" | -0.0001" to +0.0001" | 24" | 0.001" | Inch | Yes | Knurled Ring Type | €2,628.25 | RFQ
|
 |
224.1MDRLZ | 300 mm to 400 mm | 7.6 mm | -0.002 mm to +0.002 mm | 400 mm | 0.01 mm | Metric | Yes | Knurled Ring Type | €1,933.27 |
