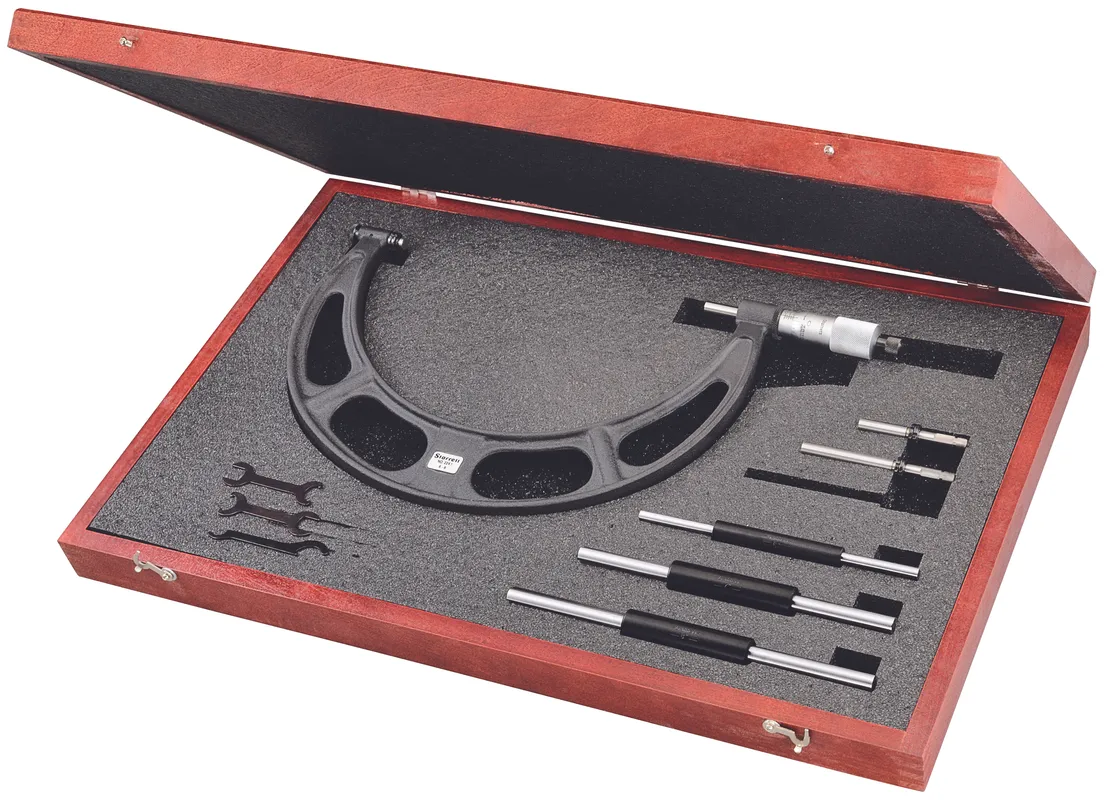

STARRETT 224.1BRLZ 72700 Mechanical Interchangeable-Anvil Outside Micrometer, Mechanical, Inch to Inch Range
Item: CU4NUXModel: 224.1BRLZCross Ref: 53VD26 / 72700
7 In Stock
Ships within 2 days via
5.00% off
€1,451.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Outside Micrometer |
| Accuracy | -0.0001" to +0.0001" |
| Anvil Material | Steel |
| Anvil Shape | Flat |
| Anvil Size | 0.3" |
| Anvil Type | Flat |
| Anvil/spindle Material | Steel |
| Case Included | Yes |
| Case Type | Wood Case |
| Dimensions Type | Inch |
| Electronic Or Mechanical | Mechanical |
| Frame Material | Cast Iron |
| Graduations | 0.001" |
| Included | Yes |
| Lock Nut Type | Knurled Ring Type |
| Long Form Calibration Certificate | Yes |
| Max. Measurement | 9" |
| Micrometer Type | Interchangeable Anvil Micrometer |
| Min. Measurement | 6" |
| Operation Type | Mechanical |
| Range | 6" to 9" |
| Resolution | 0.001" |
| Rotating Spindle | Yes |
| Spc Output | No |
| Spindle Dia. | 0.3" |
| Spindle Material | Steel |
| Spindle Shape | Flat |
| Spindle Type | Flat |
| Thimble Graduations | English |
| Thimble Type | Ratchet |
Shipping Info:
| Ship weight (kg) | 3.06 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 36.83 |
| Ship width (cm) | 24.13 |
| HS code | 9017304000 |
| Country of Origin | US |
Product Variants
| Product | Model | Range | Spindle Dia. | Accuracy | Max. Measurement | Resolution | Dimensions Type | Long Form Calibration Certificate | Lock Nut Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

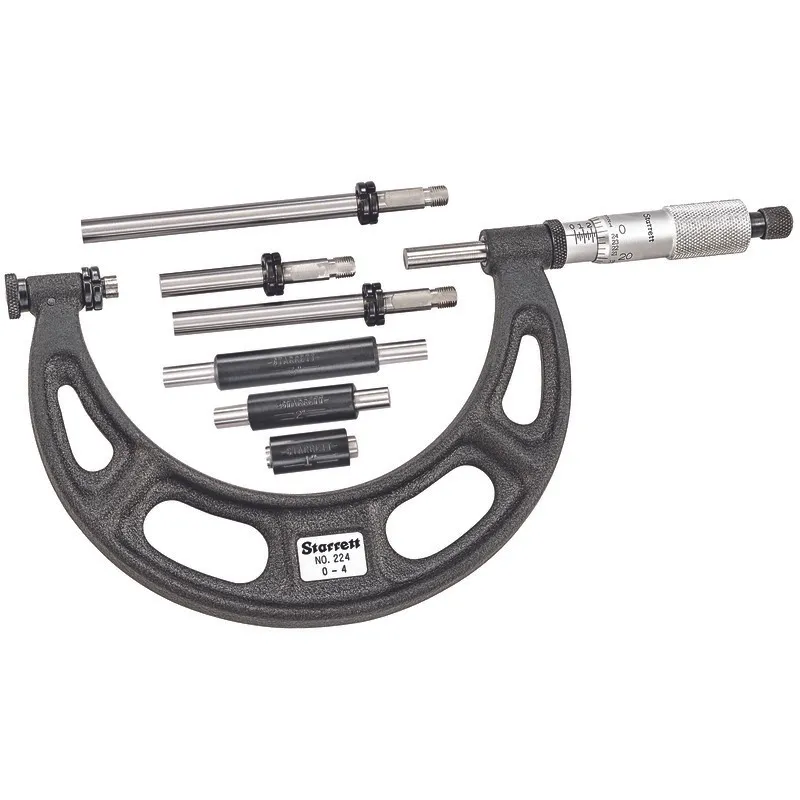

224AARLZ | 0" to 4" | 0.3" | -0.0001" to +0.0001" | 4" | 0.001" | Inch | No | Ring | €1,172.96 | |
 |

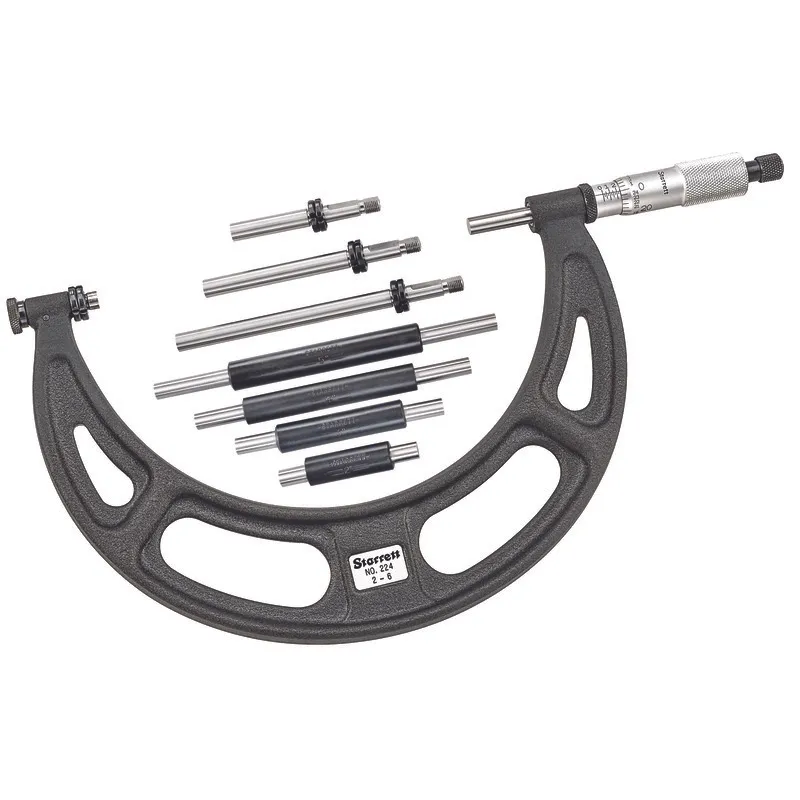

224ARLZ | 2" to 6" | 0.3" | -0.0001" to +0.0001" | 6" | 0.001" | Inch | No | Ring | €1,056.88 | |
 |
224.1DRLZ | 12" to 16" | 0.3" | -0.0001" to +0.0001" | 16" | 0.001" | Inch | Yes | Knurled Ring Type | €1,780.40 | |
 |

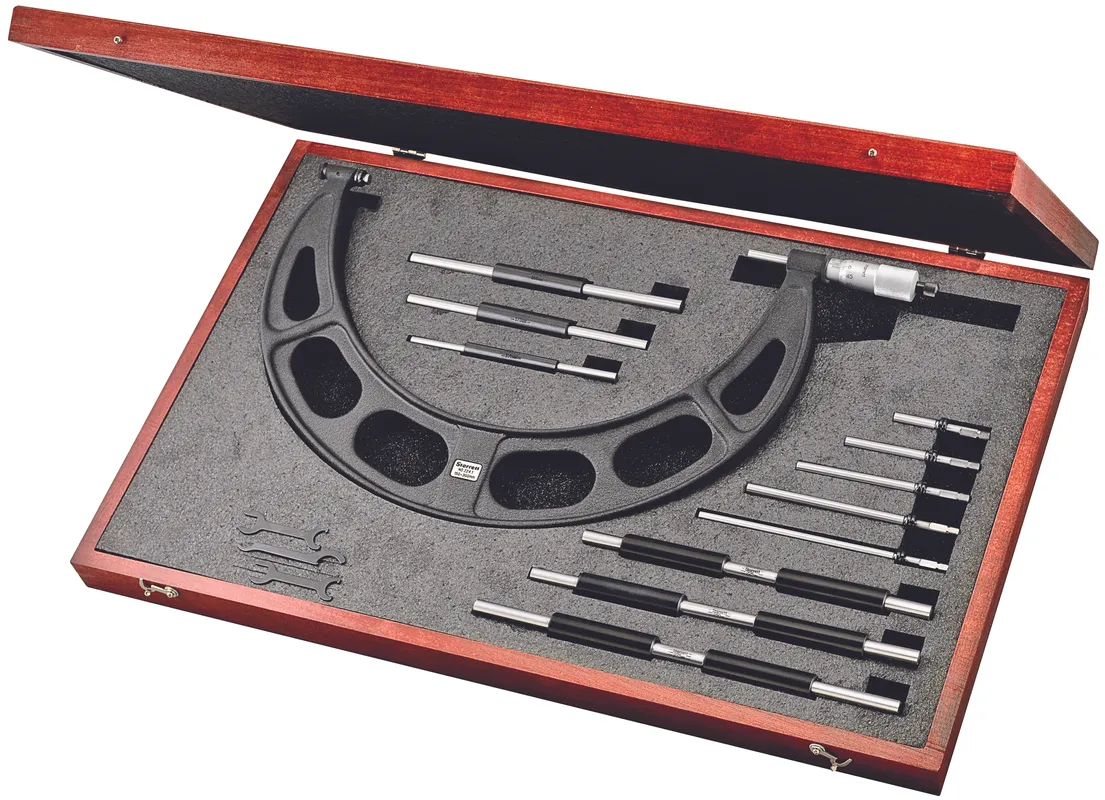

224.1MGRLZ | 150 mm to 300 mm | 7.6 mm | -0.002 mm to +0.002 mm | 300 mm | 0.01 mm | Metric | Yes | Knurled Ring Type | €2,034.77 | |
 |

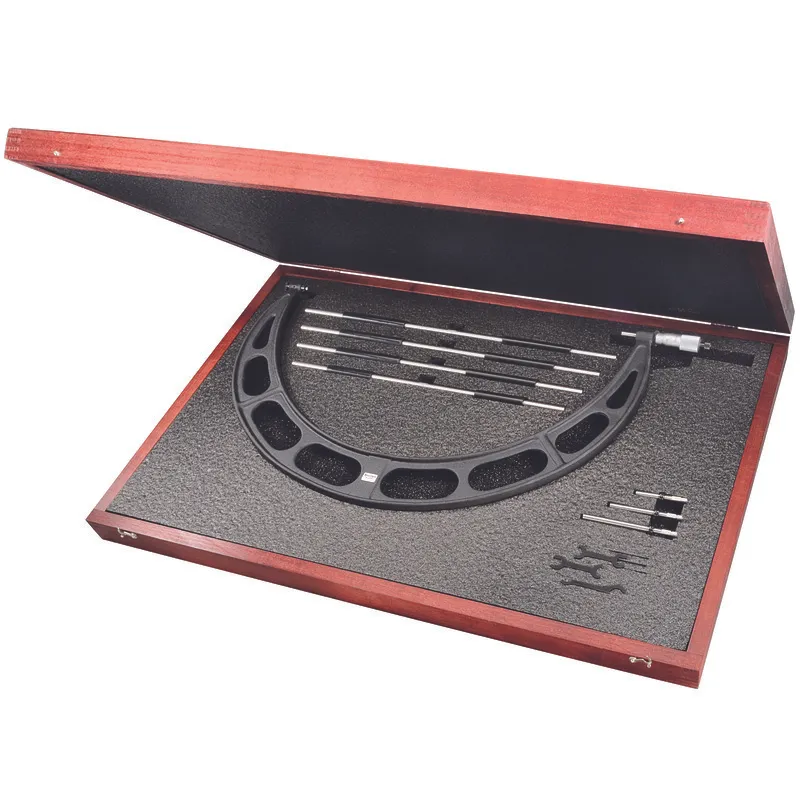

224.1ERLZ | 16" to 20" | 0.3" | -0.0001" to +0.0001" | 20" | 0.001" | Inch | Yes | Knurled Ring Type | €2,230.53 | |
 |

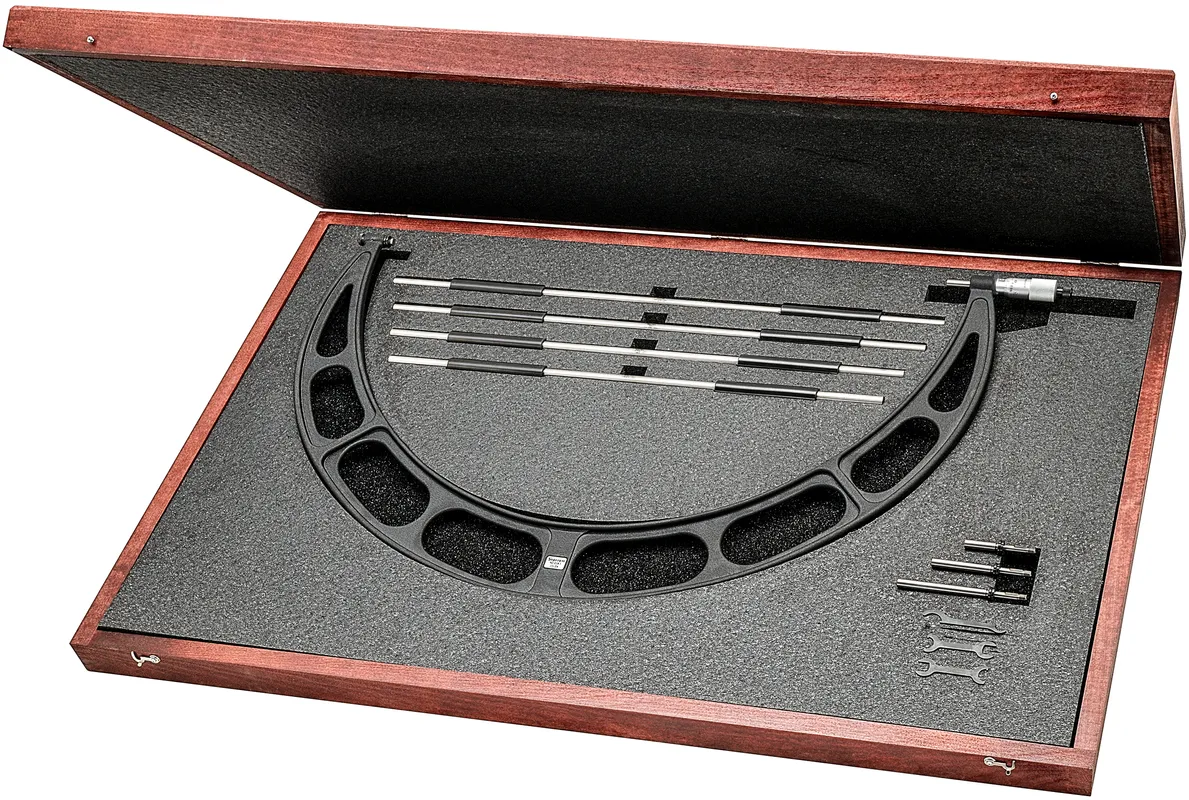

224.1JRLZ | 20" to 24" | 0.3" | -0.0001" to +0.0001" | 24" | 0.001" | Inch | Yes | Knurled Ring Type | €2,628.25 | RFQ
|
 |

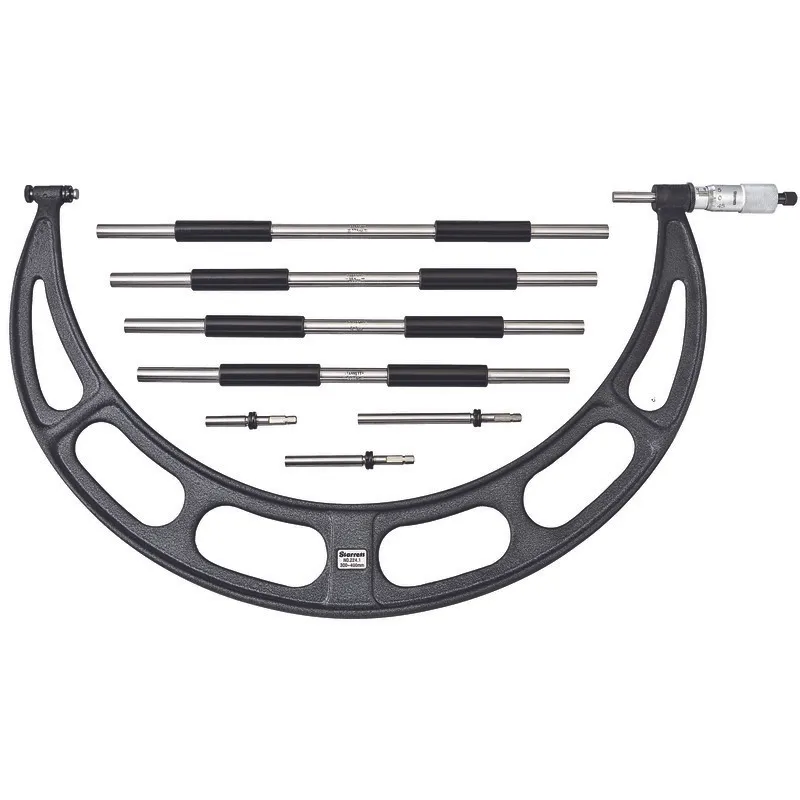

224.1MDRLZ | 300 mm to 400 mm | 7.6 mm | -0.002 mm to +0.002 mm | 400 mm | 0.01 mm | Metric | Yes | Knurled Ring Type | €1,933.27 |
