STARRETT 196B1 Dial Test Indicator, 0 - 0.2 Inch Range, Back Plunger, White Dial | AC4GZA 2ZUJ5 / 50699

STARRETT 196B1 BW797 / 50699 Dial Test Indicator, 0 - 0.2 Inch Range, Back Plunger, White Dial

Item: AC4GZAModel: 196B1Cross Ref: 2ZUJ5 / BW797 / 50699
7 In Stock

Ships within 2 days via

€363.98
10.00% off
€327.58 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Dial Test Indicator
Accuracy -0.001" to +0.001"
Back Type Non Removable
Back Type Non-Removable
Bearing Type Plain
Certification Certificate Of Inspection
Contact Point Dia. 3/8"
Contact Point Dia. 0.375"
Dial Color White
Dial Reading 0-100
Dial Size 1 1/2"
Dimension Type Inch
Graduations 0.001"
Included Certification Certificate Of Inspection
Includes Indicator With 3 Contact Points And Adaptor Only
Indicator Style Back Plunger
Indicator Style Vertical
Long Form Calibration Certificate No
Maximum Measurement - Inch 1/5"
Measurement Range 0" to 0.2"
Measurement Range 0" to 1/5"
Minimum Measurement - Inch 0"
Operation Type Mechanical
Range 0" to 0.2"
Range Per Revolution 0.1"
Reading Continuous
Visual Alert Back Plunger

Shipping Info:

Ship weight (kg) 0.09
Ship height (cm)4.06
Ship length (cm)9.4
Ship width (cm)6.35
HS code9017308000
Country of OriginUS

Product Details:

Starrett 196B1 is a universal back-plunger dial indicator used to measure small linear distances and object sizes. It measures distances between 0 to 0.2 inches with 0.001 inch graduations for precise measurement of the rise or drop in the workpiece. This dial test indicator is used in manufacturing plants, laboratories and the automotive & aerospace industries.

Features:

  • This Starrett dial test indicator features a stainless-steel shank for durability and corrosion resistance.
  • It features satin chrome finish for reduced glare and aesthetic appearance.

Compatible Accessories:

  • 657A Magnetic Base Indicator Holder: These holders have a swivel post assembly to provide universal adjustment in horizontal and vertical planes.

Frequently Asked Questions:

Q. What is the dial size of this Starrett dial test indicator?

A. This dial test indicator has a dial of 1-1/2 inches.

Q. What is the range of this Starrett dial test indicator?

A. This dial test indicator has a range of 200 inches.

Q. What is the dail size of Starrett 196B1 dial test indicator?

A. This dial test indicator has a dail of 1-1/2 inches.

Q. What is the range of this Starrett dial test indicator?

A. This dial test indicator has a range of 200 inches.

Q. What is the purpose of the back plunger feature on Starrett 196B1 dial test indicator?

A. The back plunger feature allows the indicator to be used in confined spaces or tight spots where direct access to the measurement point might be difficult.

Q. What type of bearing is used in this dial test indicator?

A. This test indicator has plain bearings for ensuring smooth and precise movement during measurement tasks. Customers searching for a test indicator with another bearing type can opt for 708ACZ unit having jeweled bearings.

Product Variants

ProductModelOperation TypeRangeReadingDial ReadingBack TypeDial SizeDimension TypeAccuracyPrice

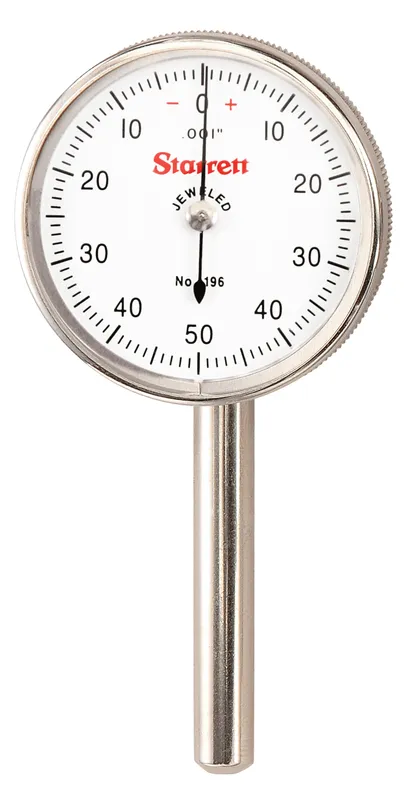

STARRETT 196B5 Test Indicator Back Plunger 0.200 In | AE6MZJ 5UAL6 / 50717 196B5Mechanical0" to 0.2"Balanced0-50-0Non Removable1 1/2"Inch-0.001" to +0.001"€408.94

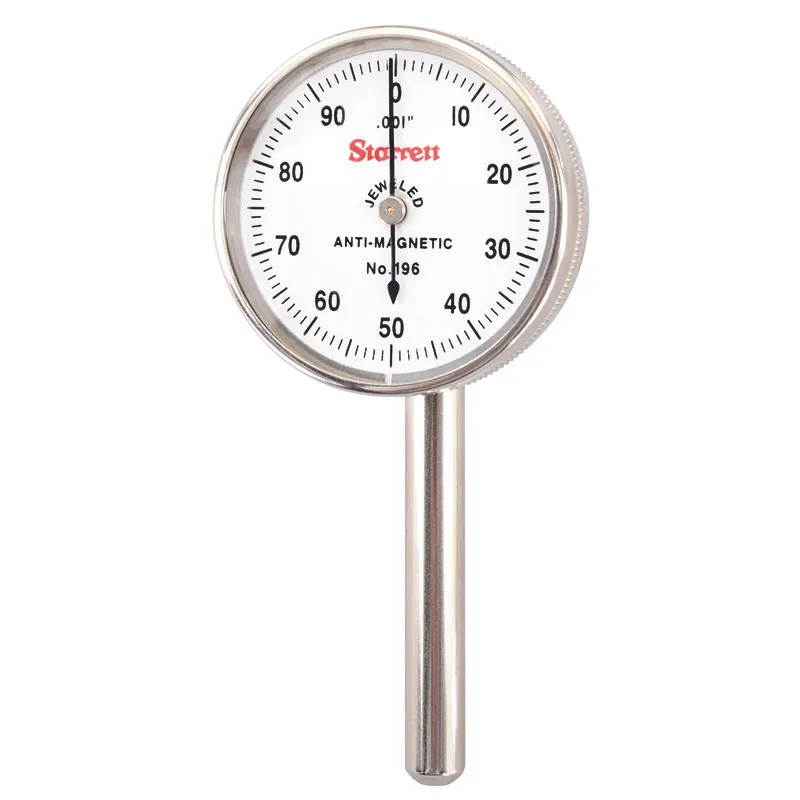

STARRETT 196B6 Dial Indicator 0.001 Grad 0 To 0.200 White | AE9XBB 6NAZ3 / 50702 196B6Back Plunger0.1"Continuous0-100Non Removable Flat1.69"Inch-0.001" to +0.001"€501.52
