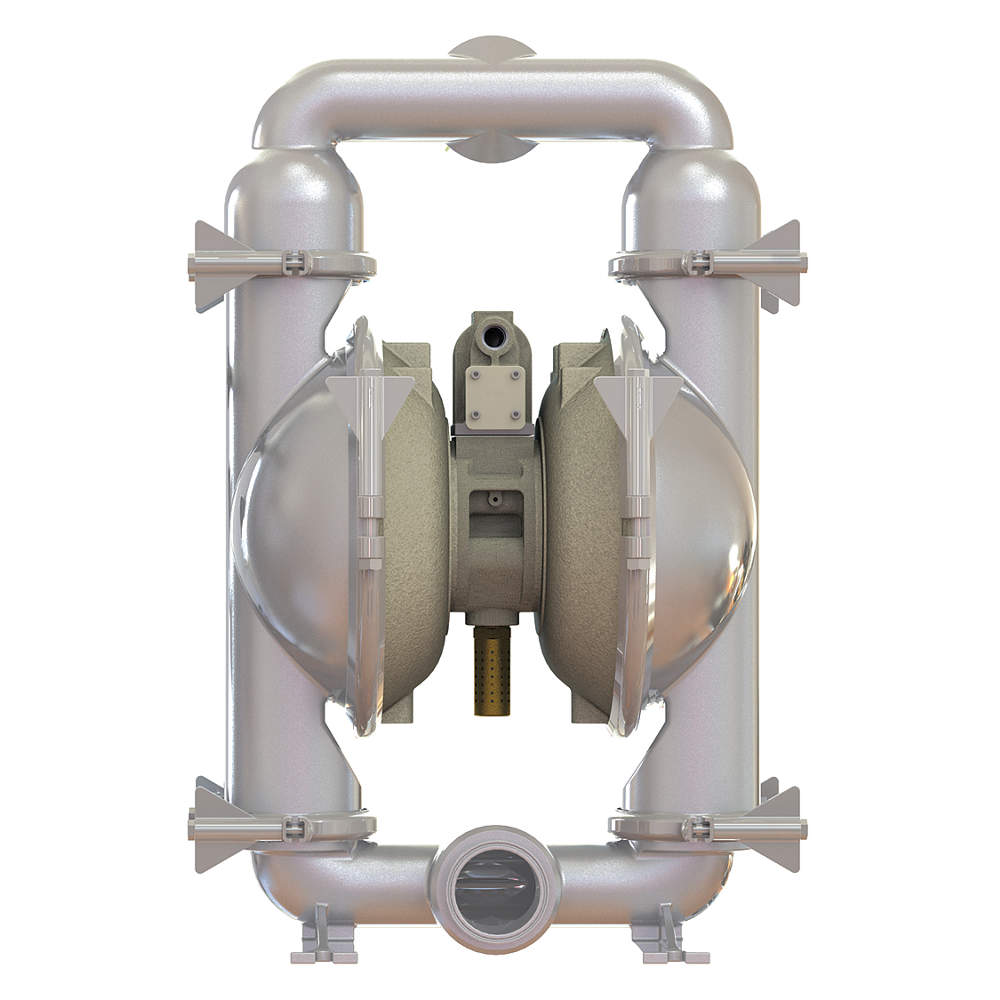

STANDARD PUMP SPFP30NPT Pump 3 Inch 180 Gpm Ptfe Diaphragm
Get it by Monday, Aug 17
5.00% off
€21,192.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 180 SCFM |
| Air Inlet | 1/2" FNPT |
| Air Inlet Size | 1/2" |
| Air Intake Connection Size | 1/2" |
| Ball Material | PTFE |
| Center Section Material | Aluminum |
| Check Seat Material | Stainless Steel |
| Connection Size | 3" |
| Connection Type | Tri Clamp |
| Diaphragm Material | PTFE |
| Discharge Port Configuration | Center |
| Discharge Port Size | 3" |
| Discharge Port Type | Tri Clamp , Tri-Clamp |
| Display Qty | 1 |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 178 GPM |
| Flow Rate @ 120 Psi | 180 GPM |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 130 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 147 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 165 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 170 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Connection Size | 3" |
| Fluid Connection Type | Tri-Clamp |
| For Use With Potable Systems | Yes |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Included | Muffler |
| Inlet Size | 1/2" |
| Inlet Type | FNPT |
| Inlet/outlet Size | 3" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Tri Clamp |
| Max. Air Consumption | 180 SCFM |
| Max. Dia. Solids | 3/8" |
| Max. Discharge Pressure | 120 psi |
| Max. Flow Gpm | 180 |
| Max. Flow Rate | 180 GPM |
| Max. Media Temp. | 220°F |
| Max. Operating Pressure | 120 psi |
| Max. Solid Dia. | 0.38" |
| Max. Viscosity | 30000 cPS |
| Media Discharge Connection Size | 3" |
| Media Discharge Connection Type | Tri Clamp |
| Media Discharge Location | Center |
| Media Intake Connection Size | 3" |
| Media Intake Connection Type | Tri Clamp |
| Media Intake Location | Center |
| Min. Media Temp. | -35°F |
| Nameplate Voltage | Not Applicable |
| Non-wetted Housing Material | Aluminum |
| Operation Type | Air Operated |
| Overall Height | 32" |
| Overall Length | 21 1/2" |
| Overall Width | 17" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Clamp |
| Pump Operation Type | Air |
| Self Priming | Yes |
| Self Priming Dry | 12 ft. |
| Self Priming Wet | 32 ft. |
| Self-priming Dry | 12 ft. |
| Self-priming Wet | 32 ft. |
| Suction Port | 3" TRI Clamp |
| Suction Port Configuration | Center |
| Valve Material | PTFE |
| Valve Type | Oil Less Air Valve |
Shipping Info:
| Ship weight (kg) | 85.05 |
| Ship height (cm) | 81.28 |
| Ship length (cm) | 54.61 |
| Ship width (cm) | 43.18 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Max. Media Temp. | Overall Width | Housing Material | Max. Solid Dia. | Check Seat Material | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N5100020G | 2.5 GPM | Viton | 120°F | 2 2/5" | Acetal | 0.13" | Viton | 75 psi | €438.67 | |
 |
22A592 | 32 GPM | Buna N | 180°F | 9 4/5" | Aluminum | 1/16" | Aluminum | 100 psi | €1,746.23 | |
 |
22A594 | 50 GPM | Buna N | 180°F | 11.3" | Aluminum | 0.19" | Aluminum | 100 psi | €1,902.78 | |
 |
22A595 | 215 GPM | Buna N | 180°F | 2 2/5" | Aluminum | 0.41" | Buna N | 100 psi | €5,139.97 | |
 |
22A596 | 215 GPM | Santoprene | 212°F | 2 2/5" | Aluminum | 0.41" | Santoprene | 100 psi | €4,456.37 | |
 |
22A597 | 14 GPM | Santoprene | 212°F | 7.3" | Stainless Steel | 1/32" | Stainless Steel | 100 psi | €2,282.82 | |
 |
22A598 | 107 GPM | Santoprene | 212°F | 16.1" | Cast Iron | 7/25" | Santoprene | 100 psi | €3,377.76 |
