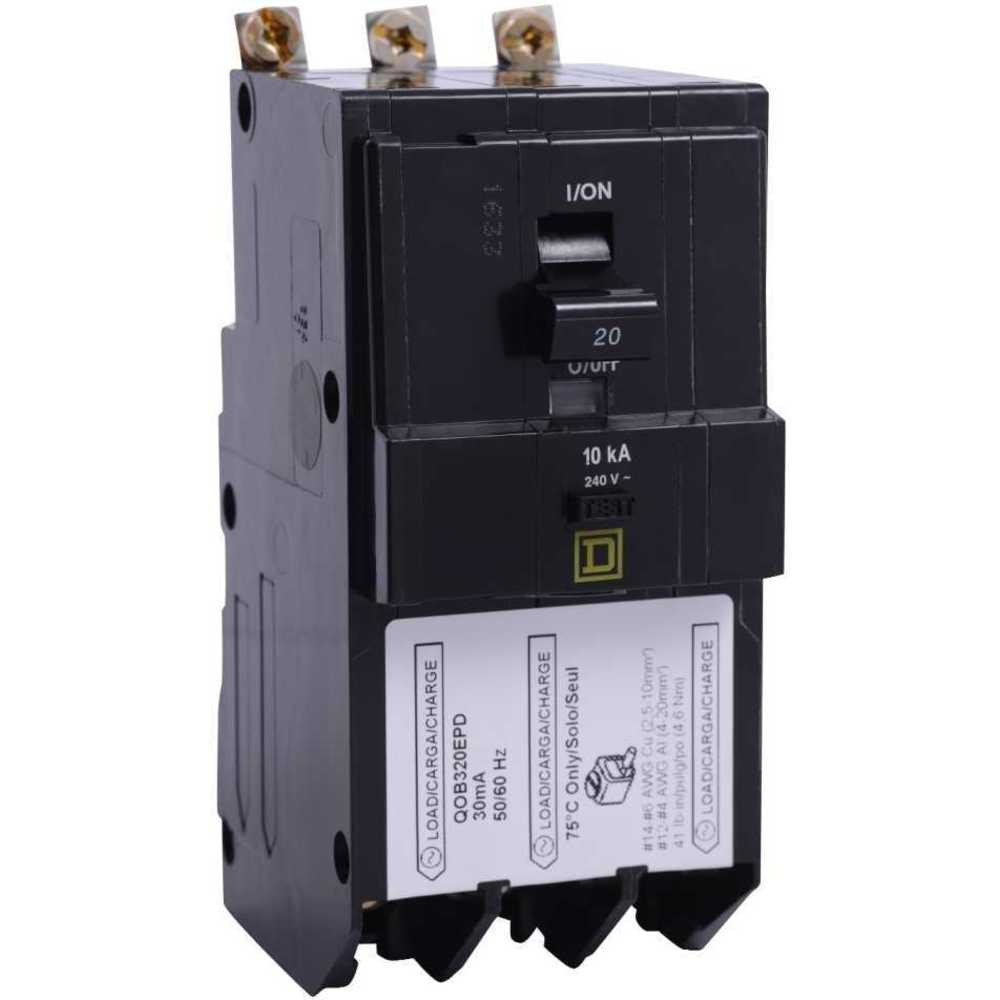

SQUARE D QOB320EPD Bolt On Circuit Breaker 20a 3p 10ka 240v
Item: AG7FXJModel: QOB320EPDCross Ref: 6PHL7
7 In Stock
Ships within 2 days via
10.00% off
€835.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 240V AC |
| Amps | 20A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Compatible Panelboard/load Center Series | NQ, QO |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 2.91" |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame | 100A/QO |
| Length | 4 3/25" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 12 AWG, 14 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Terminal Connection | Lug |
| Terminal Connection Type | Box Lug |
| Width | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 8.89 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Amps | Depth | Terminal Connection | Terminal Connection Type | Max. Air Rating | Phase | Frame Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

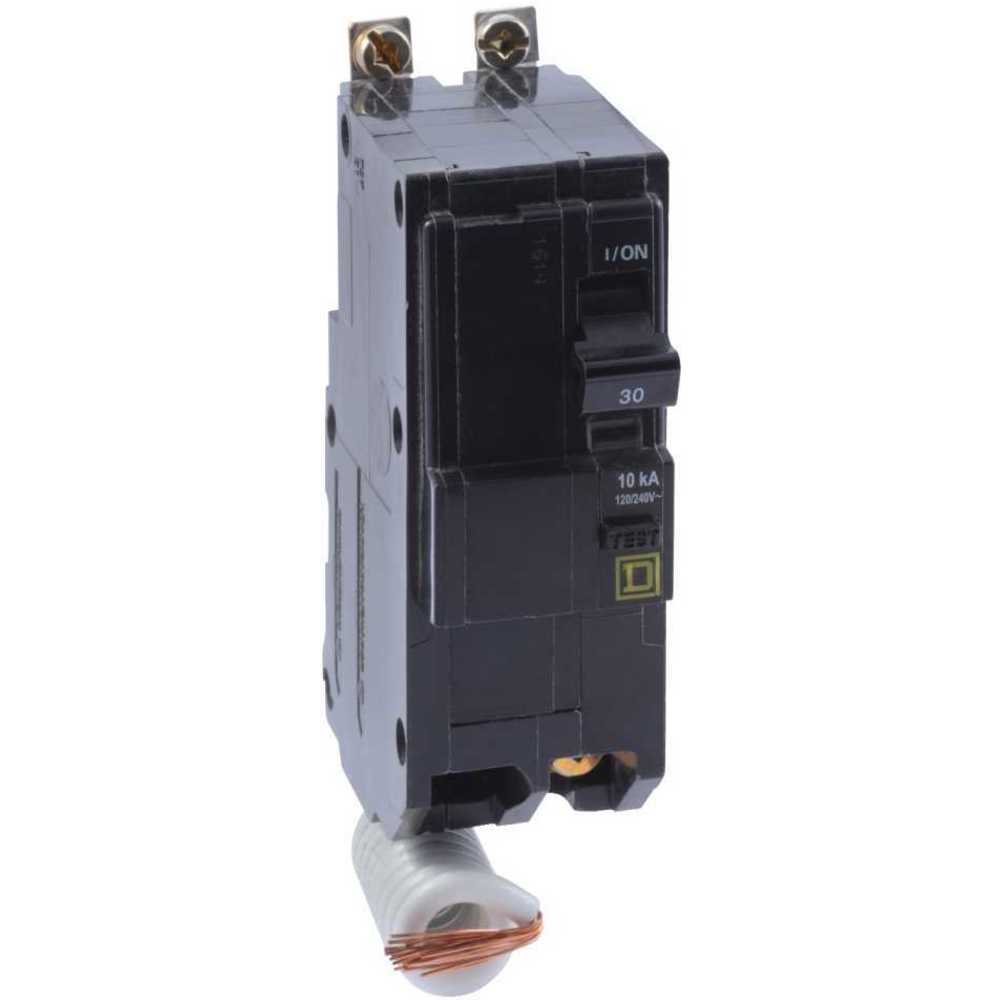

QOB230EPD | 2 | 30A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120/240V AC | Single | - | €1,180.21 | |
 |

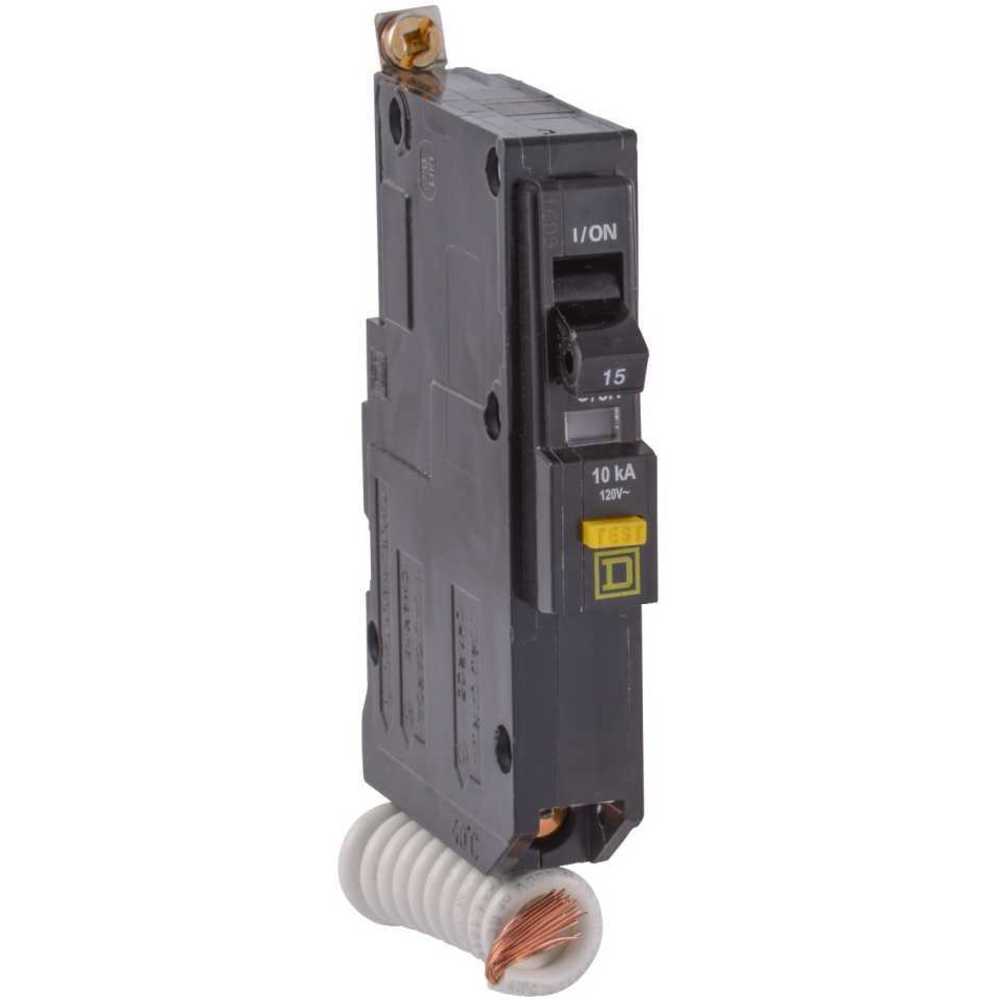

QOB115EPD | 1 | 15A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €772.71 | |
 |
QOB120EPD | 1 | 20A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €776.86 | |
 |

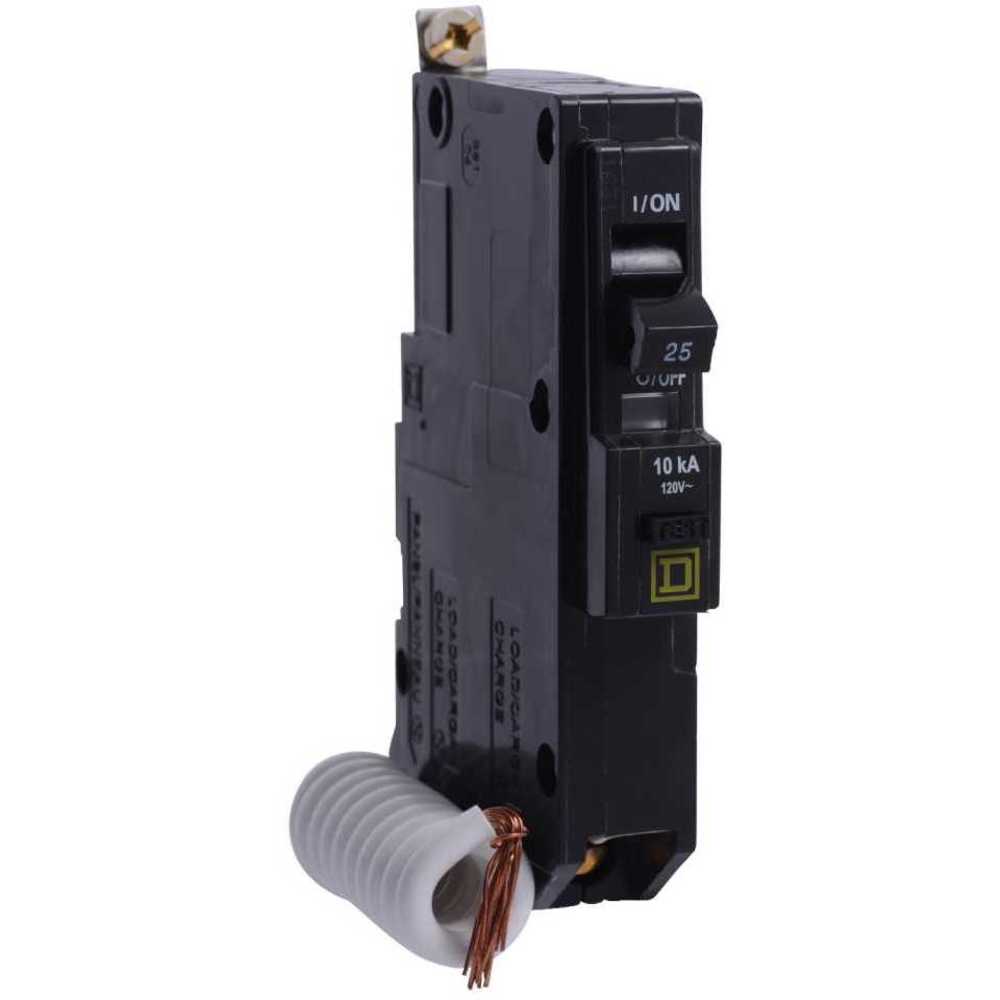

QOB125EPD | 1 | 25A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €745.07 | |
 |

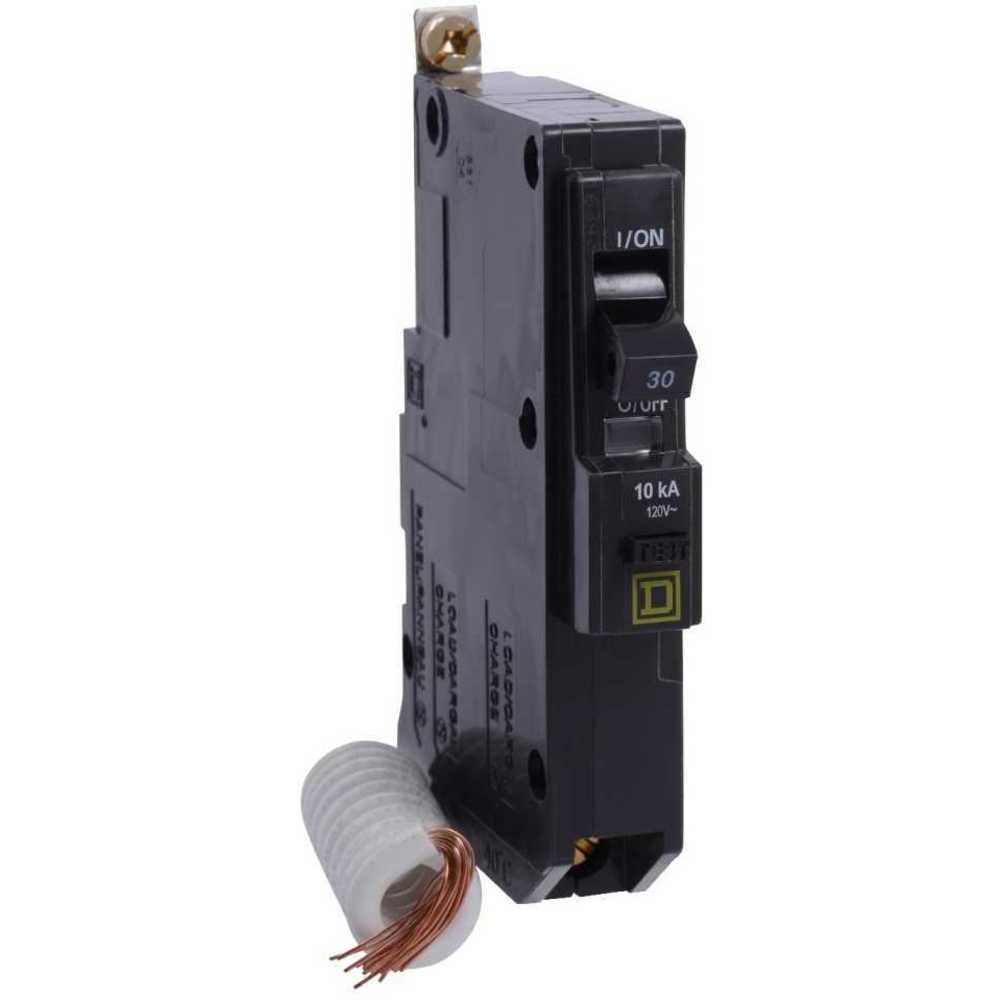

QOB130EPD | 1 | 30A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €776.86 | |
 |
QOB215EPD | 2 | 15A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120/240V AC | Single | - | €1,277.13 | |
 |

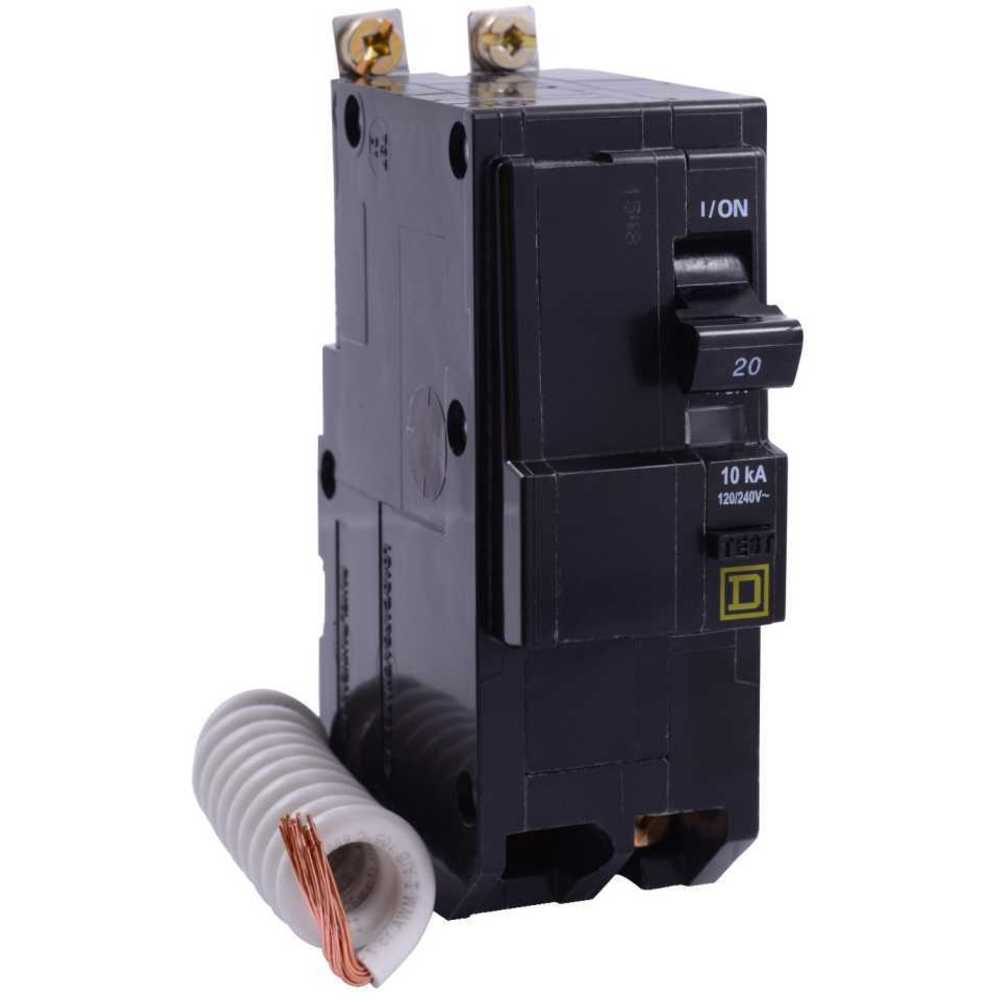

QOB220EPD | 2 | 20A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120/240V AC | Single | - | €1,259.11 |
