SQUARE D QOB230EPD Circuit Breaker 30a
Item: AF9FQPModel: QOB230EPDCross Ref: 2DM67
7 In Stock
Ships within 2 days via
5.00% off
€595.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Ambient Rating | 104°F |
| Amps | 30A |
| Amps Rating | 30A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Ground Fault Equipment Protection , Ground Fault Protecting Class B 30 mA |
| Compatible Panelboard/load Center Series | NQ, QO |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 2.9" , 2.91" |
| Electrical Connection | Pressure Plate |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A/QO |
| Height | 4.1" |
| Interrupt Rating | 10 kA @ 120/240V AC, 10 kA @ 120V AC |
| Length | 4.12" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 12 AWG, 14 AWG |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 2 |
| No. Of Poles | 2 |
| Number Of Poles | 2 |
| Phase | Single |
| Ratings | Not Rated |
| Returnability | Yes |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Screw Clamp |
| Tightening Torque | 35.4 lbf.in. @ 0.006 sq. in. to 0.03 sq. in. @ 12 AWG to 4 AWG |
| Voltage Rating | 120/240V AC |
| Width | 1 1/2" , 1.5" |
| Wire Size | 14 AWG to 8 AWG, 12 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 0.91 |
| Ship length (cm) | 1.37 |
| Ship width (cm) | 0.56 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Amps | Depth | Terminal Connection | Terminal Connection Type | Max. Air Rating | Phase | Frame Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOB115EPD | 1 | 15A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €273.68 | |
 |
QOB120EPD | 1 | 20A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €363.04 | |
 |
QOB125EPD | 1 | 25A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €798.30 | |
 |
QOB130EPD | 1 | 30A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120V AC | Single | - | €363.04 | |
 |
QOB215EPD | 2 | 15A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120/240V AC | Single | - | €626.74 | |
 |
QOB220EPD | 2 | 20A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120/240V AC | Single | - | €626.74 | |
 |

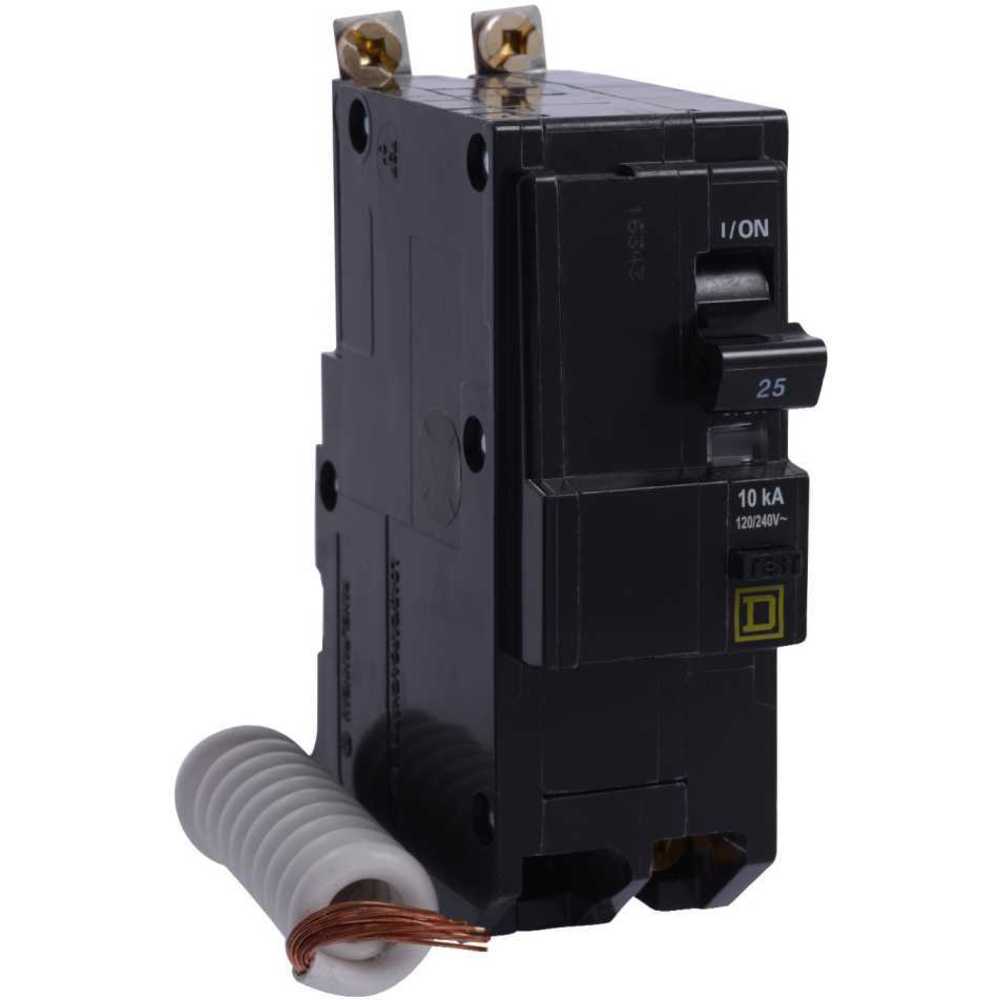

QOB225EPD | 2 | 25A | 2.91" | Pressure Plate | Screw Clamp | 10 kA At 120/240V AC | Single | - | €661.03 |
