SQUARE D QGL32080 Molded Case Circuit Breaker, 65kAIC at 240V, 80A, 3 Pole
Get it by Tuesday, Mar 31
€2,310.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | 104°F to 158°F |
| Amps | 80A |
| Breaking Capacity | 65 kA 120/208V AC 50/60 Hz UL, 65 kA 240V AC 50/60 Hz UL |
| Breaking Capacity Code | G |
| Circuit Breaker Application | HACR Rated |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Operating Handle |
| Depth | 3.93" |
| Device Application | Distribution |
| Electrical Connection | Lugs, Load, Line |
| Frame Type | QGL |
| Height | 6.47" |
| Line Rated Amps | 80A |
| Local Signalling | 1 Trip Indicator Green |
| Magnetic Hold Amps | 1000A |
| Magnetic Tripping Amps | 1800A |
| Mechanical Durability | 1000 Cycles Loaded, 5000 Cycles No Load |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Power Wire Stripping Length | 0.9" |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Voltage | 240V |
| Returnability | Yes |
| Tightening Torque | 247.8 lbf.in. @ 0.04 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Voltage | 240V |
| Voltage Type | AC |
| Width | 4.5" |
Shipping Info:
| Ship weight (kg) | 2.13 |
| Ship height (cm) | 16.43 |
| Ship length (cm) | 9.98 |
| Ship width (cm) | 11.43 |
| Country of Origin | US |
Product Variants
| Model | Number Of Poles | Amps | Voltage Type | Frame Type | Voltage | Control Type | Mounting Support | Aic Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

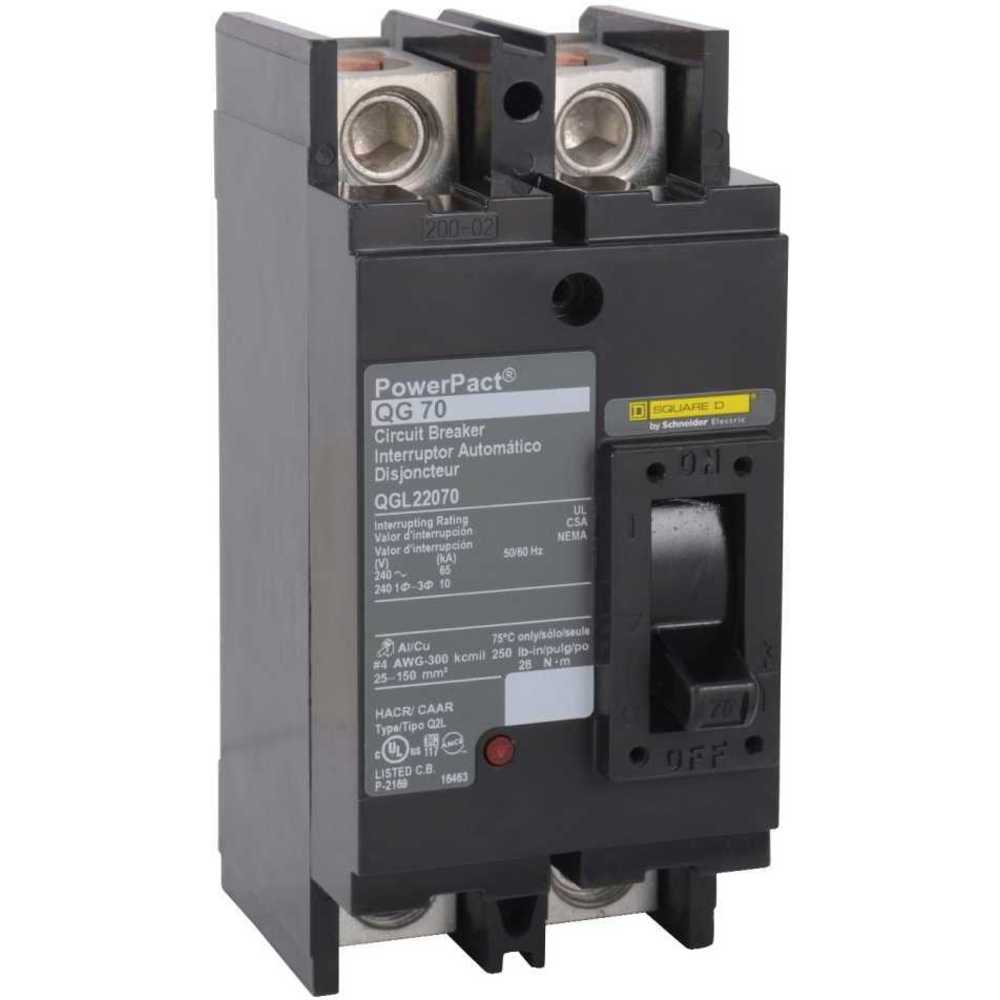

| QGL22100 | 2 | - | AC | QGL | 240V | Operating Handle | Lug | 65 kAIC @ 240V | €1,312.99 | |
| QGL22125 | 2 | - | AC | QGL | 240V | Operating Handle | Lug | 65 kAIC @ 240V | €1,312.99 | |
| QGL22150 | 2 | - | AC | QGL | 240V | Operating Handle | Lug | 65 kAIC @ 240V | €1,312.99 | |
| QGL22175 | 2 | - | AC | QGL | 240V | Operating Handle | Lug | 65 kAIC @ 240V | €2,020.04 | |
| QGL22200 | 2 | - | AC | QGL | 240V | Operating Handle | Lug | 65 kAIC @ 240V | €1,312.99 | |
| QGL22225 | 2 | - | AC | QGL | 240V | Operating Handle | Lug | 65 kAIC @ 240V | €1,312.99 | |
| QGL32090 | 3 | - | AC | QGL | 240V | Operating Handle | Lug | 65 kAIC @ 240V | €1,818.08 |
