SQUARE D PGL36100 Circuit Breaker 1000a 3p 600vac Box Lug | AG7FVM 6NHE6

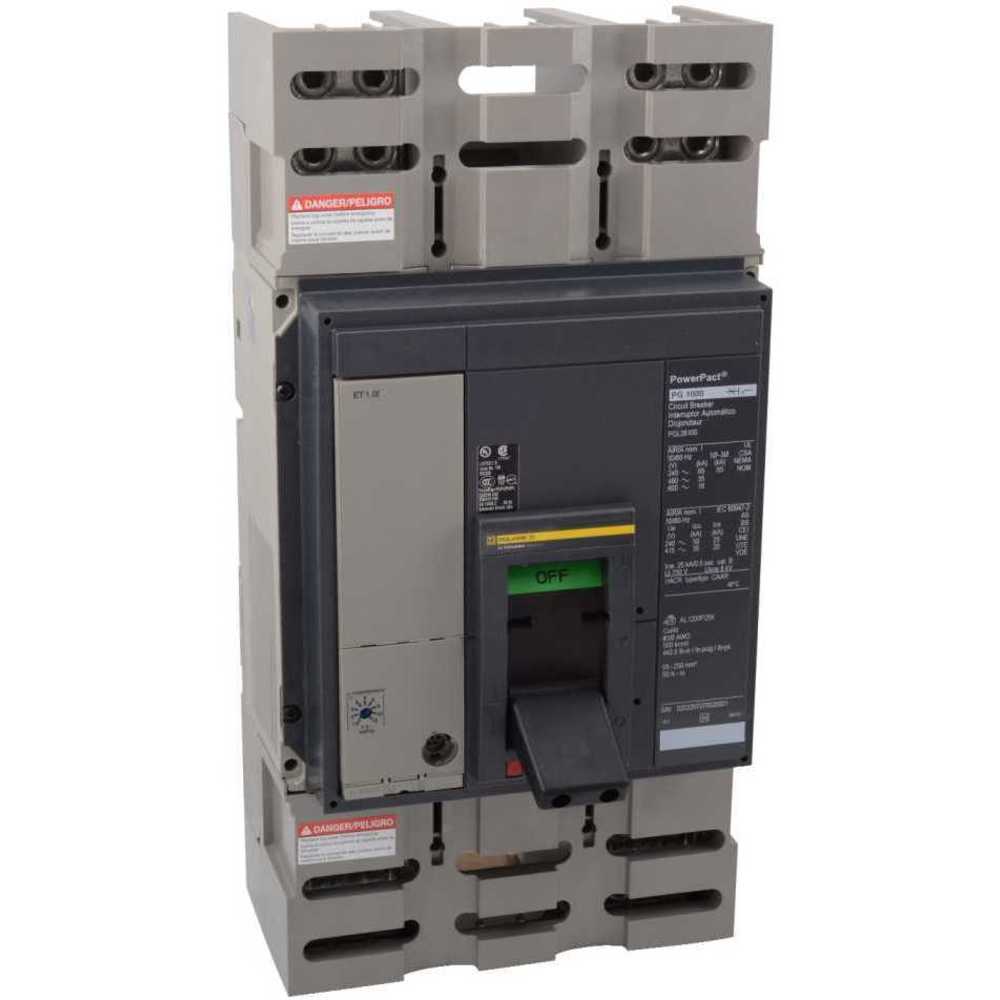

SQUARE D PGL36100 Circuit Breaker 1000a 3p 600vac Box Lug

Item: AG7FVMModel: PGL36100Cross Ref: 6NHE6
In Stock : 6 Units
Amps

Get it by Friday, Mar 27

€12,697.37
5.00% off
€12,062.51 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Circuit Breaker
Ac Voltage Rating 600V AC
Ambient Air Temp. For Operation -13°F to +158°F
Ambient Air Temp. For Storage -58°F to +185°F
Amps 1000A
Awg Gauge 3/0 AWG to 500 kcmil
Breaking Capacity AIR 65 kA 240V AC 50/60 Hz UL 489, AIR 35 kA 480V AC 50/60 Hz UL 489, AIR 18 kA 600V AC 50/60 Hz UL 489, Icu 50 kA 240V AC 50/60 Hz IEC 60947-2, Icu 35 kA 380/415V AC 50/60 Hz IEC 60947-2
Breaking Capacity Code G
Circuit Breaker Actuator Toggle
Circuit Breaker Application HACR Rated
Circuit Breaker Mounting Style Lug In/Lug Out
Circuit Breaker Type Standard
Component Type Circuit Breaker
Continuous Amps Rating 80%
Control Type Toggle
Dc Voltage Not Rated
Dc Voltage Rating Not Rated
Depth 8.05" , 8.1"
Device Application Distribution
Electrical Connection Lugs, Load, Line
For Use With Equipment Gear
Frame 1200A/P
Height 12.9" , 16.16"
High Amp Trip Setting 10,000A
High Amp Trip Setting 10000A
Instantaneous Trip Adjustable
Ip Degree Of Protection IP40
Line Rated Amps 1000A
Local Signalling 1 Trip Indicator Green
Long Time Pick-up Adjustment Range 1"
Low Amp Trip Setting 2000A
Max. Air Rating 18 kA At 600V AC
Max. Air Rating 18kA
Max. Wire Size 500 MCM
Min. Wire Size 3/0 AWG
Mounting Lug In, Lug Out
Network Frequency 50/60 Hz
No. Of Poles 3
Number Of Poles 3
Number Of Slots 5
Operating Altitude 0 ft.. to 6561.68 ft. Without Derating, 13123.36 ft. With Derating
Phase 3
Phase Connection ABC
Pollution Degree 3 IEC 60947-1
Power Wire Stripping Length 1.2"
Quality Labels ce.png
Quantity Per Set 1
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 750V
Rated Operational Voltage 600V
Rated Service Breaking Capacity 25 kA @ 240V AC @ 50/60 Hz, 20 kA @ 380/415V AC @ 50/60 Hz
Returnability Yes
Terminal Connection Line/Load Lug
Terminal Connection Type Box Lug
Tightening Torque 442.5 lbf.in. @ 0.1 sq. in. to 0.4 sq. in. @ 4 x 3/0 AWG to 500 kcmil, 8.9 lbf.in. to 11.5 lbf.in.
Trip Type Electronic
Trip Unit Name ET 1.0I
Trip Unit Technology Electronic, Basic, ET 1I, I
Width 8.27" , 8.3"

Shipping Info:

Ship weight (kg) 16.91
Ship height (cm)32.77
Ship length (cm)20.57
Ship width (cm)21.08
HS code8536200020

Product Details:

    • Instantaneous Trip (Adjustable)
