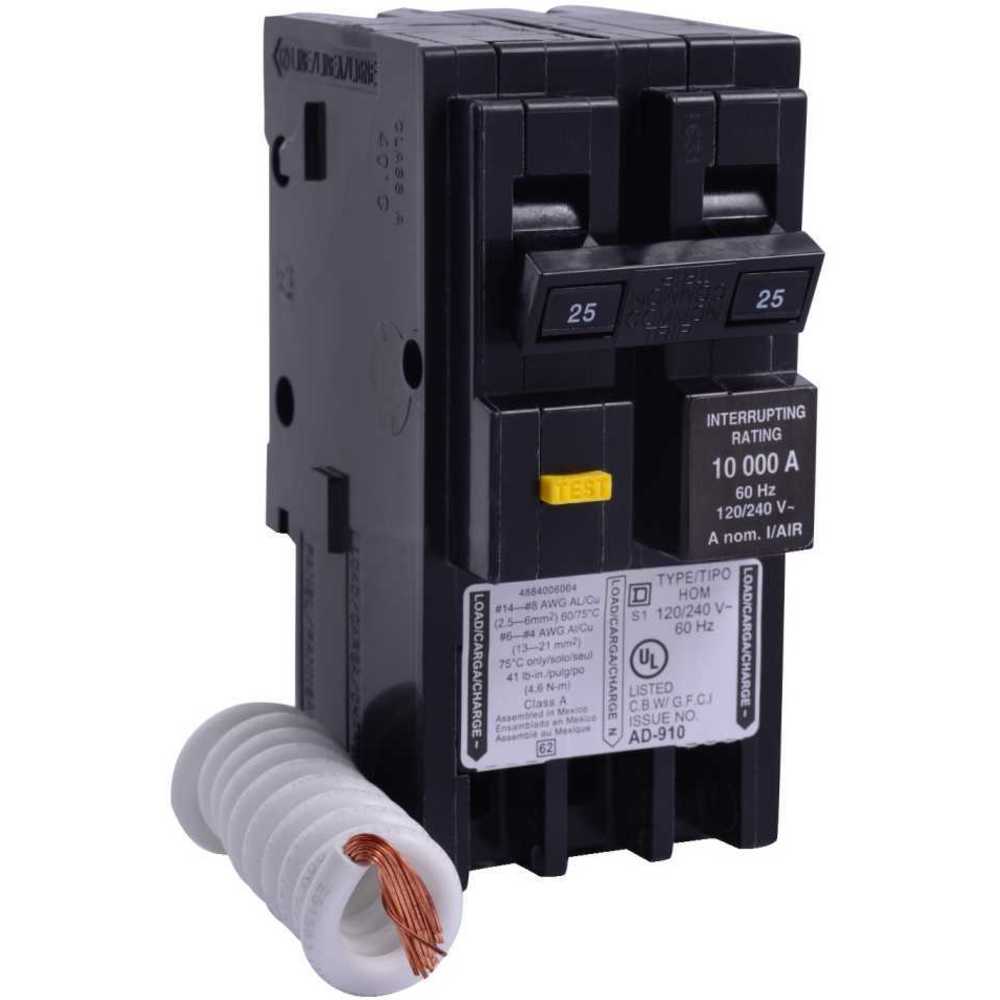

SQUARE D HOM225GFI Plug-in Circuit Breaker, 25 A, 2p, 10kA@240 V
Item: AF9HDYModel: HOM225GFICross Ref: 2GNY1
7 In Stock
Ships within 2 days via
5.00% off
€246.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Ambient Air Temp. For Operation | 104°F |
| Amps | 25A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Ground Fault Circuit Interrupter (Class A-5 Ma) |
| Compatible Panelboard/load Center Series | Series HOM |
| Dc Voltage | Not Rated |
| Depth | 2.98" |
| Electrical Connection | Screw Clamp Terminal |
| For Use With | Homeline Load Center |
| Frame Size | 100A/HOM |
| Height | 3.13" |
| Length | 3.13" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 4 AWG, 6 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 12 AWG, 14 AWG |
| Mounting Type | Plug In |
| No. Of Poles | 2 |
| No. Of Spaces | 2 |
| Phase | 1 |
| Rating | HACR Rated |
| Returnability | Yes |
| Short Circuit Amps | 10 kA |
| Terminal Connection | Screw Clamp |
| Terminal Connection Type | Screw Clamp |
| Tightening Torque | 4.6 N-m |
| Voltage | 120/240V AC |
| Width | 2" |
| Wire Size | 12 AWG , 12 AWG to 4 AWG, 14 AWG to 6 AWG |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 7.57 |
| Ship length (cm) | 7.95 |
| Ship width (cm) | 5.08 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Square D HOM225GFI is a Homeline Series miniature case circuit breaker designed for use with Homeline load centres to protect the connected equipment from overloads and short-circuits.
- This 2-pole Square D circuit breaker operates at 120 / 240 V and 25 A, and has an ampere interrupting capacity of 10 kA. It includes a terminal nut that can accommodate aluminium wires ranging from 12 AWG to 4 AWG.
Product Variants
| Product | Model | No. Of Poles | Amps | Voltage | Depth | Returnability | Electrical Connection | Rating | No. Of Spaces | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HOM115 | 1 | 15A | 120/240V AC | 2.98" | Yes | Clamp Terminal For 2 Cables | HACR and Switching Duty Rated | 1 | €13.57 | |
 |
HOM115GFI | 1 | 15A | 120V AC | 2.98" | Yes | Screw Clamp Terminal | HACR Rated | 1 | €133.36 | |
|
HOM120 | 1 | 20A | 120/240V AC | 2.98" | Yes | Clamp Terminal For 2 Cables | HACR and Switching Duty Rated | 1 | €13.57 | |
 |
HOM120GFI | 1 | 20A | 120V AC | 2.98" | Yes | Screw Clamp Terminal | HACR Rated | 1 | €133.36 | |
|
HOM130 | 1 | 30A | 120/240V AC | 2.98" | Yes | Clamp Terminal For 2 Cables | HACR Rated | 1 | €13.57 | |
 |
HOM140 | 1 | 40A | 120/240V AC | 2.98" | Yes | Box Lugs | HACR Rated | 1 | €16.90 | |
|
HOM150 | 1 | 50A | 120/240V AC | 2.98" | Yes | Box Lugs | HACR Rated | 1 | €16.90 |
