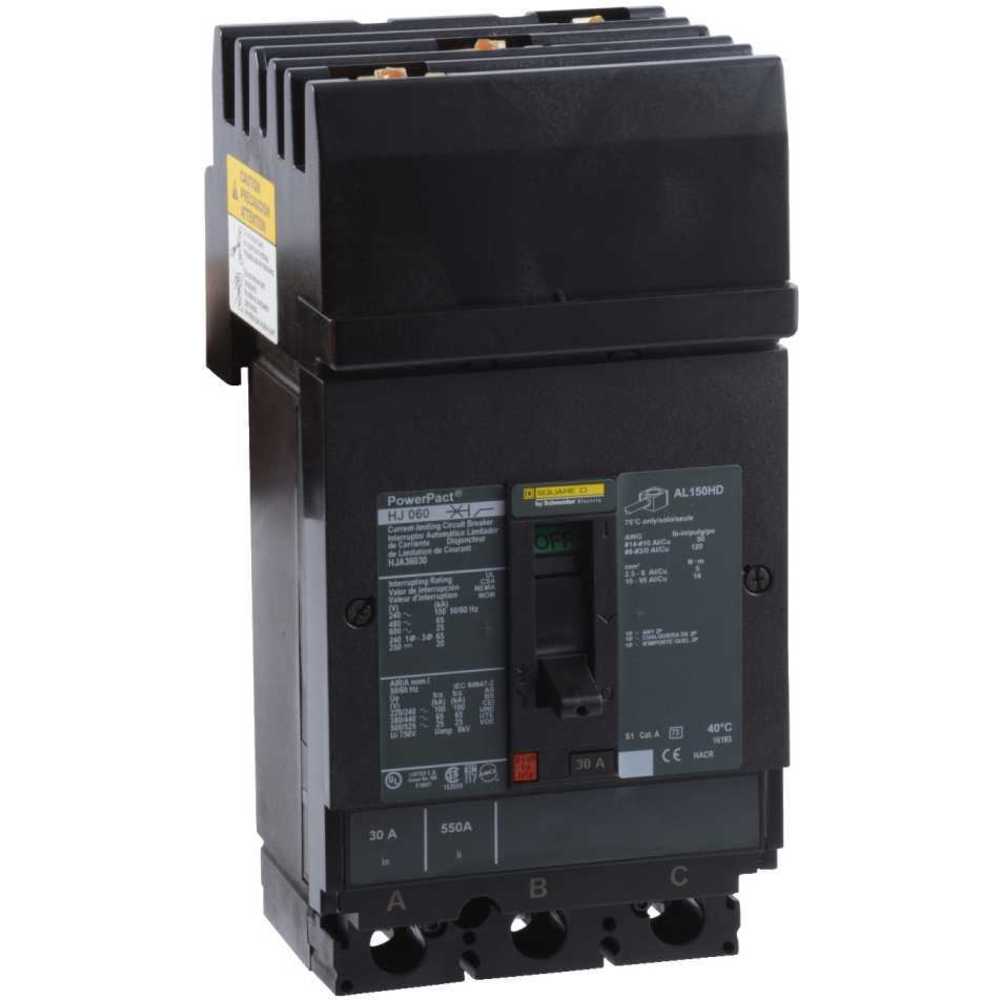

SQUARE D HJA36030 Circuit Breaker I-line Style Plug-in 30 Amp 600vac 3p 65kaic@480v | AG8PLK

SQUARE D HJA36030 Circuit Breaker I-line Style Plug-in 30 Amp 600vac 3p 65kaic@480v

Item: AG8PLKModel: HJA36030Cross Ref: 48R122
7 In Stock
30A
3

Ships within 2 days via

€1,498.22
5.00% off
€1,423.30 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Circuit Breaker
Aic Rating 65 kAIC @ 480V
Ambient Air Temp. For Operation -13°F to +158°F
Ambient Air Temp. For Storage -58°F to +185°F
Awg Gauge 14 AWG to 3/0 AWG
Breaking Capacity 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489
Breaking Capacity Code J
Circuit Breaker Application HACR Rated
Color Black
Communication Interface Modbus, Ethernet
Component Type Circuit Breaker
Continuous Amps Rating 80%
Control Type Toggle
Depth 3.4"
Device Application Distribution
Electrical Connection I-Line Connection, Line, Lugs, Load
Frame Type HJA
Height 6 2/5"
Ip Degree Of Protection IP40
Line Rated Amps 30A
Local Signalling Switched Off 1 Trip Indicator Green
Magnetic Hold Amps 350A
Magnetic Tripping Amps 750A
Mounting Height 4.5"
Mounting Mode I Line Bracket
Mounting Support Bracket
Network Frequency 50/60 Hz
No. Of Poles 3
Number Of Poles 3
Number Of Slots 5
Operating Altitude 0 ft. to 6561.68 ft. Without Derating, 5000m With Derating
Phase Connection ABC
Pollution Degree 3 IEC 60947-1
Power Wire Stripping Length 0.6"
Quality Labels ce.png
Quantity Per Set 1
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 750V
Rated Operational Voltage 690V
Rated Service Breaking Capacity 100 kA @ 220/240V AC @ 50/60 Hz, 65 kA @ 380/440/415V AC @ 50/60 Hz, 25 kA @ 500/525V AC @ 50/60 Hz, 20 kA @ 250V DC, 20 kA @ 500V DC
Returnability Yes
Suitability For Isolation Yes, IEC 60947-2
Tightening Torque 44.3 lbf.in. @ 0.004 sq. in. to 0.009 sq. in. @ 14 AWG to 10 AWG, 123.9 lbf.in. @ 0.02 sq. in. to 0.1 sq. in. @ 8 AWG to 3/0 AWG
Trip Unit Technology Thermal-Magnetic
Utilisation Category Category A
Voltage 600V
Voltage Type AC
Width 4.09"

Shipping Info:

Ship weight (kg) 2.7
Ship height (cm)15.49
Ship length (cm)38.1
Ship width (cm)21.59
Country of OriginMX

Product Variants

ProductModelNumber Of PolesPhase ConnectionAmpsAic RatingFrame TypeVoltageVoltage TypeColorPrice
SQUARE D HJA260351 Circuit Breaker I-line Style Plug-in 35 Amp 600vac 2p 65kaic@480v | AG8PKK HJA2603512AB-65 kAIC @ 480VHJA600VACBlack€2,692.80
SQUARE D HJA260352 Circuit Breaker I-line Style Plug-in 35 Amp 600vac 2p 65kaic@480v | AG8PKL HJA2603522AC-65 kAIC @ 480VHJA600VACBlack€1,582.37
SQUARE D HJA260354 Circuit Breaker I-line Style Plug-in 35 Amp 600vac 2p 65kaic@480v | AG8PKM HJA2603542BC-65 kAIC @ 480VHJA600VACBlack€1,336.83
SQUARE D HJA260802 Circuit Breaker I-line Style Plug-in 80 Amp 600vac 2p 65kaic@480v | AG8PKN HJA2608022AC-65 kAIC @ 480VHJA600VACBlack€1,534.54
SQUARE D HJA260804 Circuit Breaker I-line Style Plug-in 80 Amp 600vac 2p 65kaic@480v | AG8PKP HJA2608042BC-65 kAIC @ 480VHJA600VACBlack€1,534.54
SQUARE D HJA260901 Circuit Breaker I-line Style Plug-in 90 Amp 600vac 2p 65kaic@480v | AG8PKQ HJA2609012AB-65 kAIC @ 480VHJA600VACBlack€1,506.11
SQUARE D HJA260902 Circuit Breaker I-line Style Plug-in 90 Amp 600vac 2p 65kaic@480v | AG8PKR HJA2609022AC-65 kAIC @ 480VHJA600VACBlack€1,674.97
