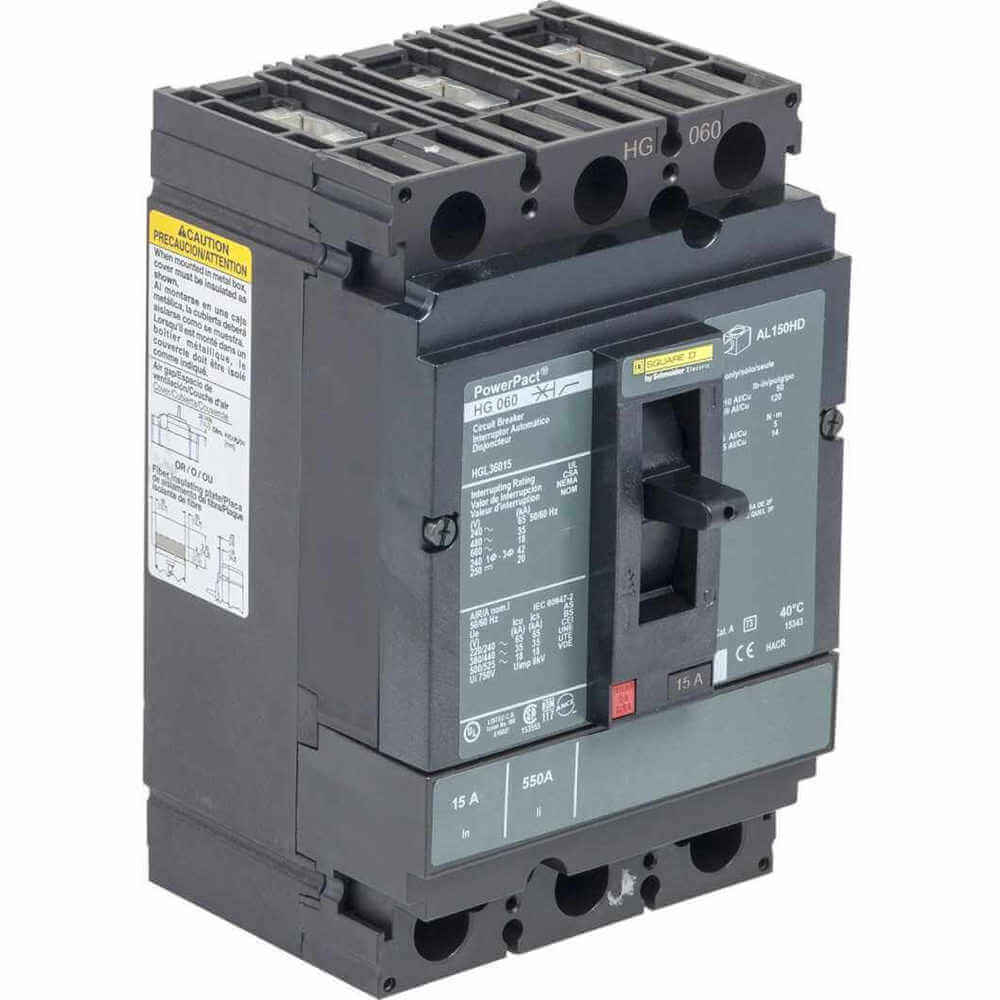

SQUARE D HGL36015 Circuit Breaker 15a 3p 600vac Lug
Item: AF6PRRModel: HGL36015Cross Ref: 1MAV7
7 In Stock
15A
3
Ships within 2 days via
5.00% off
€943.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Amps | 15A |
| Awg Gauge | 14 AWG to 3/0 AWG |
| Breaking Capacity | 65 kA 240V AC 50/60 Hz UL 489, 35 kA 480V AC 50/60 Hz UL 489, 18 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 20 kA 500V DC UL 489 |
| Breaking Capacity Code | G |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Application | HACR Rated |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Color | Black |
| Communication Interface | Modbus, Ethernet |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Toggle |
| Dc Voltage | 250V DC |
| Dc Voltage Rating | 250/500V DC |
| Depth | 3.4" , 4.36" |
| Device Application | Distribution |
| Electrical Connection | Lugs, Line, Load |
| Frame Size | 150A/HG |
| Height | 6 2/5" |
| High Amp Trip Setting | 750A |
| Instantaneous Trip | Fixed |
| Ip Degree Of Protection | IP40 |
| Line Rated Amps | 15A |
| Local Signalling | Switched Off 1 Trip Indicator Green |
| Low Amp Trip Setting | 350A |
| Magnetic Hold Amps | 350A |
| Magnetic Tripping Amps | 750A |
| Max. Air Rating | Not Rated |
| Max. Air Rating | 65 kA At 240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 3 AWG |
| Min. Wire Size | 14 AWG |
| Mounting | Free Standing |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Number Of Slots | 5 |
| Operating Altitude | 0 ft. to 6561.68 ft. Without Derating, 5000m With Derating |
| Phase | 3 |
| Phase Connection | ABC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 0.6" |
| Quality Labels | ce.png |
| Quantity Per Set | 1 |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 750V |
| Rated Operational Voltage | 690V |
| Rated Service Breaking Capacity | 65 kA @ 220/240V AC @ 50/60 Hz, 35 kA @ 380/440/415V AC @ 50/60 Hz, 18 kA @ 500/525V AC @ 50/60 Hz, 20 kA @ 250V DC, 20 kA @ 500V DC |
| Returnability | Yes |
| Series | HG Series |
| Suitability For Isolation | Yes, IEC 60947-2 |
| Terminal Connection | Line/Load Lug |
| Terminal Connection Type | Line, Load Lug |
| Tightening Torque | 44.3 lbf.in. @ 0.004 sq. in. to 0.009 sq. in. @ 14 AWG to 10 AWG, 123.9 lbf.in. @ 0.02 sq. in. to 0.1 sq. in. @ 8 AWG to 3/0 AWG |
| Trip Type | Thermal Magnetic |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Width | 4.09" , 4.12" |
Shipping Info:
| Ship weight (kg) | 1.87 |
| Ship height (cm) | 18.03 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 16.26 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Instantaneous Trip (Fixed)
Product Variants
| Model | Number Of Poles | Amps | Phase | Terminal Connection Type | High Amp Trip Setting | Low Amp Trip Setting | Dc Voltage Rating | Terminal Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HGL36150U33X | 3 | 150A | 3 | Box Lug | 100A | 150A | 250V AC | Box Lug | €3,030.01 | |
| HGL36060U43X | 3 | 60A | 3 | Box Lug | 15A | 60A | 250V AC | Box Lug | €4,904.63 | |
| HGL36100U43X | 3 | 100A | 3 | Box Lug | 60A | 100A | 250V AC | Box Lug | €5,160.90 | |
| HGL36150U43X | 3 | 150A | 3 | Box Lug | 100A | 150A | 250V AC | Box Lug | €8,493.42 | |
| HGL36060U31X | 3 | 60A | 3 | Box Lug | 15A | 60A | 250V AC | Box Lug | €1,413.97 | |
| HGL36100U31X | 3 | 100A | 3 | Box Lug | 60A | 100A | 250V AC | Box Lug | €3,104.85 | |
| HGL36150U31X | 3 | 150A | 3 | Box Lug | 100A | 150A | 250V AC | Box Lug | €6,544.68 |
