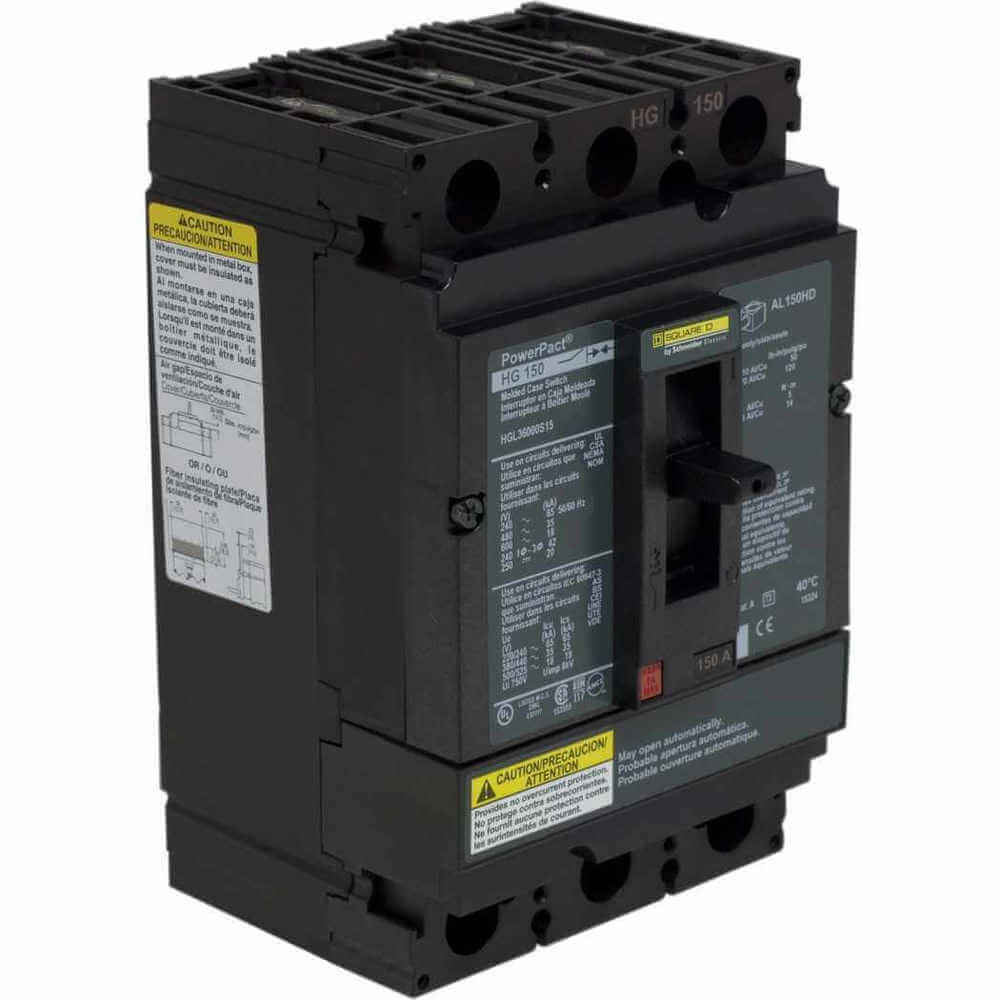

SQUARE D HGL36000S15 Circuit Breaker 150a 3p 600vac Lug
Item: AF6PUEModel: HGL36000S15Cross Ref: 1MBB6
7 In Stock
Ships within 2 days via
5.00% off
€1,151.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Amps | 150A |
| Awg Gauge | 14 AWG to 3/0 AWG |
| Breaking Capacity Code | G |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Shunt Trip |
| Component Type | Automatic Switch |
| Dc Voltage | 250V DC |
| Dc Voltage Rating | 250V AC |
| Depth | 4.36" |
| Electrical Connection | Lugs, Line, Load |
| Frame Size | 150A/HG |
| Height | 6 2/5" |
| High Amp Trip Setting | 2250A |
| Instantaneous Trip | Fixed |
| Line Rated Amps | 150A |
| Low Amp Trip Setting | 1125A |
| Magnetic Tripping Amps | 2250A |
| Max. Air Rating | Not Rated |
| Max. Air Rating | 65 kA At 240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 3 AWG |
| Min. Wire Size | 14 AWG |
| Mounting | Free Standing |
| Mounting Mode | Unit Mount |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Rated Operational Voltage | 600V AC/250V DC |
| Returnability | Yes |
| Series | HG Series |
| Short-circuit Withstand | 65 kA, 240V, UL 489, 35 kA, 480V, UL 489, 18 kA, 600V, UL 489 |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Tightening Torque | 5 N-m |
| Trip Type | Thermal Magnetic |
| Trip Unit Technology | Magnetic |
| Width | 2.12" , 4.12" |
Shipping Info:
| Ship weight (kg) | 1.86 |
| Ship height (cm) | 14.22 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 19.05 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Instantaneous Trip (Fixed)
Product Variants
| Model | Number Of Poles | Amps | Phase | Terminal Connection Type | High Amp Trip Setting | Low Amp Trip Setting | Dc Voltage Rating | Terminal Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HGL36150U33X | 3 | 150A | 3 | Box Lug | 100A | 150A | 250V AC | Box Lug | €3,030.01 | |
| HGL36060U43X | 3 | 60A | 3 | Box Lug | 15A | 60A | 250V AC | Box Lug | €4,904.63 | |
| HGL36100U43X | 3 | 100A | 3 | Box Lug | 60A | 100A | 250V AC | Box Lug | €5,160.90 | |
| HGL36150U43X | 3 | 150A | 3 | Box Lug | 100A | 150A | 250V AC | Box Lug | €8,493.42 | |
| HGL36060U31X | 3 | 60A | 3 | Box Lug | 15A | 60A | 250V AC | Box Lug | €1,413.97 | |
| HGL36100U31X | 3 | 100A | 3 | Box Lug | 60A | 100A | 250V AC | Box Lug | €3,104.85 | |
| HGL36150U31X | 3 | 150A | 3 | Box Lug | 100A | 150A | 250V AC | Box Lug | €6,544.68 |
