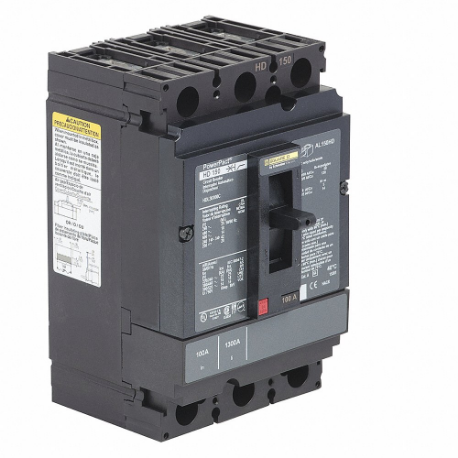

SQUARE D HDL36100C Molded Case Circuit Breaker 600V 100A
Item: CU4EZVModel: HDL36100CCross Ref: 48R044
7 In Stock
Ships within 2 days via
5.00% off
€2,234.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Case |
| Ac Voltage | 600V AC |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Application | HACR Rated Applications, Distribution |
| Awg Gauge | 14 AWG to 3/0 AWG |
| Breaking Capacity | 25 kA 240V AC 50/60 Hz UL 489, 18 kA 480V AC 50/60 Hz, 14 kA 600V AC 50/60 Hz, 20 kA 250V DC |
| Breaking Capacity Code | D |
| Circuit Breaker Application | HACR Rated |
| Circuit Breaker Mounting Style | Unit Mount Lug |
| Color | Black |
| Comm Code Enhanced | 326 |
| Communication Interface | Modbus, Ethernet |
| Component Type | Circuit Breaker |
| Continuous Amps | 100% |
| Control Type | Toggle |
| Depth | 3.4" |
| Device Application | Distribution |
| Discount Schedule | 0DE2 |
| Electrical Connection | Lugs, Line, Load |
| Frame Type | H |
| Height | 6 2/5" |
| Ics Rated Service Breaking Capacity | 25 kA 220/240V AC 50/60 Hz, 18 kA 380/440/415V AC 50/60 Hz, 14 kA 500/525V AC 50/60 Hz, 20 kA 250V DC, 20 kA 500V DC |
| Interrupt Rating | 25 kA at 220/240V AC, 18 kA at 380/440/415/480V AC, 14 kA at 500/525/600V AC, 20 kA at 250/500V DC |
| Ip Degree Of Protection | Front Cover IP40 IEC 60529 , IP40 |
| Line Rated Amps | 100A |
| Local Signalling | Switched Off 1 Trip Indicator Green |
| Magnetic Hold Amps | 900A |
| Magnetic Tripping Amps | 1700A |
| Max. Ac Voltage | 600V |
| Max. Air Rating | 25 kA |
| Max. Wire Size | 3/0 AWG |
| Min. Wire Size | 14 AWG |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 3 , 3P |
| No. Of Slots | 5 |
| Operating Altitude | 0 ft. to 6561.68 ft. Without Derating, 5000m With Derating , Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 0.6" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE , ce.png |
| Quantity Per Set | 1 |
| Range | Powerpact |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 750V |
| Rated Operational Voltage | 690V |
| Rated Service Breaking Capacity | 25 kA @ 220/240V AC @ 50/60 Hz, 18 kA @ 380/440/415V AC @ 50/60 Hz, 14 kA @ 500/525V AC @ 50/60 Hz, 20 kA @ 250V DC, 20 kA @ 500V DC |
| Returnability | No |
| Series | HD Series |
| Suitability For Isolation | Yes , Yes, IEC 60947-2 |
| Terminal Identifier | Al150hd |
| Tightening Torque | 44.3 lbf.in. @ 0.004 sq. in. to 0.009 sq. in. @ 14 AWG to 10 AWG, 123.9 lbf.in. @ 0.02 sq. in. to 0.1 sq. in. @ 8 AWG to 3/0 AWG |
| Trip Type | Thermal Magnetic |
| Trip Unit Technology | Thermal-Magnetic |
| Type | Molded Case, Thermal Magnetic |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Utilisation Category | Category A |
| Width | 4.09" |
Shipping Info:
| Ship weight (kg) | 2.04 |
| Ship height (cm) | 16.3 |
| Ship length (cm) | 8.6 |
| Ship width (cm) | 10.4 |
Product Variants
| Product | Model | No. Of Poles | Amps | Depth | Line Rated Amps | Continuous Amps | Returnability | Ip Degree Of Protection | Suitability For Isolation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HDL36060 | 3 | 60A | 4.36" | 60A | 80% | Yes | IP40 | Yes, IEC 60947-2 | €864.17 | |
 |
HDL26015 | 2 | 15A | 4.36" | 15A | 80% | Yes | IP40 | Yes, IEC 60947-2 | €824.83 | |
|
HDL26020 | 2 | 20A | 4.36" | 20A | 80% | Yes | IP40 | Yes, IEC 60947-2 | €824.83 | |
|
HDL26025 | 2 | 25A | 4.36" | 25A | 80% | Yes | IP40 | Yes, IEC 60947-2 | €892.15 | |
|
HDL26030 | 2 | 30A | 4.36" | 30A | 80% | Yes | IP40 | Yes, IEC 60947-2 | €824.83 | |
 |
HDL26040 | 2 | 40A | 4.36" | 40A | 80% | Yes | IP40 | Yes, IEC 60947-2 | €824.83 | |
|
HDL26050 | 2 | 50A | 4.36" | 50A | 80% | Yes | IP40 | Yes, IEC 60947-2 | €824.83 |
