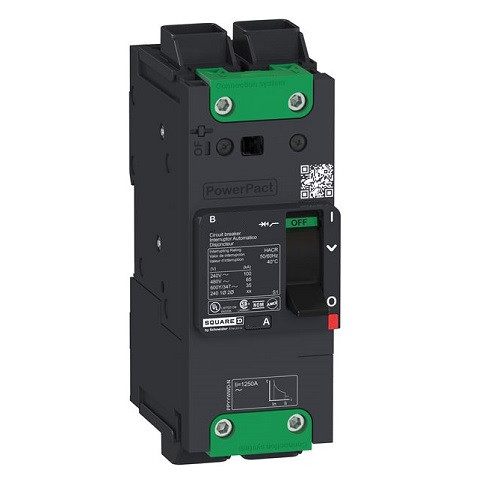

SQUARE D BDL26080 Molded Case Circuit Breaker, 80A, Number Of Poles 2, Series Bdl
Item: CE6JLMModel: BDL26080Cross Ref: 482D20
7 In Stock
Ships within 2 days via
10.00% off
€1,243.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 525V AC |
| Actuator Type | Toggle |
| Amps | 80A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | Not Rated |
| Depth | 3.15" |
| For Use With | Electrical Distribution Equipment, Industrial Control Panels |
| Frame | 125A/BD |
| Frame Type | BDL |
| Height | 5.39" |
| Instantaneous Trip | Fixed |
| Max. Air Rating | 25kA at 277/408V AC |
| Max. Air Rating | 25 kA At 277/408V AC |
| Max. Operating Temp. | 158 Deg. F |
| Max. Operating Temp. | 158°F |
| Maximum Wire Size | 2 AWG, 3 AWG |
| Min. Operating Temp. | -13°F |
| Min. Wire Size | 6 AWG, 14 AWG |
| Mounting Style | Unit |
| Number Of Poles | 2 |
| Phase | 1 |
| Terminal Connection | Everlink Lug Both Ends |
| Terminal Connection Type | Everlink Lug Both Ends |
| Trip Type | Thermal Magnetic |
| Voltage | 600V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 13.69 |
| Ship length (cm) | 8 |
| Ship width (cm) | 5.41 |
| Country of Origin | MX |
Product Details:
- Square D BDL26080 molded case circuit breaker ideal for protection against current overloads & short circuits in power distribution applications
- Non-interchangeable thermal magnetic trip for both long time & instantaneous trip functions for reacting against severe power surges at once while avoiding tripping on mild overloads
- Features EverLink creep-compensating line & load lug terminals for accommodating 6 - 2 AWG fine stranded & 14 - 3 AWG rigid aluminium & copper wiring
- Clip-on DIN rail mounting design for ease-of-installation
- CE-marked & UL-listed
Product Variants
| Model | Number Of Poles | Amps | Phase | Circuit Breaker Type | Ac Voltage Rating | Phase Connection | Frame Size | Voltage Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BDL36070 | 3 | 70A | 3 | Standard | 525V AC | ABC | - | AC | €1,113.65 | |
| BDL36080 | 3 | 80A | 3 | Standard | 525V AC | ABC | - | AC | €1,758.74 | |
| BDL36090 | 3 | 90A | 3 | Standard | 525V AC | ABC | - | AC | €1,113.65 | |
| BDL36100 | 3 | 100A | 3 | Standard | 525V AC | ABC | - | AC | €1,637.54 | |
| BDL36060 | 3 | 60A | 3 | Standard | 525V AC | ABC | - | AC | €1,344.61 | |
| BDL36050 | 3 | 50A | 3 | Standard | 525V AC | ABC | - | AC | €892.31 | |
| BDL36040 | 3 | 40A | 3 | Standard | 525V AC | ABC | - | AC | €892.31 |
