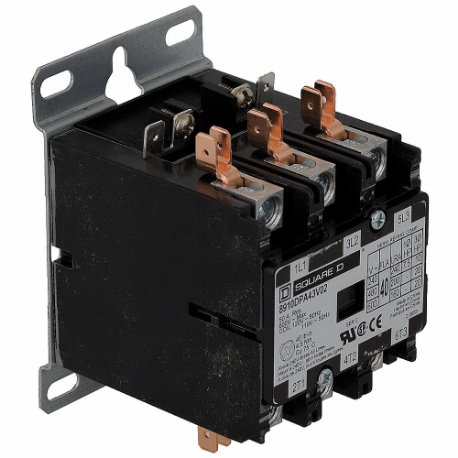

SQUARE D 8910DPA43V02Y181 Definite Purpose Magnetic Contactor, 3 Poles, 40 A Full Load Amps-Inductive, 120VAC
Item: CU4FBEModel: 8910DPA43V02Y181Cross Ref: 482J36
7 In Stock
Ships within 2 days via
5.00% off
€70.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Coil Voltage | 120V AC |
| Component Type | Definite Purpose Contactor |
| Contactor Frame Size | Standard |
| Control Circuit Voltage | 110/120V AC |
| Depth | 3" |
| Electrical Connection | Box Lugs, Quick Connect Terminals |
| Enclosure Nema Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Full Load Amps-resistive | 120A |
| Height | 3 3/4" |
| Hp @ 1 Phase-120v | 3 hp |
| Hp @ 3 Phase-240v | 10 hp |
| Hp @ 3 Phase-480v | 20 hp |
| Hp @ 3 Phase-575v | 25 hp |
| Hp @ 3 Phase-600v | 20 hp |
| Included | Quick Connect Terminal |
| Inductive Full Load Amps | 40A |
| Line Rated Amps | 40A |
| Locked Rotor Load | 160A @ 575V AC, 200A @ 460V AC, 240A @ 277V AC |
| Locked Rotor Rated Amps | 240A At 277V AC, 200A At 460V AC, 160A At 575V AC |
| Main Pole Contact Form | 3NO |
| Max. Hp | 3 hp @ 115V AC, 7.5 hp @ 230V AC, 10 hp @ 230V AC, 20 hp @ 460V AC, 25 hp @ 575V AC |
| Max. Voltage | 600V AC |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Overall Depth | 3" |
| Overall Height | 3 3/4" |
| Overall Width | 2.37" |
| Phase | 3 |
| Pole Contact Composition | 3 NO , NO |
| Rated Operational Voltage | 600V |
| Resistive Full Load Amps | 50A |
| Returnability | Yes |
| Reversible | No |
| Reversing Capability | Non Reversing |
| Series | 8910 Series TYPE DPA Series |
| Width | 2.37" |
| Wire Termination Type | Quick Disconnect |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 6.02 |
| Country of Origin | CN |
Product Variants
| Product | Model | Coil Voltage | No. Of Poles | Frequency | Height | Hp @ 1 Phase-120v | Returnability | Phase | Inductive Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8910DP31V02 | 120V AC | 1 | 50/60 Hz | 3.29" | 2 hp | Yes | 1 | 30A | €78.19 | |
|
8910DP31V14 | 24V AC | 1 | 50/60 Hz | 3.29" | 2 hp | Yes | 1 | 30A | €78.19 | |
 |
8910DPA62V14 | 24V AC | 2 | 50/60 Hz | 4.06" | 5 hp | Yes | 1 | 60A | €282.35 | |
 |
8910DP12V09 | 208/240V AC | 2 | 50/60 Hz | 3.29" | 1 hp | No | 1 | 20A | €65.77 | |
 |
8910DPA63V09 | 220/208-240V AC | 3 | 50/60 Hz | 4.06" | 5 hp | Yes | 3 | 60A | €314.80 | |
|
8910DPA93V02 | 120V AC | 3 | 50/60 Hz | 5 1/5" | 7 1/2 hp | Yes | 3 | 90A | €508.31 | |
|
8910DPA93V09 | 220/208-240V AC | 3 | 50/60 Hz | 5 1/5" | 7 1/2 hp | Yes | 3 | 90A | €508.31 |
