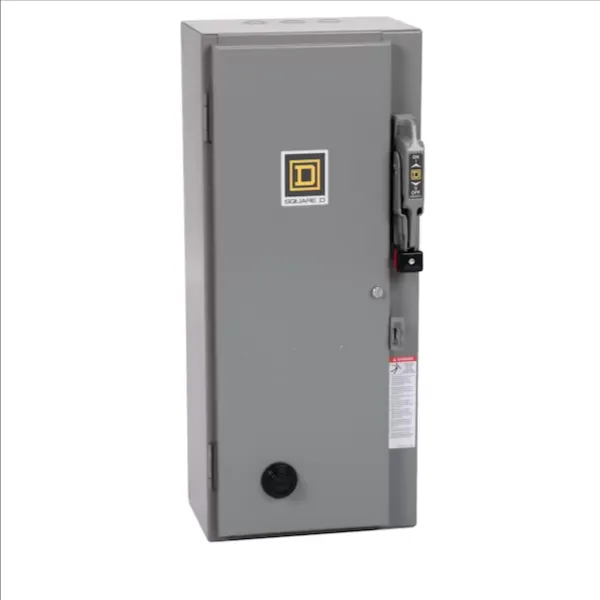

SQUARE D 8538SCG13V02S Starter Motor Control Less Than1000Vac
Get it by Tuesday, Aug 18
5.00% off
€1,783.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Auxiliary Contact | Without |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Auxiliary Contacts | Without |
| Coil Voltage | 110V AC at 50 Hz, 120 VAC at 60 Hz |
| Comm Code Enhanced | 41340 |
| Continuous Amps Rating | 27A |
| Control Circuit Frequency | 50/60 Hz |
| Control Circuit Type | Separate , Separate Control Circuit |
| Control Circuit Voltage | 110/120V AC |
| Control Units | No Control Units |
| Disconnect | Fusible |
| Disconnect Amps | 60A |
| Disconnect Type | Fusible Disconnect Switch H, 60 A , Fusible Disconnect Switch H, 60A |
| Discount Schedule | 0CP1 |
| Enclosure Type | NEMA 1 , NEMA 1 Painted Sheet Steel With External Reset |
| Family Series | Square D Starters |
| Hp | 7 1/2 hp @ 200V AC, 7 1/2 hp @ 230V AC |
| Hp Rating | 7 1/2 hp 200V AC, 3 Phase, 7 1/2 hp 230V AC, 3 Phase |
| Line Voltage | 600V AC at 50/60 Hz |
| Max. Hp 230/240v 3ph | 7 1/2 hp |
| Max. Voltage | 600V AC |
| Mounting | Surface |
| Nema Frame Size | 1 |
| Nema Size | NEMA 1 |
| No. Of Poles | 3 , 3P |
| Overload Type | Bimetallic |
| Phase | 3 |
| Pilot Light | No Indicator |
| Product Type | Starter Motor Control Less Than1000Vac |
| Returnability | Yes |
| Starter Type | Non Reversing |
| Thermal Overload Type | Melting Alloy 3 |
| Type | S |
Shipping Info:
| Ship weight (kg) | 14.66 |
| Country of Origin | MX |
Product Variants
| Product | Model | No. Of Poles | Phase | Nema Size | Control Circuit Type | Starter Type | Pilot Light | Returnability | Overload Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8736SFO3V02S | 3 | 3 | NEMA 4 | Separate | Reversing | Without Pilot Light | No | Melting Alloy 3 | €6,425.30 | |
 |

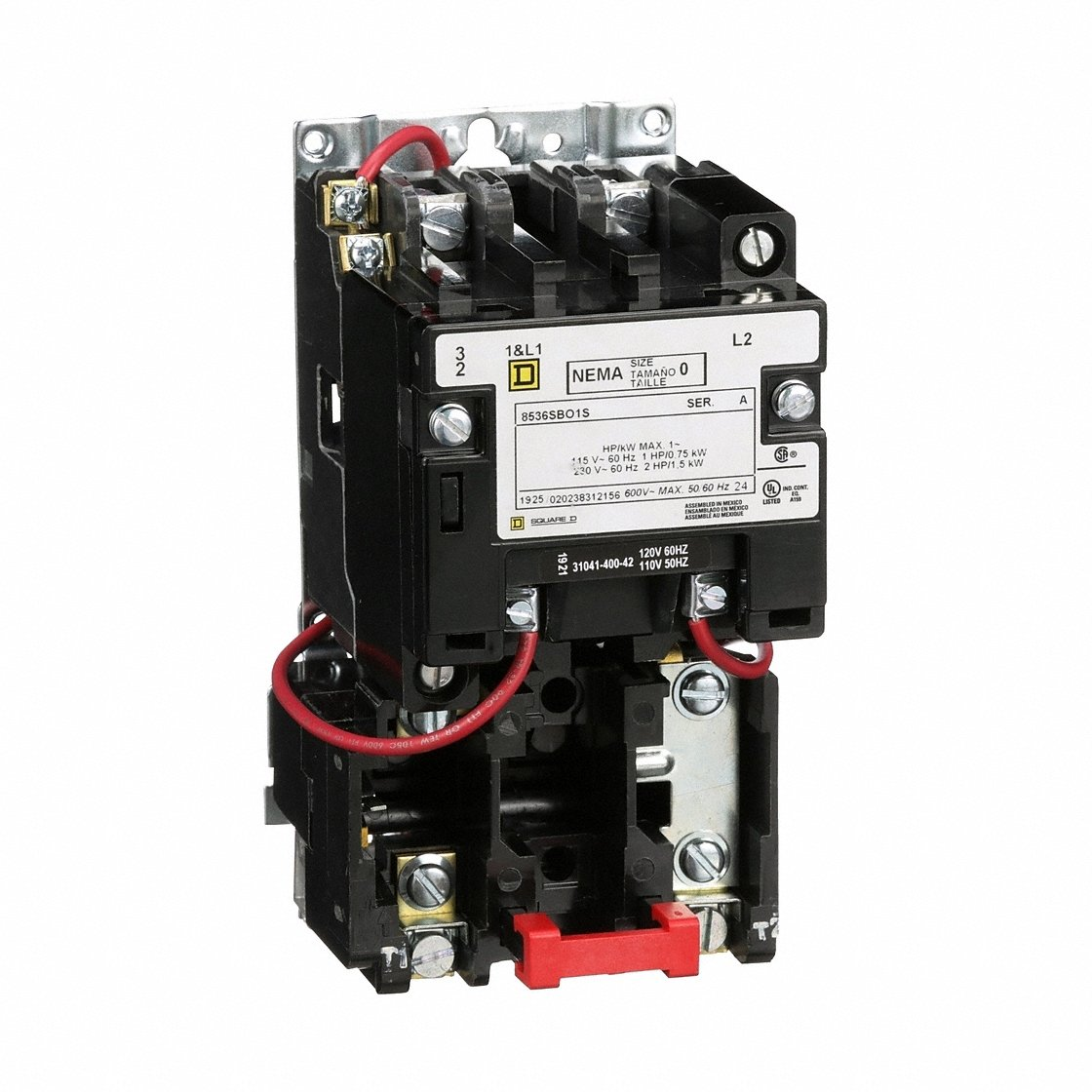

8536SBO1V02S | 2 | 1 | NEMA 0 | Separate | Non Reversing | Without Pilot Light | Yes | Melting Alloy 1 | €1,083.87 | |
 |

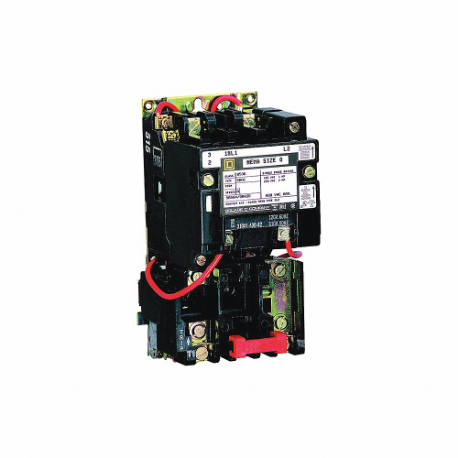

8536SBO1V01S | 2 | 1 | NEMA 0 | Separate | Non Reversing | Without Pilot Light | No | Melting Alloy 1 | - | RFQ
|
 |
8536SCO1V02S | 2 | 1 | NEMA 1 | Separate | Non Reversing | Without Pilot Light | Yes | Melting Alloy 1 | €923.63 |
