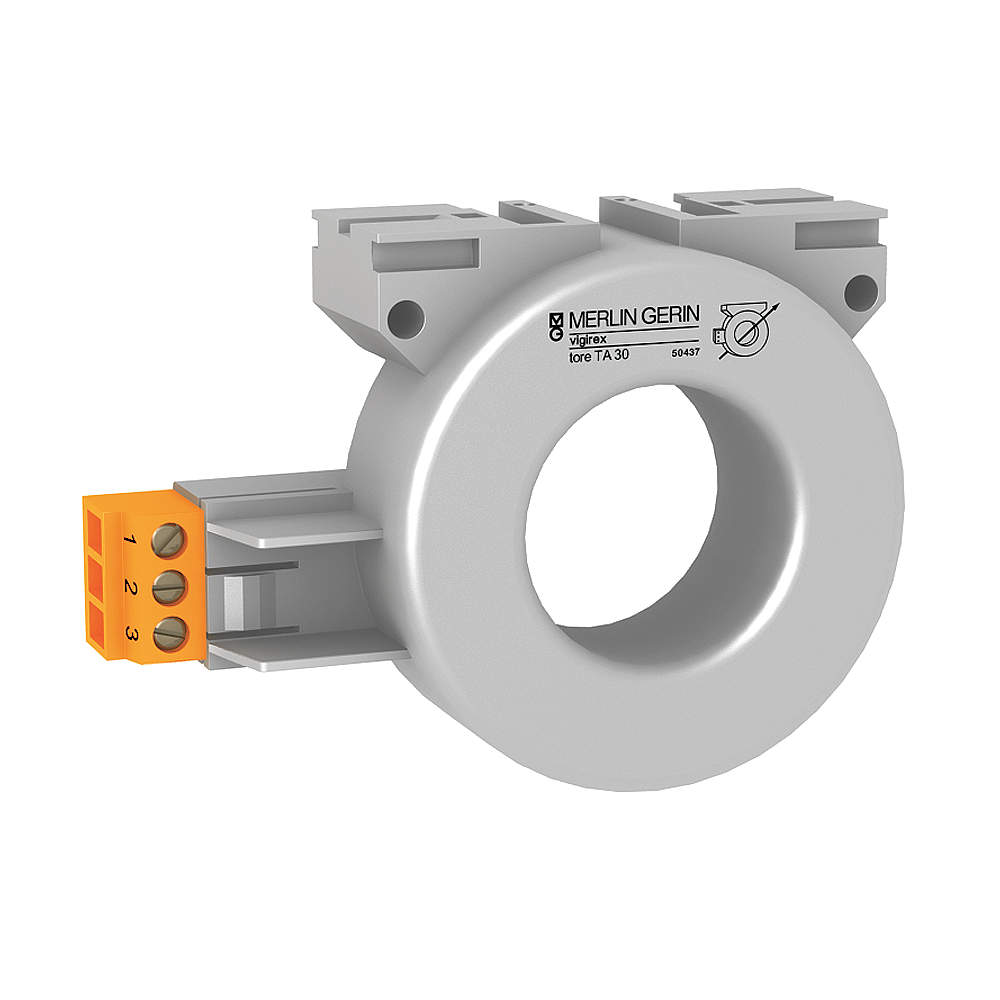

SQUARE D 50437 Ground Fault Sensor Toroid 30 Mm 65a
Item: AG7GEAModel: 50437Cross Ref: 6UKW0
7 In Stock
Ships within 2 days via
5.00% off
€596.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ground Fault Sensor |
| Ambient Air Temp. For Operation | -31°F to +158°F |
| Ambient Air Temp. For Storage | -67°F to +185°F |
| Amps | 65A |
| Amps Sensor Type | A Type Closed Toroid |
| Application | Equipment Monitoring And Control |
| Cable Outer Diameter | 0.6" |
| Calorific Value | 0.98 MJ |
| Compatible Series | Rh10M, Rh10P, Rh197M, Rh197P, Rh21M, Rh21P, Rh68M, Rh86M, Rh86P, Rh99M, Rh99P, Rhu, Rhus, Rmh |
| Component Type | Earth Leakage Current Sensor |
| Connections Terminals | Screw Connection 0.0003 sq. in. |
| Contains | 1.18 In. Hole Dia. |
| Depth | 1.14" |
| Device Application | Equipment MonitoringAnd Control |
| Environmental Characteristic | Exposure to Damp Heat Not in Service 25°C to 55°C, RH 95% 28 Cycles IEC 60068-2-30, Salt mistKb/2 IEC 60068-2-52, Exposure to Damp Heat in Servicecategory C2 48 hours IEC 60068-2-56 |
| Height | 3.23" |
| Inner Dia. | 1 1/5" |
| Ip Degree Of Protection | IP20, IP30 |
| Ip Rating | IP20, IP30 |
| Length | 3.27" |
| Mounting Mode | Fixed Plain Backplate, Fixed Profiled Sheet Metal, Fixed Slotted Backplate, Clip On Din Rail, Clip On Vigirex Relay |
| Network Frequency | 45-440 Hz |
| Network Type | AC, DC |
| Number Of Pieces | 1 |
| Overvoltage Category | IV |
| Pollution Degree | Level 3 IEC 60664-1 |
| Product Type | Closed Toroid |
| Rated Impulse Withstand Voltage | 12 kV |
| Rated Insulation Voltage | 1000V |
| Rated Operational Amps | 65A |
| Rated Short-time Withstand Amps | 85 kA @ 0.5 sec. |
| Residual Short-circuit Withstand Amps | 85 kA |
| Returnability | No |
| Standards | Rohs Compliant |
| Transformer Ratio | 1:1000 |
| Width | 2.36" |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 19 |
| Ship width (cm) | 11.81 |
| HS code | 8536308000 |
| Country of Origin | FR |
