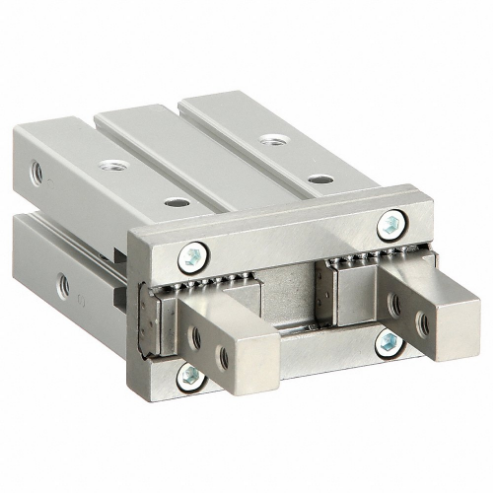

SPEEDAIRE MHZ2-20D Linear Guide Air Gripper, Parallel, 26.3 mm Open Width, 16.3 mm Closed Width
Item: CU4DQNModel: MHZ2-20DCross Ref: 5YEK7
7 In Stock
Ships within 2 days via
5.00% off
€506.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gripper |
| Body Finish | Anodized |
| Body Material | Aluminum |
| Closed Width | 16.3 mm |
| Dimensions B | 84.8 mm |
| Dimensions C | 27.6 mm |
| External Holding Force Lbf @ 72 Psi | 9.44 lbf. |
| Finger Material | Heat Treated Stainless Steel |
| Height | 27.6 mm |
| Internal Holding Force Lbf @ 72 Psi | 14.84 lbf. |
| Length | 50 mm |
| Max. Pressure | 102 psi |
| Opening Width | 26.3 mm |
| Opening/closing Stroke | 10 mm |
| Operating Temp. | +14°F to +140°F |
| Port Size | M5 x 0.8 |
| System Of Measurement | Metric |
| Total Stroke-angular | Not Applicable |
| Type | Parallel |
| Width | 84.8 mm |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.76 |
| Ship length (cm) | 5 |
| Ship width (cm) | 8.48 |
| Country of Origin | JP |
Product Variants
| Product | Model | Overall Height | Max. Pressure | Finger Material | Type | External Holding Force Lbf @ 72 Psi | Dimensions C | Height | Internal Holding Force Lbf @ 72 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

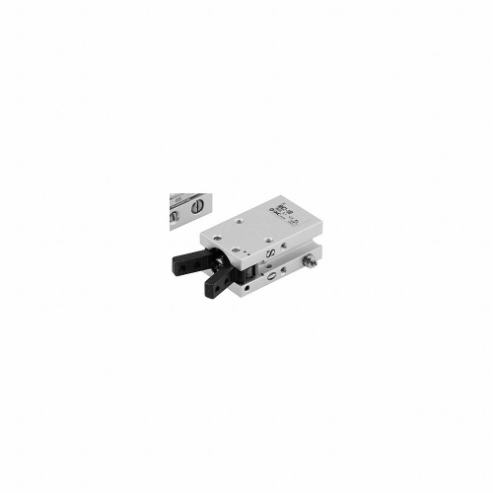

MHC2-10D | 23 mm | 87 psi | Stainless Steel | Angular | 0.07 lbf. | 23 mm | 23 mm | 0.07 lbf. | €210.54 | |
|
MHC2-20D | 42 mm | 87 psi | Stainless Steel | Angular | 0.52 lbf. | 42 mm | - | - | €265.13 | |
|
MHC2-25D | 52 mm | 87 psi | Stainless Steel | Angular | 1 lbf. | 52 mm | 52 mm | 1 lbf. | €312.44 | |
 |
MHL2-32D1 | 100 mm | 87 psi | Stainless Steel | Parallel | 50 lbf. | 100 mm | 100 mm | 50 lbf. | €1,229.55 | |
 |

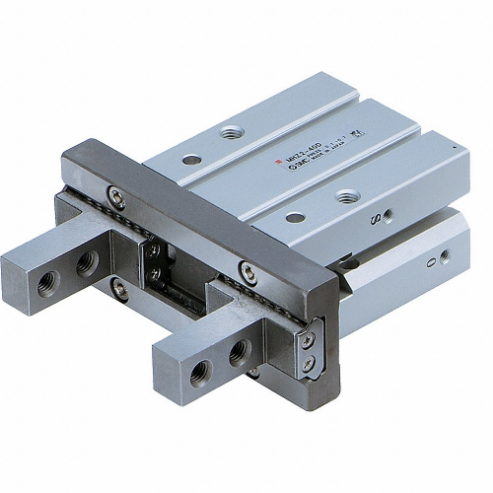

MHZ2-10D | 16.5 mm | 102 psi | Stainless Steel | Parallel | 2.47 lbf. | 16.5 mm | 16.5 mm | 3.82 lbf. | €367.33 | |
|
MHZ2-16D | 23.6 mm | 102 psi | Stainless Steel | Parallel | 7.64 lbf. | 23.6 mm | 23.6 mm | 10.12 lbf. | €377.50 | |
|
MHZ2-25D | 33.6 mm | 102 psi | Stainless Steel | Parallel | 14.61 lbf. | 33.6 mm | 33.6 mm | 23.38 lbf. | €634.79 |
