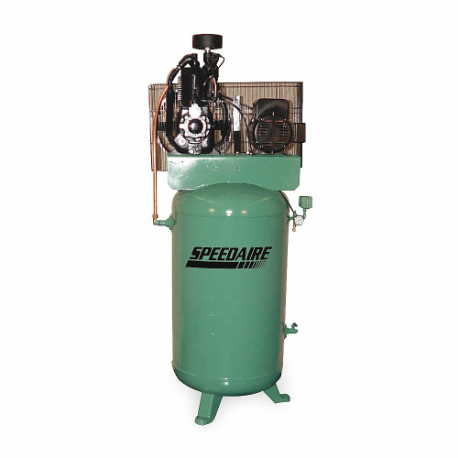

SPEEDAIRE 4XA63 Electric Air Compressor, 5 Hp, 2 Stage, Vertical, 80 Gal Tank, 17.3 Cfm, 208VAC
Get it by Wednesday, Dec 17
10.00% off
€6,351.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Air Compressor |
| Amps | 21/23A |
| Amps Rating | 21/23A |
| Asme Tank | Yes |
| Compressor Type | Simplex , Tank Mounted |
| Control Type | Dual Control |
| Cylinder Material | Aluminum With Cast Iron Liner |
| Duty Cycle | Intermittent |
| Enclosure Rating | NEMA 1 |
| Enclosure Type | Totally Enclosed |
| Finish | Enamel |
| Free Air Cfm @ Max. Pressure | 17.3 CFM |
| Includes | Initial Fill Of Compressor Oil, Manual Drain Valve, Oil Site Glass, Precision Bearing, Pressure Gauge, Pressure Relief Valve |
| Inlet Size | 1/2" |
| Input Voltage | 208V AC |
| Liner Material | Cast Iron |
| Lubrication Type | Pressure Lubricated |
| Max. Operating Pressure | 175 psi |
| Max. Speed | 710 RPM |
| Motor Type | Open Dripproof |
| Number Of Stages | 2 |
| Off Pressure Switch Setting | 175 psi |
| On Pressure Switch Setting | 140 psi |
| Outlet Gender | Female |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Overall Height | 75" |
| Overall Length | 35" |
| Overall Width | 27" |
| Package Type | Base Model |
| Phase | Single |
| Phase - Electrical | 1 |
| Power Output | 5 hp |
| Pump Location | Top Mount |
| Pump Location - Air Compressor | Tank Mounted |
| Pump Oil Capacity | 2 qt |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Sound Level | 81 dBA |
| Tank Size | 80 gal. |
| Tank Style | Vertical |
| Tank Style - Air Compressor | Vertical |
| Tank Type | Vertical |
Shipping Info:
| Ship weight (kg) | 265.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Lubrication Type | Tank Style | Power Output | Tank Size | Package Type | Phase | Sound Level | Free Air Cfm @ Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1WD87 | Pressure Lubricated | Horizontal | 10 hp | 120 gal. | Base Model | Three | 81 dBA | - | €11,429.06 | |
 |

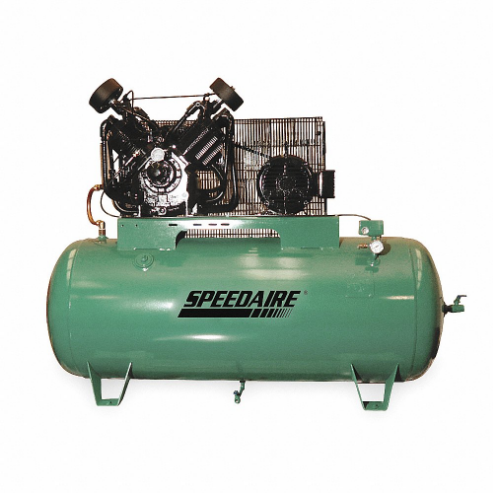

1WD88 | Pressure Lubricated | Horizontal | 10 hp | 120 gal. | Base Model | Three | 81 dBA | - | €11,403.59 | |
|
1WD90 | Pressure Lubricated | Horizontal | 15 hp | 120 gal. | Base Model | Three | 81 dBA | - | €12,245.01 | |
 |

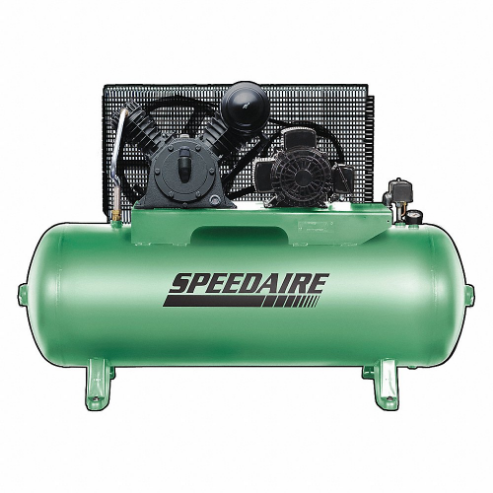

54JK65 | Splash Lubricated | Horizontal | 5 hp | 80 gal. | Base Model | Three | 84 dBA | 14 CFM | €3,486.25 | |
|
54JK64 | Splash Lubricated | Horizontal | 5 hp | 80 gal. | Base Model | Single | 84 dBA | 14 CFM | €3,446.69 | |
 |

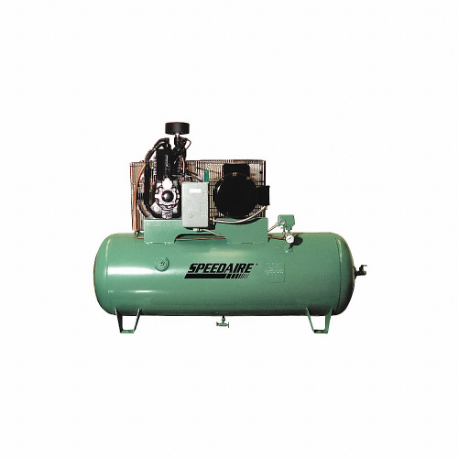

793HX2 | Pressure Lubricated | Horizontal | 5 hp | 80 gal. | Base Model | Single | - | - | €7,570.94 | |
 |

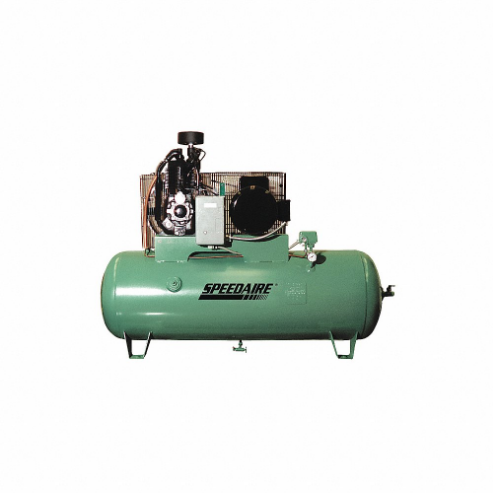

4XA64 | Pressure Lubricated | Horizontal | 5 hp | 80 gal. | Base Model | Single | 81 dBA | 17.3 CFM | €7,056.71 |
