BRENNAN INDUSTRIES 90 Degree Elbows
Filter
A
B
C
D
E| Style | Model | Max. Operating Pressure | Max. Operating Temp. | Hex Size | Specific Fitting Shape | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Thread Size B | Compatible Tube Wall Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

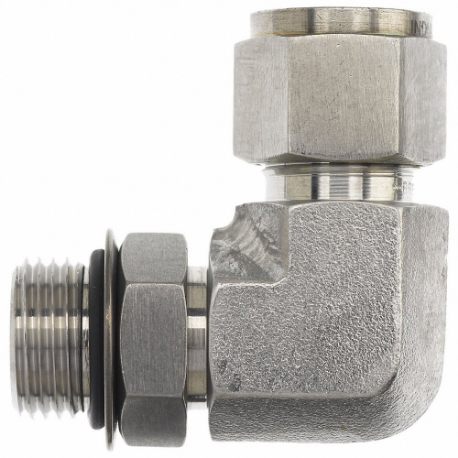

| A | N6801-12-12-NWO-SS | 2436 psi | 400°F | 28 1/2 mm, 32 mm | 90° Elbow | 3/4" | 3/4" | 1 1/16"-12 | 0.062" | €256.97 | |
| B | N2501-12-08-SS | 2436 psi | 1200°F | 27 mm, 28 1/2 mm | 90° Elbow | 3/4" | 1/2" | 1/2"-14 | 0.062" | €154.73 | |

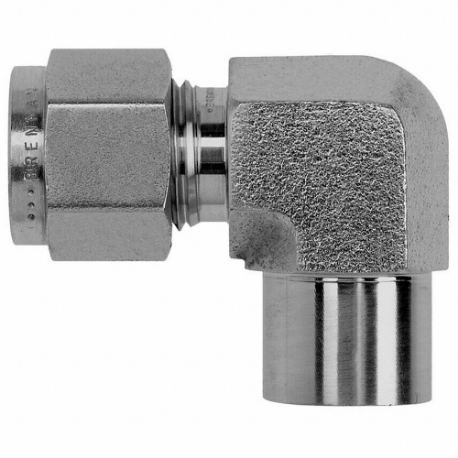

| C | N2526-08-08-SS | 2611 psi | 1200°F | 22 mm | 90° Elbow | 1/2" | 1/2" | - | 0.041" | €104.65 | |
| D | N6802-08-08-NWO-SS | 2611 psi | 400°F | 0.87 mm | 90° Elbow | 1/2" | - | 3/4"-16 | 0.041" | €98.63 | |
| A | N6801-08-08-NWO-SS | 2611 psi | 400°F | 22 mm | 90° Elbow | 1/2" | 1/2" | 3/4"-16 | 0.041" | €160.90 | |
| B | N2501-08-12-SS | 2611 psi | - | 22 mm, 27 mm | 90° Elbow | 1/2" | 3/4" | 3/4"-14 | 0.041" | €124.25 | |
| B | N2501-08-04-SS | 2611 psi | 1200°F | 22 mm | 90° Elbow | 1/2" | 1/4" | 1/4"-18 | 0.041" | €80.00 | |
| B | N2501-08-06-SS | 2611 psi | 1200°F | 22 mm | Elbow | 1/2" | 3/8" | 3/8"-18 | 0.041" | €76.75 | |
| A | N6801-10-10-NWO-SS | 2951 psi | 400°F | 24 mm, 25 mm | 90° Elbow | 5/8" | 5/8" | 7/8"-14 | 0.052" | €219.35 | |
| B | N2501-10-08-SS | 2951 psi | 1200°F | 24 mm, 25 mm | 90° Elbow | 5/8" | 1/2" | 1/2"-14 | 0.052" | €122.47 | |
| A | N6801-16-16-NWO-SS | 3146 psi | 400°F | 35 mm, 38 mm | 90° Elbow | 1" | 1" | 1 5/16"-12 | 0.083" | €485.10 | |
| D | N6802-16-16-NWO-SS | 3146 psi | 400°F | 1.5 mm | 90° Elbow | 1" | - | 1 5/16"-12 | 0.083" | €415.47 | |
| B | N2501-16-12-SS | 3146 psi | - | 35 mm, 38 mm | 90° Elbow | 1" | 3/4" | 3/4"-14 | 0.083" | €285.91 | |
| A | N6801-06-08-NWO-SS | 3326 psi | 400°F | 17 mm, 22 mm | 90° Elbow | 3/8" | 1/2" | 3/4"-16 | 0.035" | €125.21 | |
| B | N2501-06-08-SS | 3326 psi | 1200°F | 17 mm, 22 mm | 90° Elbow | 3/8" | 1/2" | 1/2"-14 | 0.035" | €74.19 | |
| C | N2526-06-06-SS | 3326 psi | 1200°F | 16 mm, 17 mm | 90° Elbow | 3/8" | 3/8" | - | 0.035" | €70.70 | |
| B | N2501-06-02-SS | 3326 psi | 1200°F | 14 mm, 17 mm | 90° Elbow | 3/8" | 1/8" | 1/8"-27 | 0.035" | €50.55 | |
| B | N2501-06-04-SS | 3326 psi | 1200°F | 17 mm | 90° Elbow | 3/8" | 1/4" | 1/4"-18 | 0.035" | €52.61 | |
| B | N2501-06-12-SS | 3326 psi | 1200°F | - | 90° Elbow | 3/8" | 3/4" | 3/4"-14 | - | €113.19 | |

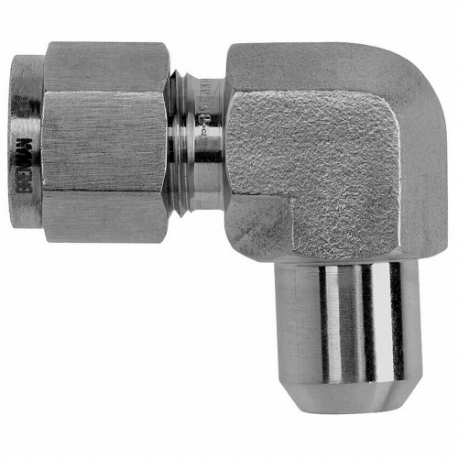

| E | N2525-06-04-SS | 3326 psi | 1200°F | 16 mm, 17 mm | 90° Elbow | 3/8" | 1/4" | - | 0.035" | €66.85 | |
| A | N6801-06-04-NWO-SS | 3326 psi | 400°F | - | Elbow | 3/8" | 1/4" | 7/16"-20 | - | €95.47 | |
| B | N2501-04-06-SS | 4020 psi | 1200°F | 14 mm, 17 mm | 90° Elbow | 1/4" | 3/8" | 3/8"-18 | 0.028" | €55.15 | |
| B | N2501-04-02-SS | 4020 psi | 1200°F | 14 mm | 90° Elbow | 1/4" | 1/8" | 1/8"-27 | 0.028" | €41.87 | |
| E | N2525-04-04-SS | 4020 psi | 1200°F | 14 mm | 90° Elbow | 1/4" | 1/4" | - | 0.028" | €44.65 | |
| E | N2525-04-02-SS | 4020 psi | 1200°F | 14 mm | 90° Elbow | 1/4" | 1/8" | - | 0.028" | €51.38 | |
| B | N2501-04-08-SS | 4020 psi | 1200°F | 14 mm, 22 mm | 90° Elbow | 1/4" | 1/2" | 1/2"-14 | 0.028" | €66.13 | |
| B | N2501-05-04-SS | 4037 psi | 1200°F | 14 mm, 16 mm | 90° Elbow | 5/16" | 1/4" | 1/4"-18 | 0.035" | €42.28 | |
| B | N2501-05-02-SS | 4037 psi | 1200°F | - | 90° Elbow | 5/16" | 1/8" | 1/8"-27 | - | €47.72 | |
| B | N2501-03-04-SS | 5474 psi | 1200°F | - | 90° Elbow | 3/16" | 1/4" | 1/4"-18 | - | €44.26 | |
| B | N2501-03-02-SS | 5474 psi | 1200°F | - | 90° Elbow | 3/16" | 1/8" | 1/8"-27 | - | €40.73 | |
| B | N2501-01-01-SS | 5587 psi | 1200°F | 11 mm | 90° Elbow | 1/16" | 1/16" | 1/16"-27 | 0.028" | €46.24 | |
| B | N2501-01-02-SS | 5587 psi | 1200°F | 11 mm | 90° Elbow | 1/16" | 1/8" | 1/8"-27 | 0.028" | €47.62 | |
| B | N2501-02-04-SS | 8565 psi | 1200°F | 11 mm, 14 mm | Elbow | 1/8" | 1/4" | 1/4"-18 | 0.028" | €44.26 |
