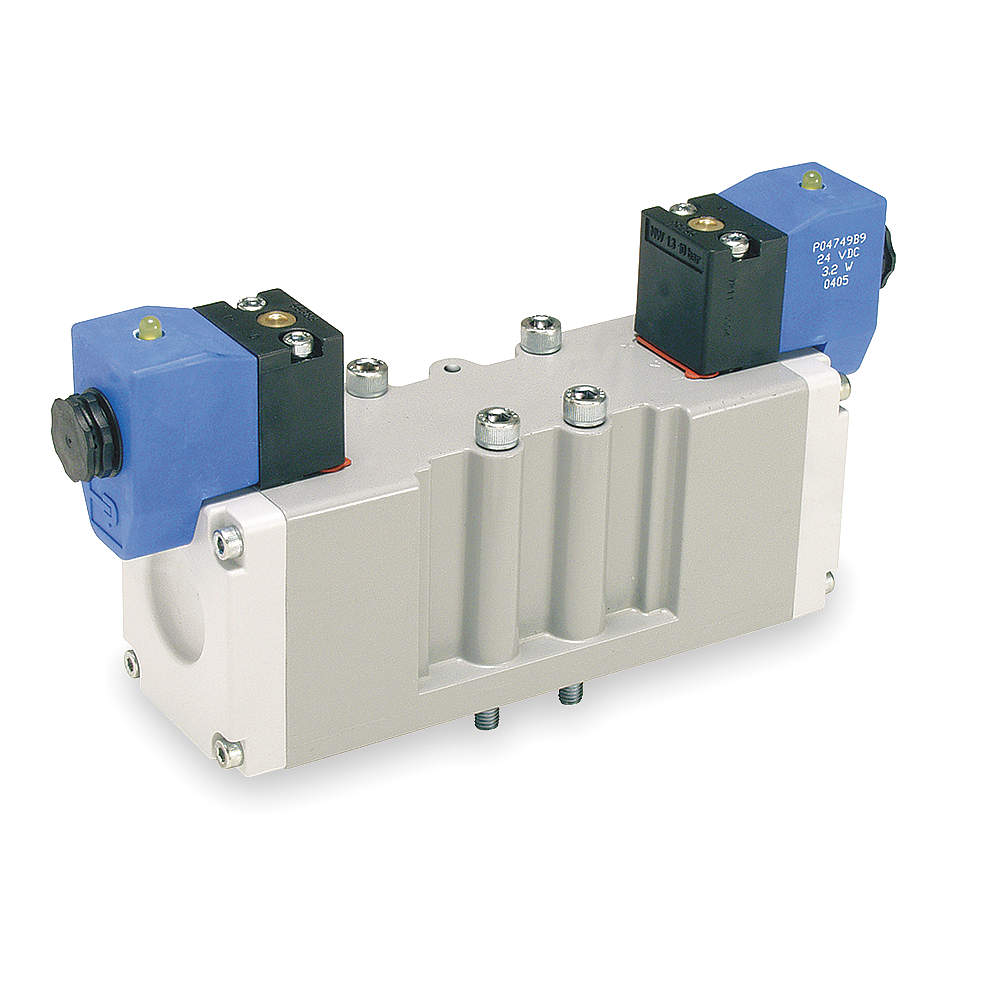

SPEEDAIRE 3FFT8 Solenoid Air Control Valve 24vdc
Item: AC9BFFModel: 3FFT8
7 In Stock
Ships within 2 days via
10.00% off
€767.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Double Solenoid |
| Ambient Temp. Range | +5°F to +120°F |
| Body Style | Base Mounted |
| Center Position | Closed |
| Coefficient Of Volume | 5 |
| Electrical Connection | Plug In |
| Electrical Connection Type | Plug In |
| Flow Rate - Maximum | 6 CFM |
| For Media | Air |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Type | NPT |
| Iso Class | Class 5599-2 |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Positions | 3 |
| Number Of Ways | 4 |
| Operating Pressure | 30 psi to 145 psi |
| Operating Pressure - Maximum | 145 psi |
| Operating Pressure - Minimum | 30 psi |
| Operating Temperature | 5°F to 120°F |
| Operating Temperature - Maximum | 120°F |
| Operating Temperature - Minimum | 5°F |
| Operational Pressure Range | 50 psi to 145 psi |
| Overall Height | 9 13/32" |
| Overall Length | 9 23/32" |
| Overall Width | 2 3/4" |
| Override | Non-Locking |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Power Consumption | 2.7 W |
| Pressure | 30 psi |
| Pressure Rating | 30 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 93 ms |
| Return Action | Solenoid Return |
| Series | ISO Series |
| Shifting Technology | Packed Spool |
| Vacuum Range | 145 psig |
| Vacuum Rating | Vacuum Operable |
| Valve Type | Spool |
| Voltage | 24V DC |
| Ways & Positions | Four-Way, Three-Position |
Shipping Info:
| Ship weight (kg) | 1.69 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 6.99 |
| HS code | 8481200060 |
| Country of Origin | US |
Product Variants
| Product | Model | Iso Class | Coefficient Of Volume | Overall Length | Overall Width | Overall Height | Voltage | Center Position | Operational Pressure Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3FFD5 | Class 15407-2 | 0.5 | 4 27/32" | 23/32" | 1 1/2" | 120V AC | Closed | 35 psi to 145 psi | €471.43 | |
 |
3FFD6 | Class 15407-2 | 0.5 | 4 27/32" | 23/32" | 1 1/2" | 24V DC | Closed | 35 psi to 145 psi | €460.36 | |
 |
3FFD7 | Class 15407-2 | 1 | 5 15/32" | 1 1/32" | 1 1/2" | 120V AC | Closed | 35 psi to 145 psi | €500.70 | |
|
3FFD8 | Class 15407-2 | 1 | 5 15/32" | 1 1/32" | - | 24V DC | Closed | 35 psi to 145 psi | €488.90 | |
|
3FFD9 | Class 15407-2 | 0.5 | 4 27/32" | 23/32" | 1 1/2" | 120V AC | Open | 35 psi to 145 psi | €471.43 | |
|
3FFE1 | Class 15407-2 | 0.5 | 4 27/32" | 23/32" | 1 1/2" | 24V DC | Open | 35 psi to 145 psi | €460.36 | |
|
3FFE2 | Class 15407-2 | 1 | 5 15/32" | 1 1/32" | - | 120V AC | Open | 35 psi to 145 psi | €499.30 |
