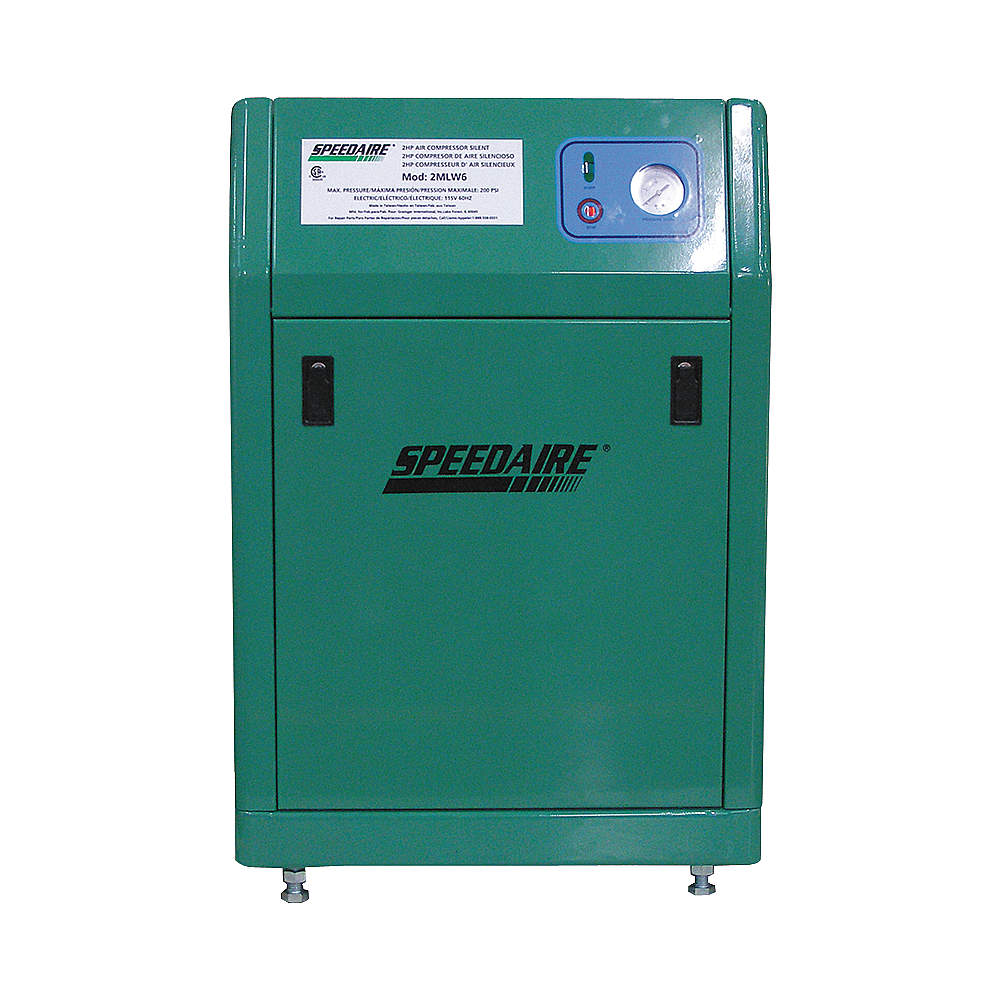

SPEEDAIRE 2MLW6 Electric Air Compressor 1 Stage 2 Hp
Get it by Wednesday, Dec 17
10.00% off
€2,495.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Air Compressor |
| (f)npt Outlet | 1/4" |
| Air Tank Style | Hot Dog |
| Amps | 14A |
| Asme Tank | Yes |
| Compressor Package Type | Base Model |
| Compressor Type | Tank Mounted |
| Control Type | Pressure Switch |
| Current Rating | 14A |
| Cylinder Material | Cast Iron |
| Dba @ 3 Feet | 64 dBA |
| Dba @ 3 Feet | 64 |
| Finish | Powder Coated |
| Free Air Cfm @ Max. Pressure | 6.2 |
| Free Air Cfm @ Max. Pressure | 6.2 CFM |
| Includes | Manual Drain Valve, Oil Sight Glass, Precision Bearing, Pressure Gauge, Pressure Safety Valve, Quiet Enclosure, Vibration Isolators |
| Inlet Size | 1/4" |
| Input Voltage | 240V AC |
| Lubrication Type | Splash Lubricated |
| Lubrication Type - Air Compressor | Splash Lubricated |
| Max. Pressure | 150 psi |
| Maximum Operating Pressure | 150 psi |
| Maximum Speed | 980 RPM |
| Motor Type | Induction |
| Number Of Stages | 1 |
| Off Pressure Switch Setting | 150 |
| Off Pressure Switch Setting | 150 psi |
| On Pressure Switch Setting | 115 |
| On Pressure Switch Setting | 115 psi |
| Output Power | 2 hp |
| Overall Height | 43.7" |
| Overall Length | 31 1/4" |
| Overall Width | 29.09" |
| Phase | 1 |
| Phase - Electrical | 1 |
| Pump Location | Base Mount |
| Pump Location - Air Compressor | Base Mounted |
| Pump Oil Capacity | 25.4 oz. |
| Pump Rpm | 980 |
| Pump Rpm | 980 RPM |
| Sound Level | 64 dBA |
| Standards | CSA |
| Style - Air Compressor | Simplex |
| Tank Size | 0.5 gal. |
| Tank Style | Hot Dog |
| Tank Type | Horizontal |
Shipping Info:
| Ship weight (kg) | 159.75 |
| Ship height (cm) | 111.01 |
| Ship length (cm) | 79.38 |
| Ship width (cm) | 73.9 |
| HS code | 8414801660 |
| Country of Origin | US |
Product Details:
Speedaire 2MLW6 electric air compressor is ideal for pumping controlled air into the tank to operate air tools, brad nail guns, paint sprayers and blast equipment.
Features:
- Speedaire 2MLW6 electric air compressor has a cast iron cylinder for durability and heat retention.
- It features powder coated finish to resist wear & tear in the compressor unit.
- This electric air compressor has a totally enclosed fan-cooled motor for keeping the windings dry and cool.
- It provides a flow rate of 6.2 CFM at a maximum operating pressure of 150 PSI.
- This electrical air compressor is equipped with a manual drain valve for draining excess water vapour into the atmosphere, thus preventing corrosion.
- The oil sight glasses in this electric air compressor allows monitoring of lubricant or oil quality.
- It comes with a pressure safety valve and gauges for controlled flow of fluids and user safety.
- This silent air compressor has precision bearings for high tolerance and precision during operation.
Standards and Approvals:
- CSA
Frequently Asked Questions:
Q. What is the maximum operating speed of Speedaire 2MLW6 electric air compressor?
A. 980 RPM.
Q. What type of lubrication is used in this electrical air compressor?
A. Splash lubrication.
Q. What is the tank size of this electric air compressor?
A. 0.5 gallon.
Q. What is the oil capacity of Speedaire 2MLW6 electrical air compressor?
A. 25.4 ounces.
Product Variants
| Product | Model | Tank Style | Free Air Cfm @ Max. Pressure | Tank Size | Sound Level | Off Pressure Switch Setting | Overall Height | Overall Length | On Pressure Switch Setting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
4B234 | Horizontal | 4.9 CFM | 30 gal. | 85 dBA | 135 psi | 38" | 40.62" | 100 psi | €1,743.88 |
