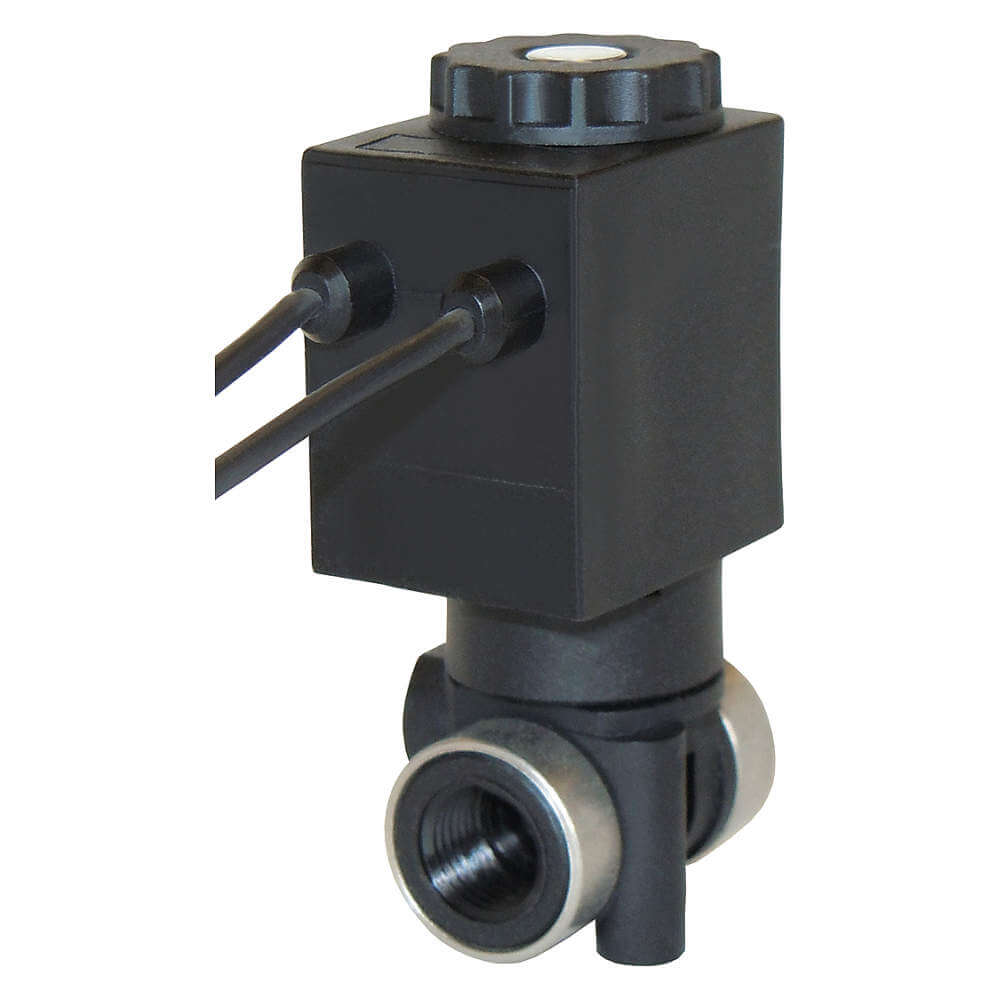

SPARTAN SCIENTIFIC 3827-E80-AA87B Solenoid Valve 1/8 Inch 120vac Epdm
Item: AF6RVKModel: 3827-E80-AA87BCross Ref: 20HM10
7 In Stock
Ships within 2 days via
10.00% off
€59.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | General Purpose |
| Body Material | Nylon |
| Class | Class F |
| Coefficient Of Volume | 0.31 |
| Coil Enclosure | Watertight, Dust Tight |
| Coil Insulation Class | F |
| Electrical Connection | Wire Leads |
| Environmental Rating - Valves | Outdoor |
| For Media | Air, Caustics, Light Oil, Water |
| Frequency | 60 Hz |
| Hz | 50/60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPT |
| Ip Rating | IP65 |
| Max. Ambient Temperature | 122°F |
| Max. Fluid Temp. | 194°F |
| Max. Fluid Temperature | 140°F |
| Max. Operating Pressure Differential - Air/inert Gas | 75 psi |
| Max. Operating Pressure Differential - Light Oil | 75 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 75 psi |
| Min. Ambient Temperature | 50°F |
| Min. Operating Pressure Differential | 0 psi |
| Nema Rating | NEMA 4 |
| Nominal Pipe Size | 1/8" |
| Operating Environment | Outdoor |
| Operation | Direct Acting |
| Operation Type | Direct Acting |
| Orifice Diameter | 1/8" |
| Outlet Connection Type | NPT |
| Overall Height | 2 13/32" |
| Overall Length | 1 3/32" |
| Overall Width | 1 3/32" |
| Pipe Size | 1/8" |
| Pipe Size - Valves | 1/8" |
| Safe Working Water Pressure | 75 psi |
| Seal Material | EPDM |
| Valve Body Style | Straight |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Ways | 2-Way |
| Voltage | 120V AC |
| Wattage | 6.5 W |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 7.3 |
| Ship length (cm) | 4.92 |
| Ship width (cm) | 3.18 |
| HS code | 8481200020 |
Product Variants
| Model | Voltage | Seal Material | Coefficient Of Volume | Orifice Dia. | Safe Working Water Pressure | Valve Configuration | Pipe Size | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3827-B60-AA86B | 24V AC | NBR | 0.17 | 0.078" | 200 psi | Normally Closed | 1/8" | Nylon | €55.83 | |
| 3827-B60-AA87B | 120V AC | NBR | 0.17 | 0.078" | 200 psi | Normally Closed | 1/8" | Nylon | €57.92 | |
| 3827-B60-AA82B | 12V DC | NBR | 0.17 | 5/64" | 200 psi | Normally Closed | 1/8" | Nylon | €55.83 | |
| 3827-B60-AA83B | 24V DC | NBR | 0.17 | 0.078" | 200 psi | Normally Closed | 1/8" | Nylon | €55.83 | |
| 3827-E60-AA86B | 24V AC | EPDM | 0.17 | 5/64" | 200 psi | Normally Closed | 1/8" | Nylon | €57.72 | |
| 3827-E60-AA87B | 120V AC | EPDM | 0.17 | 5/64" | 200 psi | Normally Closed | 1/8" | Nylon | €59.70 | |
| 3827-E60-AA82B | 12V DC | EPDM | 0.17 | 0.078" | 200 psi | Normally Closed | 1/8" | Nylon | €55.83 |
