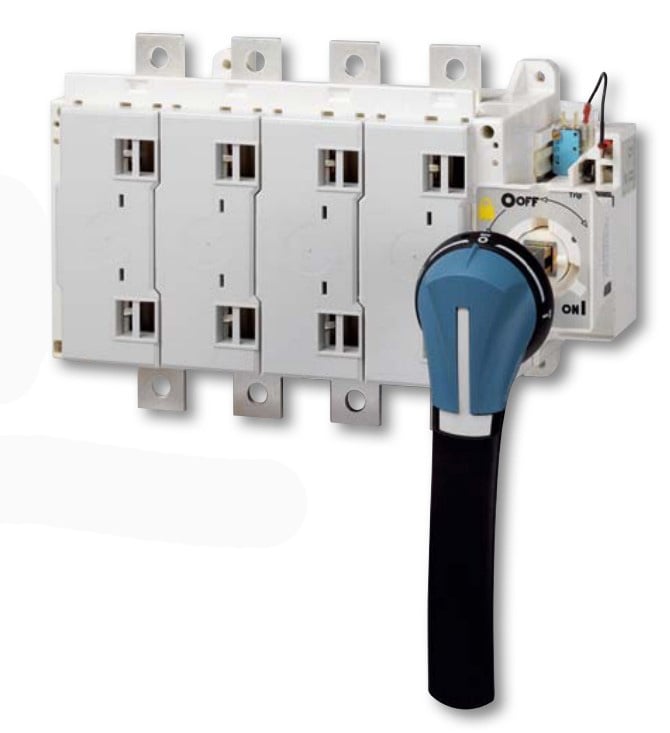

SOCOMEC 35003121 Load Break Switch, Tripping Function, 3 Poles, 1250 Amp, 690 VAC, Frontal Operation
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Break Switch |
| Amps | 1250A |
| Conditioned Rated Short Circuit Amps | 100 kA |
| Control Operator | Direct S3, External S3 |
| Degree Of Protection | IP20 |
| Depth | 256.5 mm |
| Device Construction | Built In Device Fixed Built In Technique |
| Electrical Connection Of Main Circuit Type | Bolt Connection |
| Frame Size | 3A |
| Interlockable | Yes |
| Length | 330 mm |
| Max. Rated Operation Voltage | 690V |
| Motor Drive Integrated | No |
| No. Of Poles | 3 |
| No. Of Switches | 1 |
| Product Datasheet | socomec-35003121.pdf |
| Rated Operating Voltage | 400-690V |
| Rated Operation Power @ Ac 23, 400v | 750 kW |
| Suitable For Distribution Board Installation | No |
| Suitable For Floor Mounting | No |
| Suitable For Front Mounting 4 Hole | Yes |
| Suitable For Front Mounting Centre | No |
| Suitable For Intermediate Mounting | Yes |
| Switching Power @ 400v | 750 kW |
| Type | Front Operation |
| Version As Emergency Stop Installation | Yes |
| Version As Main Switch | Yes |
| Version As Maintenance/service Switch | Yes |
| Version As Reversing Switch | No |
| Version As Safety Switch | Yes |
| Voltage | 690V AC |
| Width | 582 mm |
Shipping Info:
| Ship weight (kg) | 14.7 |
| Ship height (cm) | 80 |
| Ship length (cm) | 60 |
| Ship width (cm) | 60 |
| Country of Origin | FR |
Documentation:
