SOCOMEC SIDERMAT Series Disconnect Switches
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1| Style | Model | Amps | Type | No. Of Poles | Depth | Conditioned Rated Short Circuit Amps | Rated Operation Power @ Ac 23, 400v | Frame Size | Switching Power @ 400v | |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 35054180 | - | - | - | - | - | - | - | - | RFQ
|
| B | 35203063 | - | - | - | - | - | - | - | - | RFQ
|
| B | 35203080 | - | - | - | - | - | - | - | - | RFQ
|
| B | 35206080 | - | - | - | - | - | - | - | - | RFQ
|
| B | 35054161 | - | - | - | - | - | - | - | - | RFQ
|
| B | 35204180 | - | - | - | - | - | - | - | - | RFQ
|
| B | 35206063 | - | - | - | - | - | - | - | - | RFQ
|
| C | 35054081 | - | - | - | - | - | - | - | - | RFQ
|
| D | 35053026 | 250A | Lateral Right Operation | 3 | 279.5 mm | 120 kA | 140 kW | 1A | 140 kW | RFQ
|
| E | 35003026 | 250A | Front Operation | 3 | 248 mm | 100 kA | 140 kW | 1A | 140 kW | RFQ
|
| F | 35054026 | 250A | Lateral Right Operation | 4 | 279.5 mm | 100 kA | 140 kW | 1A | 140 kW | RFQ
|
| G | 35004026 | 250A | Front Operation | 4 | 248 mm | 100 kA | 140 kW | 1A | 140 kW | RFQ
|
| H | 35053041 | 400A | Lateral Right Operation | 3 | 279.5 mm | 100 kA | 220 kW | 1A | 220 kW | RFQ
|
| I | 35003041 | 400A | Front Operation | 3 | 248 mm | 100 kA | 220 kW | 1A | 220 kW | RFQ
|
| J | 35054041 | 400A | Lateral Right Operation | 4 | 279.5 mm | 100 kA | 220 kW | 1A | 220 kW | RFQ
|
| K | 35004041 | 400A | Front Operation | 4 | 248 mm | 100 kA | 220 kW | 1A | 220 kW | RFQ
|

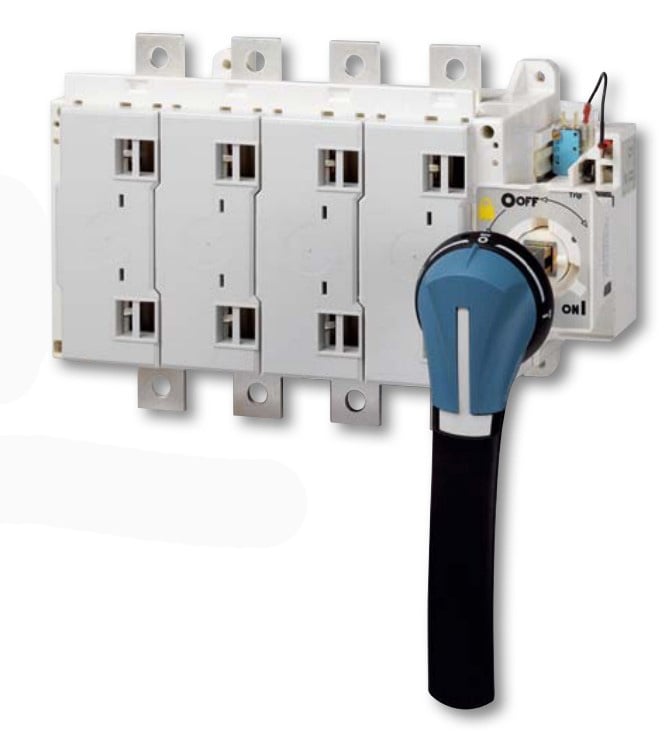

| L | 35053064 | 630A | Lateral Right Operation | 3 | 279.5 mm | 100 kA | 375 kW | 1B | 375 kW | RFQ
|
| M | 35004064 | 630A | Front Operation | 4 | 248 mm | 100 kA | 375 kW | 1B | 375 kW | RFQ
|
| N | 35003064 | 630A | Front Operation | 3 | 248 mm | 100 kA | 375 kW | 1B | 375 kW | RFQ
|
| O | 35054064 | 630A | Lateral Right Operation | 4 | 279.5 mm | 100 kA | 375 kW | 1B | 375 kW | RFQ
|
| P | 35053081 | 800A | Lateral Right Operation | 3 | 279.5 mm | 100 kA | 475 kW | 2 | 475 kW | RFQ
|
| Q | 35004081 | 800A | Front Operation | 4 | 262 mm | 100 kA | 475 kW | 2 | 475 kW | RFQ
|
| R | 35003081 | 800A | Front Operation | 3 | 262 mm | 100 kA | 475 kW | 2 | 475 kW | RFQ
|
| B | 35206120 | 1250A | I-0-Test | 4 | - | 100 kA | 560 kW | - | - | RFQ
|
| S | 35054121 | 1250A | Lateral Right Operation | 4 | 279.5 mm | 100 kA | 750 kW | 3A | 750 kW | RFQ
|
| T | 35003121 | 1250A | Front Operation | 3 | 256.5 mm | 100 kA | 750 kW | 3A | 750 kW | RFQ
|
| U | 35004121 | 1250A | Front Operation | 4 | 256.5 mm | 100 kA | 750 kW | 3A | 750 kW | RFQ
|
| B | 35203120 | 1250A | I-0-Test | 3 | - | 100 kA | 560 kW | - | - | RFQ
|
| V | 35053121 | 1250A | Lateral Right Operation | 3 | 279.5 mm | 100 kA | 750 kW | 3A | 750 kW | RFQ
|
| B | 35204160 | 1600A | I-0-Test | - | - | - | - | - | - | RFQ
|
| W | 35003161 | 1600A | Front Operation | 3 | 256.5 mm | 100 kA | 600 kW | 3B | 600 kW | RFQ
|
| B | 35203160 | 1600A | I-0-Test | 3 | - | - | - | - | - | RFQ
|
| B | 35206160 | 1600A | I-0-Test | 4 | - | - | - | - | - | RFQ
|
| X | 35004161 | 1600A | Front Operation | 4 | 256.5 mm | 120 kA | 600 kW | 3B | 600 kW | RFQ
|
| B | 35053161 | 1600A | Lateral Right Operation | 3 | 279.5 mm | 120 kA | 600 kW | 3B | 600 kW | RFQ
|
| Y | 35004180 | 1800A | Front Operation | 4 | 256.5 mm | 120 kA | 600 kW | 3C | 600 kW | RFQ
|
| Z | 35003180 | 1800A | Front Operation | 3 | 256.5 mm | 120 kA | 600 kW | 3C | 600 kW | RFQ
|
| A1 | 35053180 | 1800A | Lateral Right Operation | 3 | 279.5 mm | 120 kA | 600 kW | 3C | 600 kW | RFQ
|
| B | 35203180 | 1800A | I-0-Test | 3 | - | - | - | - | - | RFQ
|
