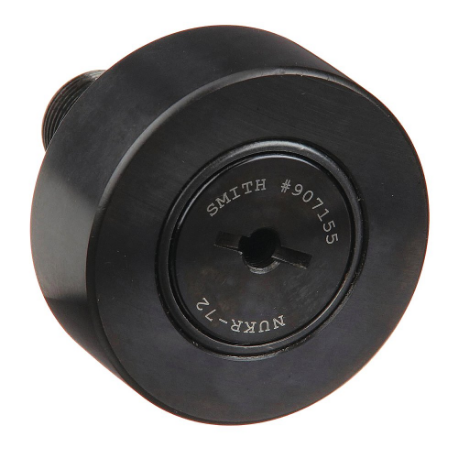

SMITH BEARING NUKR-72 Cam Follower, 72 mm Dia, Heavy, 2 Row, Dbl Shield, Screwdriver Slot, Crowned
Item: CU3BFRModel: NUKR-72Cross Ref: 40PK65
7 In Stock
Ships within 2 days via
€460.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cam Follower |
| Bearing Material | Alloy Steel |
| Bearing Material Grade | AISI 52100 |
| Bearing Type | Needle Roller |
| Closure | Double Shielded |
| Drive Location | Stud |
| Drive Type | Slotted |
| Duty Type | Heavy Duty |
| Dynamic Radial Load Capacity | 65000 lbf. |
| Face Design | Screwdriver Slot |
| Features | Made With A Double Row Of Heavy Rollers For Extremely High Load Applications. These Heavy Duty Bearings Are AssembLED With Metallic Side Shields Helping To Retain Grease And Keep Out Containments. |
| Max. Speed | 2100 RPM , 2100 RPM Grease |
| Max. Temp. | 250°F |
| Min. Temp. | -30°F |
| Overall Length | 80 mm |
| Roller Dia. | 72 mm |
| Roller Head Type | Crowned |
| Roller Material | Alloy, Steel |
| Roller Material Grade | Grade 52100 |
| Roller Width | 29 mm |
| Rolling Element Rows | 2 |
| Static Radial Load Capacity | 93000 lbf. |
| Stud Dia. | 24 mm |
| Stud Length | 49.5 mm |
| Stud Material | Carbon Steel |
| Stud Thread Length | 25 mm |
| Stud Thread Size | M24 x 1.5 |
| Stud Type | Concentric |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Roller Width | Roller Dia. | Dynamic Radial Load Capacity | Stud Dia. | Stud Length | Stud Thread Size | Stud Type | Face Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NUKR-30-B | 14 mm | 30 mm | 2990 lbf. | 12 mm | 25 mm | M12 x 1.5 | Concentric | Hex Socket | €209.36 | |
 |

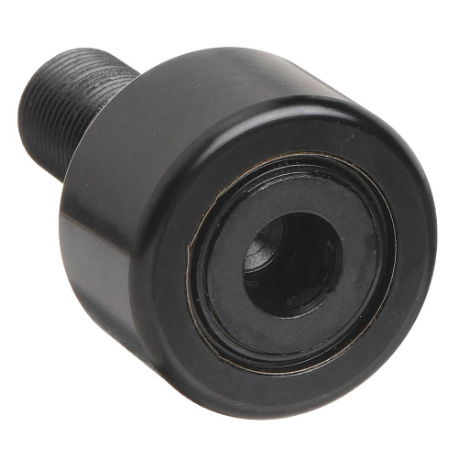

NUKR-30 | 14 mm | 30 mm | 2990 lbf. | 12 mm | 25 mm | M12 x 1.5 | Concentric | Screwdriver Slot | €209.45 | |
|
NUKR-30-C | 14 mm | 30 mm | 2990 lbf. | 12 mm | 25 mm | M12 x 1.5 | Concentric | Screwdriver Slot | €227.49 | |
|
NUKR-30-E | 14 mm | 30 mm | 2990 lbf. | 12 mm | 25 mm | M12 x 1.5 | Eccentric | Screwdriver Slot | €245.66 | |
 |

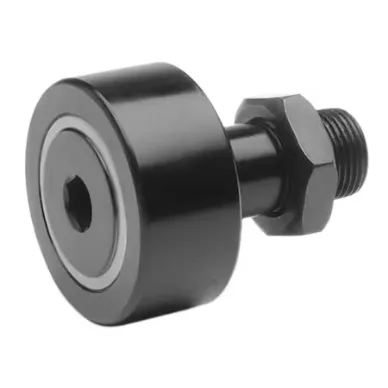

NUKR-35-B | 18 mm | 35 mm | 23000 lbf. | 16 mm | 32.5 mm | M16 x 1.5 | Concentric | Hex Socket | €219.07 | |
 |
NUKR-35 | 18 mm | 35 mm | 23000 lbf. | 16 mm | 32.5 mm | M16 x 1.5 | Concentric | Screwdriver Slot | €227.87 | |
|
NUKR-35-E | 18 mm | 35 mm | 23000 lbf. | 16 mm | 32.5 mm | M16 x 1.5 | Eccentric | Screwdriver Slot | €255.40 |
