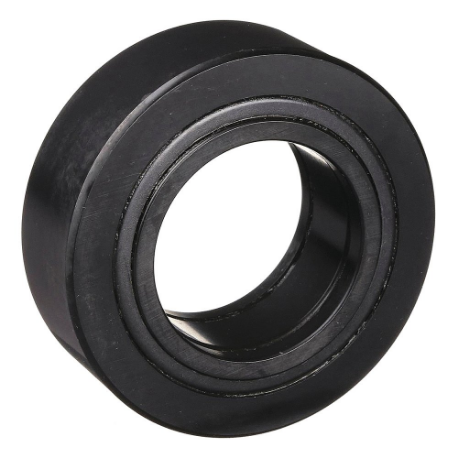

SMITH BEARING MUTD-30-D Yoke Roller, 62 mm Roller Dia, Heavy, 2 Row, Dbl Sealed, Crowned, Alloy Steel, ABMA
Item: CU3BLZModel: MUTD-30-DCross Ref: 40PL60
7 In Stock
62 mm
Crowned
30 mm
Ships within 2 days via
10.00% off
€152.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller |
| Bearing Material | Alloy Steel |
| Bearing Material Grade | Grade 52100 |
| Bearing Type | Needle Roller |
| Bore Dia. | 30 mm |
| Closure | Double Shielded |
| Duty Type | Heavy Duty |
| Dynamic Radial Load Capacity | 59000N |
| Features | Heavy Duty Bearings Are AssembLED With Metallic Side Shield |
| Max. Speed | 2600 RPM |
| Max. Temp. | 250°F |
| Min. Temp. | -30°F |
| Overall Length | 29 mm |
| Roller Dia. | 62 mm |
| Roller Head Type | Crowned |
| Roller Material | Alloy Steel |
| Roller Material Grade | Grade SAE 52100 |
| Roller Width | 28 mm |
| Rolling Element Rows | 2 |
| Self Lubricating Bearing | Yes |
| Standards | ABMA |
| Static Radial Load Capacity | 79000N |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.49 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Roller Head Type | Roller Dia. | Roller Width | Overall Length | Bore Dia. | Dynamic Radial Load Capacity | Max. Speed | Static Radial Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MUTD-45100-D | Crowned | 100 mm | 30 mm | 32 mm | 45 mm | 95000N | 1400 RPM | 147000N | €337.52 | |
|
MUTD-45100-SD | Flat | 100 mm | 30 mm | 32 mm | 45 mm | 95000N | 1400 RPM | 147000N | €337.52 | |
 |
MUTD-50110-D | Crowned | 110 mm | 30 mm | 32 mm | 50 mm | 100000N | 1300 RPM | 161000N | €402.54 | |
|
MUTD-15-SD | Flat | 35 mm | 18 mm | 19 mm | 15 mm | 23000N | 6500 RPM | 27000N | €107.97 | |
 |
MUTD-17-D | Crowned | 40 mm | 20 mm | 21 mm | 17 mm | 24800N | 5500 RPM | 31000N | €123.54 | |
|
MUTD-17-SD | Flat | 40 mm | 20 mm | 21 mm | 17 mm | 24800N | 5500 RPM | 31000N | €118.77 | |
 |
MUTD-1542-D | Crowned | 42 mm | 18 mm | 19 mm | 15 mm | 23000N | 6500 RPM | 27000N | €127.47 |
