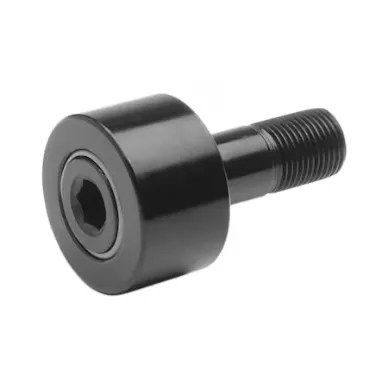

SMITH BEARING DCR-3-1/4 Cam Follower, 3 1/4 Inch Dia, Heavy, 2 Row, Dbl Sealed, Hex Socket, Flat
Item: CU3BFQModel: DCR-3-1/4Cross Ref: 40PK92
7 In Stock
3 1/4"
Flat
Ships within 2 days via
€458.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cam Follower |
| Additional Note2 | Available Unsealed Upon Request. |
| Bearing Material | Alloy Steel |
| Bearing Material Grade | AISI 52100 |
| Bearing Type | Needle Roller |
| Closure | Double Sealed |
| Drive Location | Stud |
| Drive Size | 5/8" |
| Drive Type | Hex Socket |
| Duty Type | Heavy Duty |
| Dynamic Radial Load Capacity | 29700 lbf. |
| Face Design | Hex Socket |
| Features | Designed With A Double Row Of Heavy Duty Rollers, Thicker Outer Rings And Special Full-Contact Seals |
| Hex Drive Size | 5/8" |
| Max. Temp. | 250°F |
| Min. Temp. | -30°F |
| Overall Length | 4 9/32" |
| Roller Dia. | 3 1/4" |
| Roller Head Type | Flat |
| Roller Material | Alloy, Steel |
| Roller Material Grade | Grade 52100 |
| Roller Width | 1 3/4" |
| Rolling Element Rows | 2 |
| Seal Material | Molded Acetyl |
| Seal Type | Contact |
| Static Radial Load Capacity | 40200 lbf. |
| Stud Dia. | 1 1/4" |
| Stud Length | 2 1/2" |
| Stud Material | Carbon Steel |
| Stud Thread Length | 1 1/4" |
| Stud Thread Size | 1 1/4"-12 |
| Stud Type | Concentric |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 2.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Roller Width | Roller Dia. | Dynamic Radial Load Capacity | Static Radial Load Capacity | Stud Dia. | Stud Length | Stud Thread Length | Stud Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DCR-1-1/2-C | 7/8" | 1 1/2" | 5660 lbf. | 6180 lbf. | 5/8" | 1 1/2" | 3/4" | 5/8"-18 | €113.59 | |
 |
DCR-1-1/2 | 7/8" | 1 1/2" | 5660 lbf. | 6180 lbf. | 5/8" | 1 1/2" | 3/4" | 5/8"-18 | €95.35 | |
 |
DCR-1-1/4-C | 3/4" | 1 1/4" | 4100 lbf. | 4300 lbf. | 1/2" | 1 1/4" | 5/8" | 1/2"-20 | €96.21 | |
 |
DCR-1-1/4 | 3/4" | 1 1/4" | 4100 lbf. | 4300 lbf. | 1/2" | 1 1/4" | 5/8" | 1/2"-20 | €77.95 | |
|
DCR-1-1/8-C | 5/8" | 1 1/8" | 3000 lbf. | 3200 lbf. | 7/16" | 1" | 1/2" | 7/16"-20 | €84.35 | |
|
DCR-1-1/8 | 5/8" | 1 1/8" | 3000 lbf. | 3200 lbf. | 7/16" | 1" | 1/2" | 7/16"-20 | €66.05 | |
|
DCR-1-3/4-C | 1" | 1 3/4" | 8400 lbf. | 10800 lbf. | 3/4" | 1 3/4" | 7/8" | 3/4"-16 | €137.40 |
